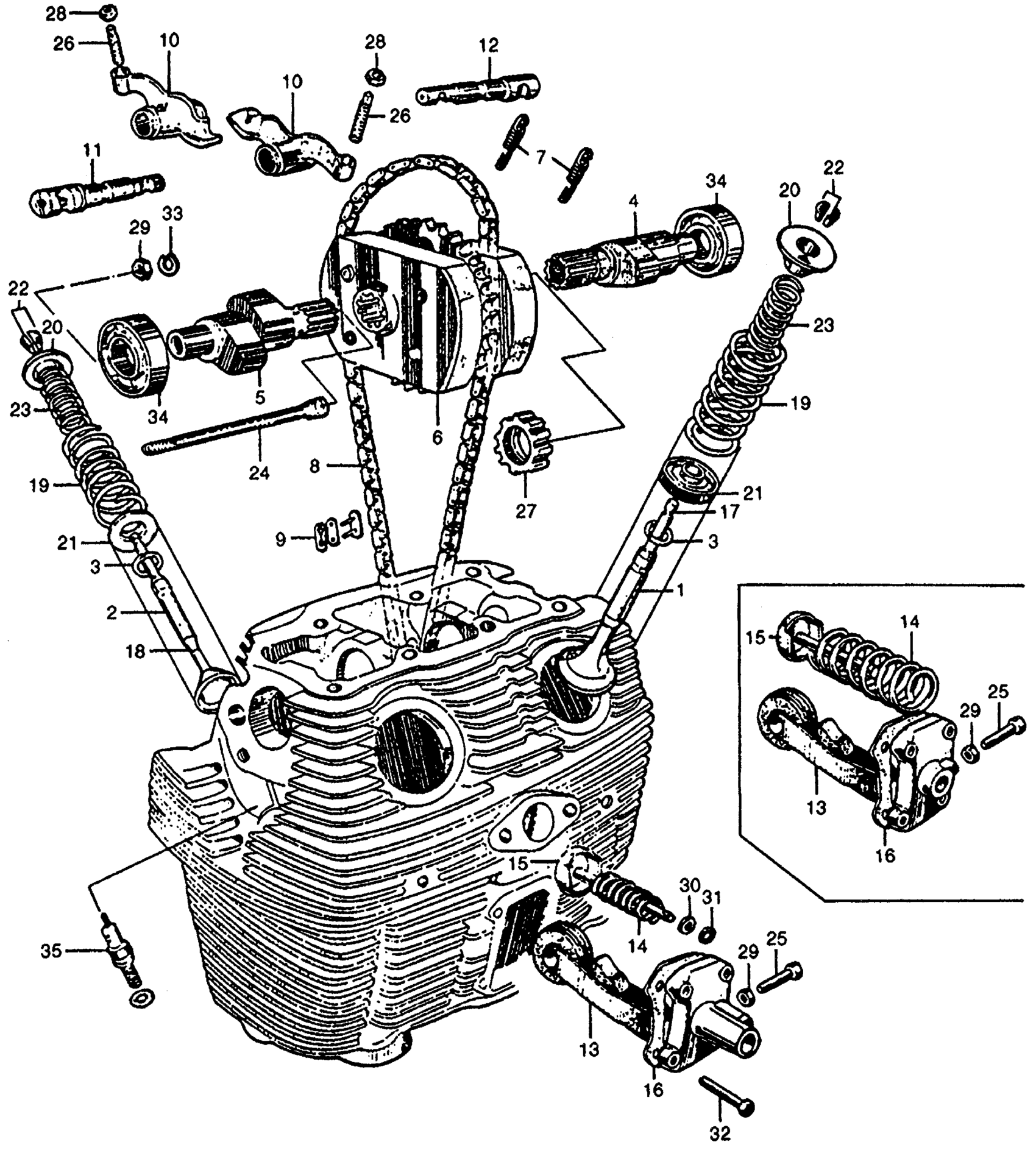

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 CAMSHAFT + VALVE + CAM CHAIN Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-268-000

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-259-000

Unavailable

3

CLIP, VALVE GUIDE

12211-250-310

$4.39

4

CAMSHAFT, R. (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

14111-268-030

Unavailable

5

CAMSHAFT, L. This part replaces 14121-268-050.

14121-268-060

Unavailable

5

CAMSHAFT, L.

14121-268-060

Unavailable

6

SPROCKET, CAM (NOT AVAILABLE)

14320-268-030

Unavailable

6

SPROCKET, CAM (NOT AVAILABLE) This part replaces 14320-268-040.

14320-268-030

Unavailable

7

SPRING, GOVERNOR (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

14329-268-320

Unavailable

8

CHAIN, CAM (DK219, 94L) (NOT AVAILABLE)

14401-259-000

Unavailable

8

CHAIN, CAM (DK219, 94L) (NOT AVAILABLE) This part replaces 14401-259-003.

14401-259-000

Unavailable

9

JOINT, CAM CHAIN (DK219)

14411-259-000

Unavailable

10

ARM, VALVE ROCKER

14431-268-305

Unavailable

11

PIN, IN. ROCKER ARM (NOT AVAILABLE)

14451-259-010

$105.15

12

PIN, EX. ROCKER ARM (NOT AVAILABLE)

14461-259-010

$105.15

13

TENSION, CAM CHAIN (NOT AVAILABLE) | Use from Engine SN 0100001 to 1050998

14500-268-010

Unavailable

13

TENSION, CAM CHAIN | Use from Engine SN 1050999

14500-268-020

Unavailable

14

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 0100001 to 1050998

14541-258-010

Unavailable

14

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 1050999

14541-259-000

Unavailable

15

BAR, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 0100001 to 1050998

14551-259-000

Unavailable

15

BAR, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 1050999

14551-259-010

Unavailable

16

GASKET | Use from Engine SN 0100001 to 1050998 This part replaces 14591-258-000.

14591-258-306

Unavailable

16

GASKET, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use from Engine SN 1050999

14591-259-000

Unavailable

17

VALVE, IN. (NOT AVAILABLE)

14711-268-010

Unavailable

18

VALVE, EX.

14721-268-000

Unavailable

19

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-265-010

$19.25

19

SPRING, VALVE (OUTER) (NOT AVAILABLE) | (Optional).

14751-268-810

$19.25

20

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-268-000

Unavailable

21

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-259-000

Unavailable

22

COTTER, VALVE

14781-253-010

Unavailable

23

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-265-010

$14.18

23

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-268-810

$16.59

24

BOLT, CAMSHAFT LOCKING

90008-268-010

Unavailable

25

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-259-000

Unavailable

26

SCREW, TAPPET ADJ. (NOT AVAILABLE)

90012-258-000

Unavailable

27

NUT, CAMSHAFT LOCKING (NOT AVAILABLE) | Use from Engine SN 0110001 to 0212680

90205-259-000

Unavailable

27

NUT, CAMSHAFT LOCKING | Use from Engine SN 0100001 to 0109755

90205-259-010

Unavailable

27

NUT, CAMSHAFT LOCKING | Use from Engine SN 0212681

90205-259-010

Unavailable

28

NUT, TAPPET ADJ.

90206-250-000

$2.94

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

WASHER (8MM) (NOT AVAILABLE) | Use from Engine SN 1050999 This part replaces 90445-259-000.

90443-844-000

$1.49

31

O-RING (7.4X2.4MM) (NOT AVAILABLE) | Use from Engine SN 1050999

91306-259-000

Unavailable

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

WASHER, SPRING (6MM)

94111-06000

$1.49

34

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

34

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

35

SPARK PLUG (C10H) (NGK) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0210300

98056-60410

Unavailable

35

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 0100001 to 0109755 This part replaces 98066-58714.

98066-58717

$2.44

35

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 0210301 This part replaces 98066-58714.

98066-58717

$2.44

35

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 0100001 to 0109755

98066-58717

$2.44

35

SPARK PLUG (D8HA) (NGK) | Use from Engine SN 0210301

98066-58717

$2.44
