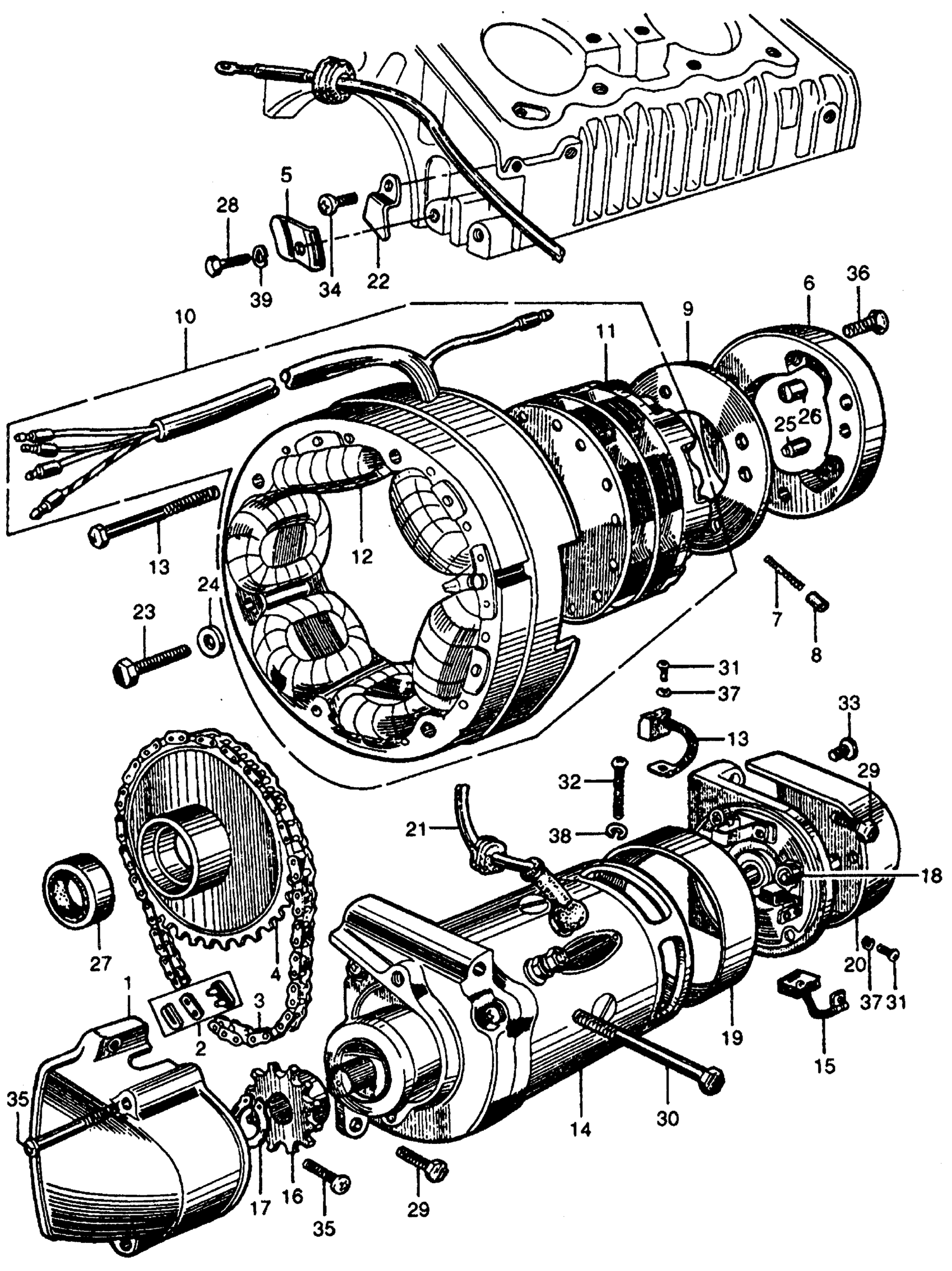

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 ALTERNATOR + STARTER MOTOR Diagram

#

Description
Price

1

COVER, STARTING SPROCKET (NOT AVAILABLE)

11641-253-000

Unavailable

2

JOINT, CAM CHAIN (DK219)

14411-259-000

Unavailable

3

CHAIN, STARTING (DK219, 58L) (NOT AVAILABLE)

28101-253-000

Unavailable

4

SPROCKET, STARTING (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

28110-259-010

Unavailable

5

STOPPER, STARTING SPROCKET (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

28116-259-000

Unavailable

5

STOPPER, STARTING SPROCKET (NOT AVAILABLE) | Use from Engine SN 1002745

28116-259-010

Unavailable

6

CLUTCH, STARTING (OUTER) (NOT AVAILABLE)

28121-259-000

Unavailable

7

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

8

CAP, STARTER CLUTCH ROLLER SPRING

28126-253-030

$4.53

9

PLATE, STARTER CLUTCH SIDE

28128-253-030

$6.08

10

ALTERNATOR ASSY. | Use from Engine SN 0100001 to 0109755

31100-268-020

Unavailable

10

ALTERNATOR ASSY. | Use from Engine SN 0110001 to 0402072

31100-268-020

Unavailable

10

ALTERNATOR ASSY. (NOT AVAILABLE) | Use from Engine SN 0402073

31100-268-810

Unavailable

11

ALTERNATOR ASSY. | Use from Engine SN 0110001 to 0402072

31100-268-020

Unavailable

11

ALTERNATOR ASSY. | Use from Engine SN 0110001 to 0402072 This part replaces 31101-268-003.

31100-268-020

Unavailable

11

ROTOR, ALTERNATOR | Use from Engine SN 0100001 to 0109755

31101-268-004

Unavailable

11

ROTOR, ALTERNATOR | Use from Engine SN 0110001 to 0402072

31101-268-004

Unavailable

11

ROTOR, ALTERNATOR | Use from Engine SN 0402073

31101-268-810

Unavailable

12

STATOR ASSY., ALTERNATOR (NOT AVAILABLE)

31102-268-003

Unavailable

12

STATOR ASSY., ALTERNATOR (NOT AVAILABLE)

31102-268-004

Unavailable

13

BOLT, ALTERNATOR STATOR SETTING (NOT AVAILABLE)

31106-268-004

Unavailable

14

MOTOR ASSY., STARTER (NOT AVAILABLE) This part replaces 31200-259-000.

31200-259-305

Unavailable

14

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-259-305

Unavailable

15

BRUSH, STARTER MOTOR CARBON (NOT AVAILABLE)

31201-253-003

Unavailable

15

BRUSH, STARTER MOTOR CARBON (NOT AVAILABLE)

31201-253-014

Unavailable

16

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-253-003

Unavailable

16

SPROCKET, STARTER MOTOR (NOT AVAILABLE) This part replaces 31202-253-004.

31202-253-003

Unavailable

17

CIRCLIP (OUTER) (13MM) This part replaces 31203-253-003.

94510-13000

$1.49

17

CIRCLIP (OUTER) (13MM) This part replaces 31203-253-004.

94510-13000

$1.49

17

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

18

SPRING, BRUSH (NOT AVAILABLE)

31204-253-014

Unavailable

19

COVER, COMMUTATOR (NOT AVAILABLE)

31207-253-003

Unavailable

19

COVER, COMMUTATOR (NOT AVAILABLE)

31207-253-014

Unavailable

20

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-253-003

Unavailable

21

CABLE, STARTER MOTOR (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

32401-259-000

Unavailable

22

CLAMP, STARTER MOTOR CABLE (NOT AVAILABLE)

32911-253-000

Unavailable

23

BOLT, ROTOR SETTING (NOT AVAILABLE)

90026-259-000

Unavailable

24

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-259-000

Unavailable

25

PIN, KNOCK (6X17.5) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

90704-259-000

Unavailable

26

ROLLER (10.2X11.5)

91101-377-000

$3.01

26

ROLLER (10.2X11.5) This part replaces 91103-259-000.

91101-377-000

$3.01

27

OIL SEAL (NOT AVAILABLE)

91208-259-000

Unavailable

28

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

29

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

30

BOLT, HEX. (6X70) This part replaces 92000-06070.

92101-06070-0A

$2.34

30

BOLT, HEX. (6X70) This part replaces 92000-06070-0A.

92101-06070-0A

$2.34

30

BOLT, HEX. (6X70)

92101-06070-0A

$2.34

31

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03005-0B.

93500-03006-0B

Unavailable

31

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03006.

93500-03006-0B

Unavailable

31

SCREW, PAN (3X6) (NOT AVAILABLE)

93500-03006-0B

Unavailable

31

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03006-02.

93500-03006-0B

Unavailable

32

SCREW, PAN (4X20) This part replaces 93500-04020.

93500-04020-0A

$1.49

32

SCREW, PAN (4X20)

93500-04020-0A

$1.49

33

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

33

SCREW, PAN (5X12)

93500-05012-0A

$1.49

34

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

34

SCREW, PAN (6X12)

93500-06012-0A

$1.49

34

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

35

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

35

SCREW, PAN (6X20)

93500-06020-0A

$1.49

36

SCREW, FLAT (6X25) This part replaces 93600-06025.

93600-06025-0A

Unavailable

36

SCREW, FLAT (6X25)

93600-06025-0A

Unavailable

37

WASHER, SPRING (3MM)

94111-03000

$1.49

38

WASHER, SPRING (4MM)

94111-04000

$1.49

39

WASHER, SPRING (6MM)

94111-06000

$1.49
