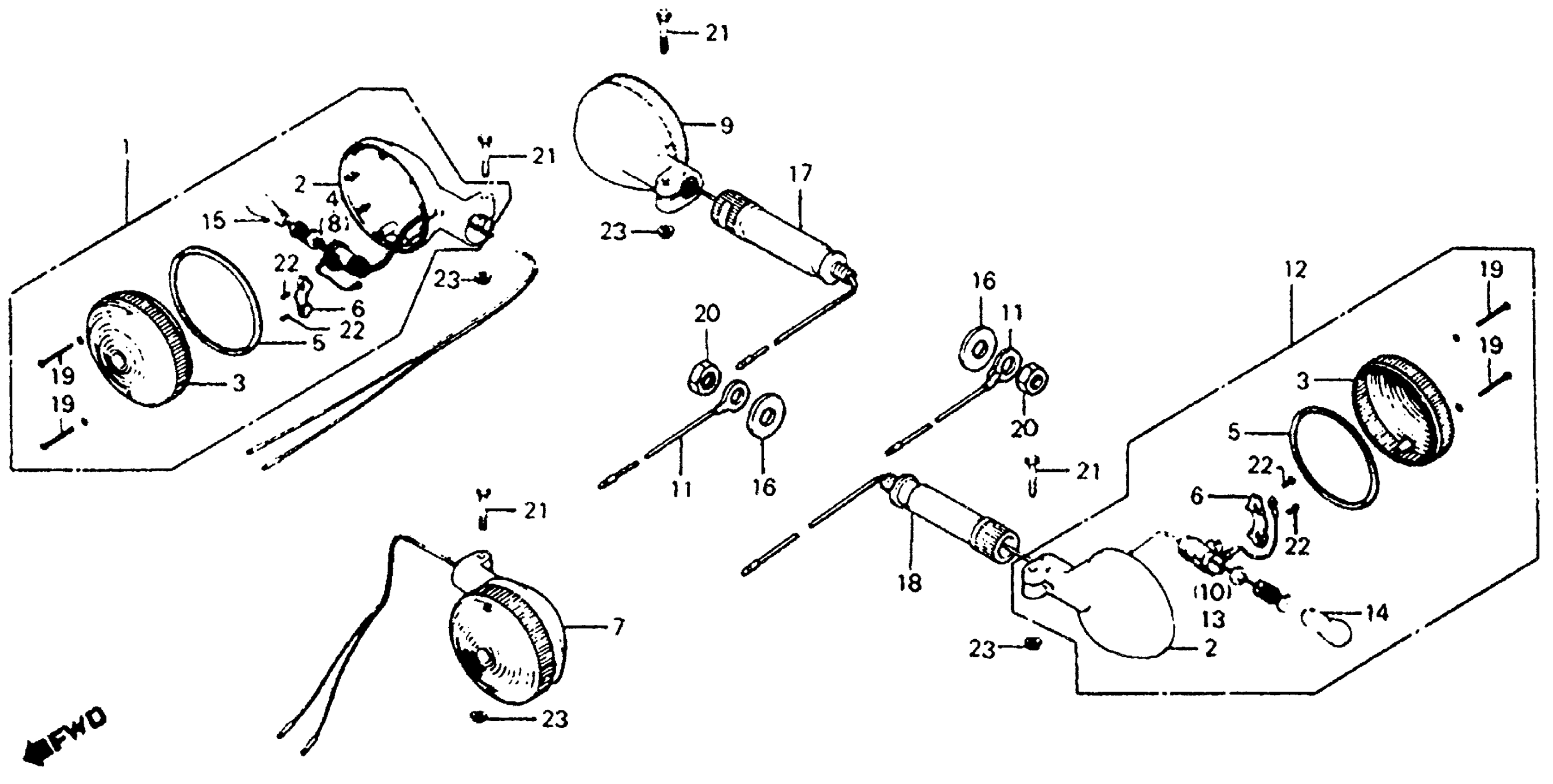

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR.

33400-460-671

$80.64

2

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

3

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

4

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

5

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

6

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

7

TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE)

33450-460-671

Unavailable

8

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

9

TURN SIGNAL, R. RR.

33600-377-671

Unavailable

10

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33605-377-671

Unavailable

11

WIRE, RR. TURN SIGNAL GROUND (NOT AVAILABLE)

33620-ME1-670

Unavailable

12

TURN SIGNAL ASSY., L. RR. (NOT AVAILABLE)

33650-377-671

Unavailable

13

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33655-377-671

Unavailable

14

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

15

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

16

WASHER, RR. TURN SIGNAL (NOT AVAILABLE)

90102-460-840

Unavailable

17

BOLT, R. RR. TURN SIGNAL

90155-ME1-670

Unavailable

18

BOLT, L. RR. TURN SIGNAL (NOT AVAILABLE)

90156-ME1-670

Unavailable

19

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

19

SCREW, PAN (4X25)

93500-04025-0A

$1.93

20

NUT, AXLE (10MM)

90304-GA6-003

$2.89

21

BOLT, HEX. (6X35) This part replaces 93000-06035-0B.

93101-06035-0B

Unavailable

21

BOLT, HEX. (6X35) This part replaces 93000-06035-02.

93101-06035-0B

Unavailable

21

BOLT, HEX. (6X35)

93101-06035-0B

Unavailable

22

SCREW, PAN (3X8)

93500-03008-0H

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49
