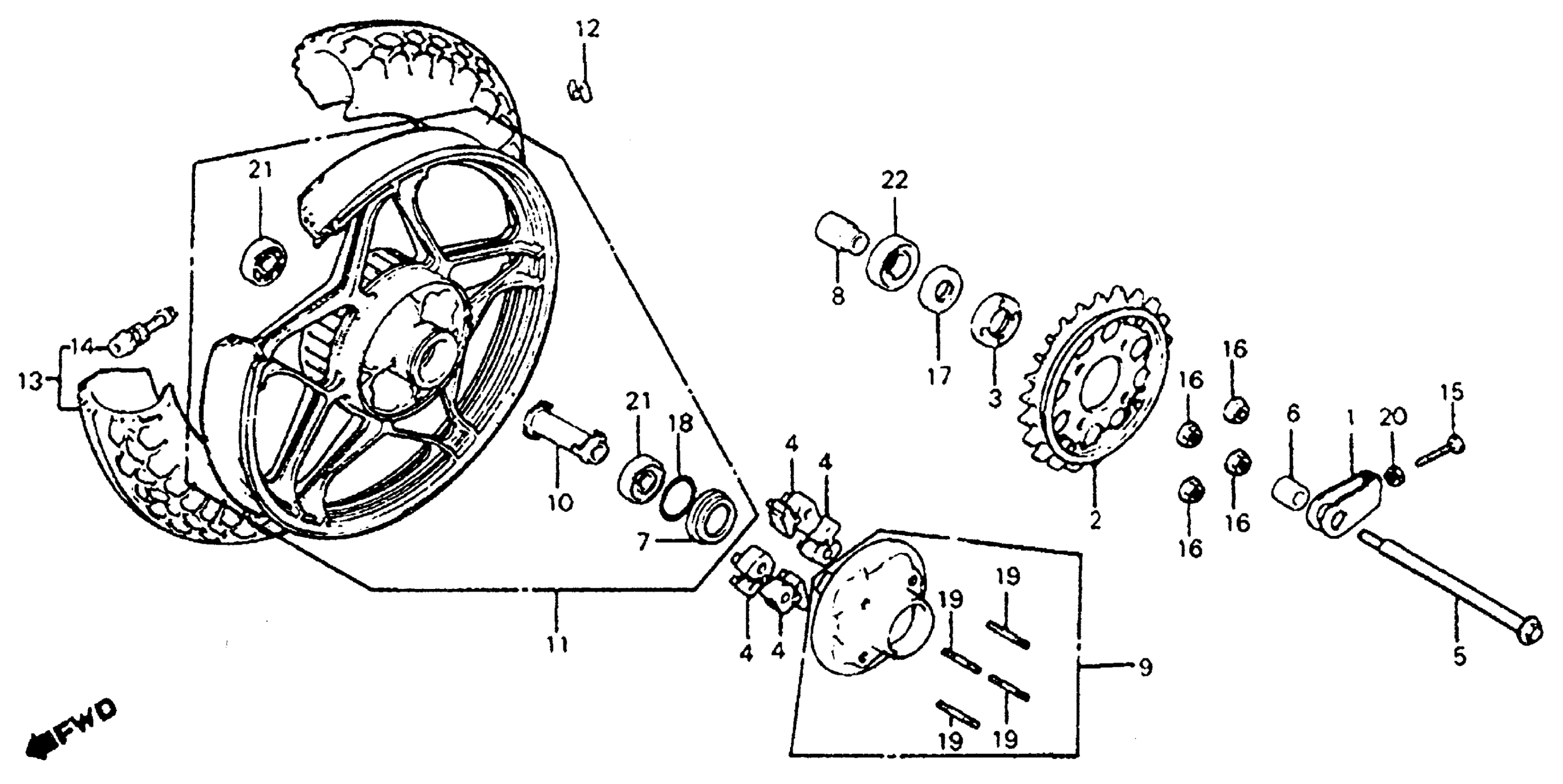

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-425-000

Unavailable

2

SPROCKET, FINAL DRIVEN

41200-MB6-630

Unavailable

2

SPROCKET, FINAL DRIVEN This part replaces 41200-ME1-670.

41200-MB6-630

Unavailable

3

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-422-000

Unavailable

4

DAMPER, RR. WHEEL

41241-422-000

Unavailable

5

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-393-000.

42301-425-870

Unavailable

5

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-425-870

Unavailable

6

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-425-870

Unavailable

6

COLLAR, RR. WHEEL SIDE This part replaces 42311-460-840.

42311-425-870

Unavailable

7

SLEEVE, RR. WHEEL HUB

42604-438-710

Unavailable

8

SLEEVE, RR. AXLE

42605-393-000

Unavailable

9

FLANGE, FINAL DRIVEN

42610-438-710

Unavailable

10

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-ME1-670

Unavailable

11

WHEEL, RR.

42650-ME1-670

Unavailable

12

WEIGHT, BALANCE (10G)

42704-ME1-670

Unavailable

12

WEIGHT, BALANCE (20G) (NOT AVAILABLE)

42705-ME1-670

Unavailable

12

WEIGHT, BALANCE (30G) (NOT AVAILABLE)

42706-ME1-670

Unavailable

13

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB4-672.

42710-MB4-773

Unavailable

13

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP)

42710-MB4-773

Unavailable

13

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-671.

42710-MB4-773

Unavailable

13

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-672.

42710-MB4-773

Unavailable

13

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MB9-673.

42710-MB4-773

Unavailable

13

TIRE ASSY., RR. (140/90-16) (71H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-ME1-672.

42710-MB4-773

Unavailable

14

VALVE, RIM (BS)

42753-425-003

$11.00

14

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

15

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

16

NUT, FLANGE (12MM)

90309-375-003

$8.61

17

OIL SEAL (34X55X9)

90753-283-000

$16.11

18

O-RING (66X3.6)

91258-438-711

Unavailable

19

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

20

NUT, HEX. (8MM)

94002-08000-0S

$1.49

21

BEARING, RADIAL BALL (6304UU)

96150-63040-10

$18.04

22

BEARING, RADIAL BALL (6305)

96150-63050-10

Unavailable
