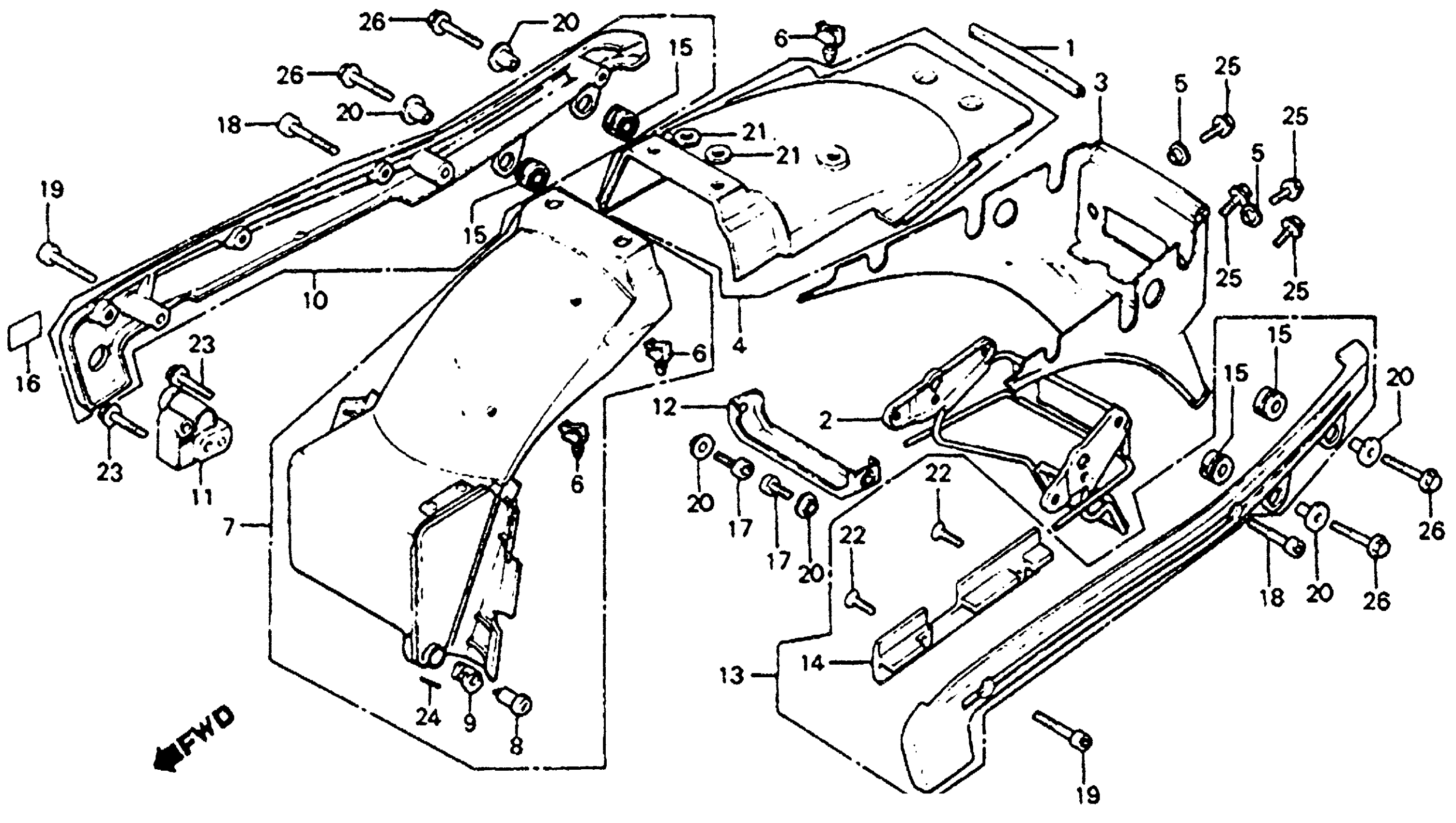

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 REAR FENDER Diagram

#

Description
Price

1

RUBBER A, RR. FENDER

80101-ME1-670

Unavailable

2

BRACKET A, RR. FENDER (NOT AVAILABLE)

80102-ME1-670

Unavailable

3

FENDER A, RR. *NH105* (MAT BLACK) (NOT AVAILABLE)

80103-ME1-670ZA

Unavailable

4

FENDER C, RR.

80105-ME1-670

Unavailable

5

WASHER, FENDER MOUNT (NOT AVAILABLE)

80108-460-840

Unavailable

6

CLAMP, CABLE

80110-147-000

$2.64

7

FENDER ASSY. B, RR. (NOT AVAILABLE)

80120-438-000

Unavailable

8

BODY, KEY

83507-438-000

Unavailable

9

STOPPER, KEY BODY

83508-KBG-000

$2.90

9

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

10

BAR ASSY., RR. GRIP

84100-ME1-670

Unavailable

11

HOLDER ASSY., HELMET (NOT AVAILABLE)

84102-ME1-671

Unavailable

12

JOINT PLATE, RR. GRIP (NOT AVAILABLE)

84110-ME1-670

Unavailable

13

BAR, L. RR. GRIP

84200-ME1-670

Unavailable

14

PLATE, RR. GRIP (NOT AVAILABLE)

84201-ME1-670

Unavailable

15

CUSHION, RR. FENDER (NOT AVAILABLE)

84703-ME1-670

Unavailable

16

LABEL, HELMET HOLDER

87511-323-670

$2.72

17

BOLT, SOCKET (6X12) (NOT AVAILABLE)

90105-460-000

Unavailable

18

BOLT, HEX. SOCKET (8X40) (NOT AVAILABLE)

90186-ME1-670

Unavailable

19

BOLT, HEX. SOCKET (8X48) (NOT AVAILABLE)

90187-ME1-670

Unavailable

20

COLLAR (6X17) (NOT AVAILABLE)

90501-ME1-670

Unavailable

21

WASHER (6X20)

90512-300-000

$3.08

22

SCREW, OVAL (5X16)

93700-05016-0G

$1.49

22

SCREW, OVAL (5X16) This part replaces 93700-05016-1G.

93700-05016-0G

$1.49

23

SCREW-WASHER (6X32) (NOT AVAILABLE)

93893-06032-07

Unavailable

24

PIN, SPRING (2X14)

94305-20141

$1.49

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

26

BOLT, FLANGE (6X28) This part replaces 95700-06028-07.

95701-06028-07

$1.49

26

BOLT, FLANGE (6X28)

95701-06028-07

$1.49
