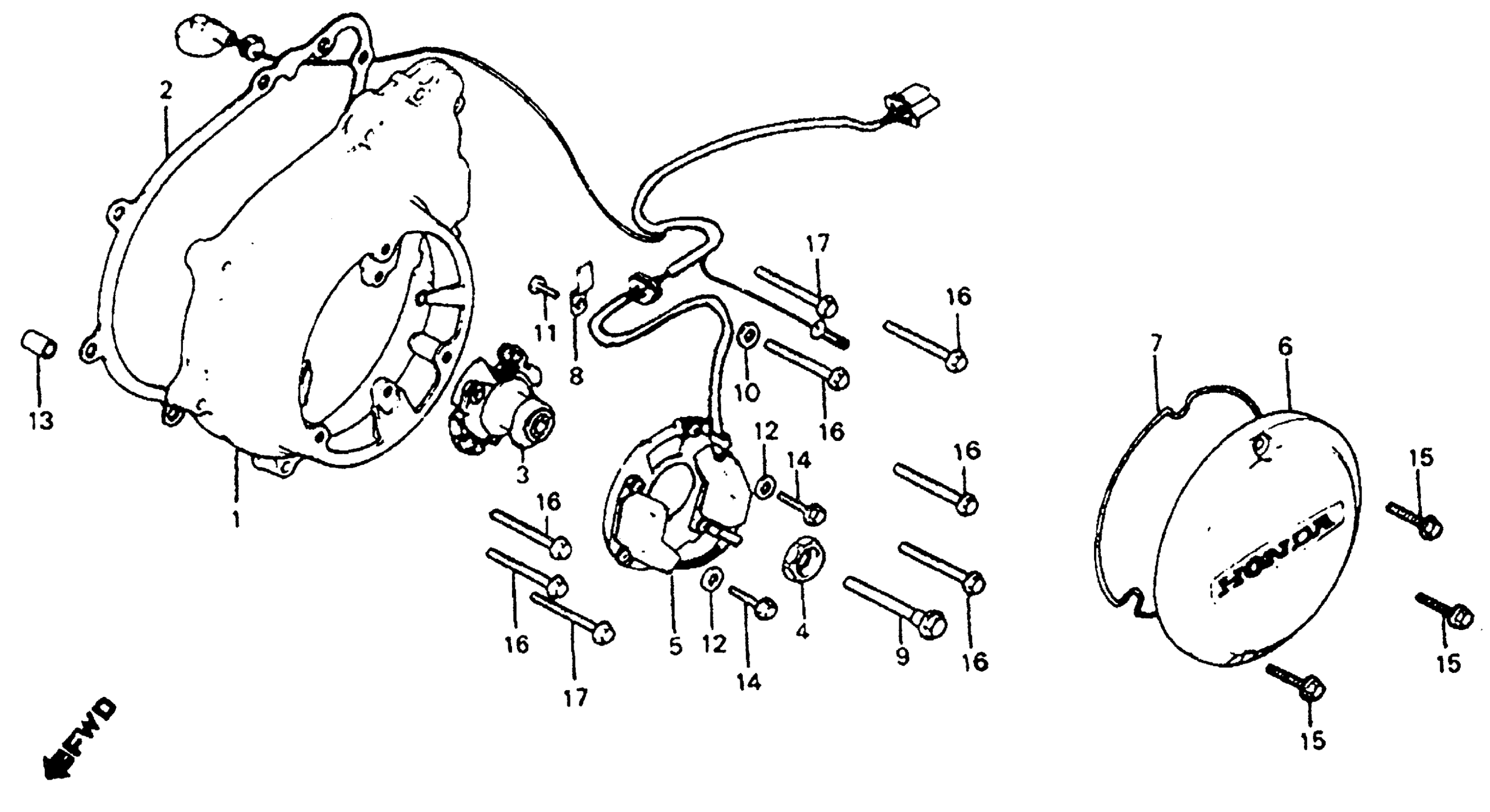

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 LEFT CRANKCASE COVER + SPARK ADVANCER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11341-461-750.

11341-438-670

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-425-000.

11395-425-306

$14.62

2

GASKET, L. CRANKCASE COVER

11395-425-306

$14.62

3

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-425-174

Unavailable

4

BOSS, TIMING (NOT AVAILABLE)

30228-425-010

Unavailable

5

GENERATOR, PULSE This part replaces 30300-MA3-154.

30300-461-405

Unavailable

5

GENERATOR, PULSE This part replaces 30300-438-154.

30300-461-405

Unavailable

5

GENERATOR, PULSE

30300-461-405

Unavailable

6

COVER, POINT (NOT AVAILABLE)

30371-ME1-670

Unavailable

7

GASKET, POINTS COVER (NOT AVAILABLE)

30372-ME1-670

Unavailable

8

PLATE, PULSER WIRE SETTING (NOT AVAILABLE)

32116-425-000

Unavailable

9

BOLT, FLANGE (8X60) (NOT AVAILABLE)

90052-MA3-000

Unavailable

10

WASHER, THRUST (11MM)

90425-300-000

$2.66

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

14

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

14

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

15

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

15

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

16

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

16

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

17

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

17

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
