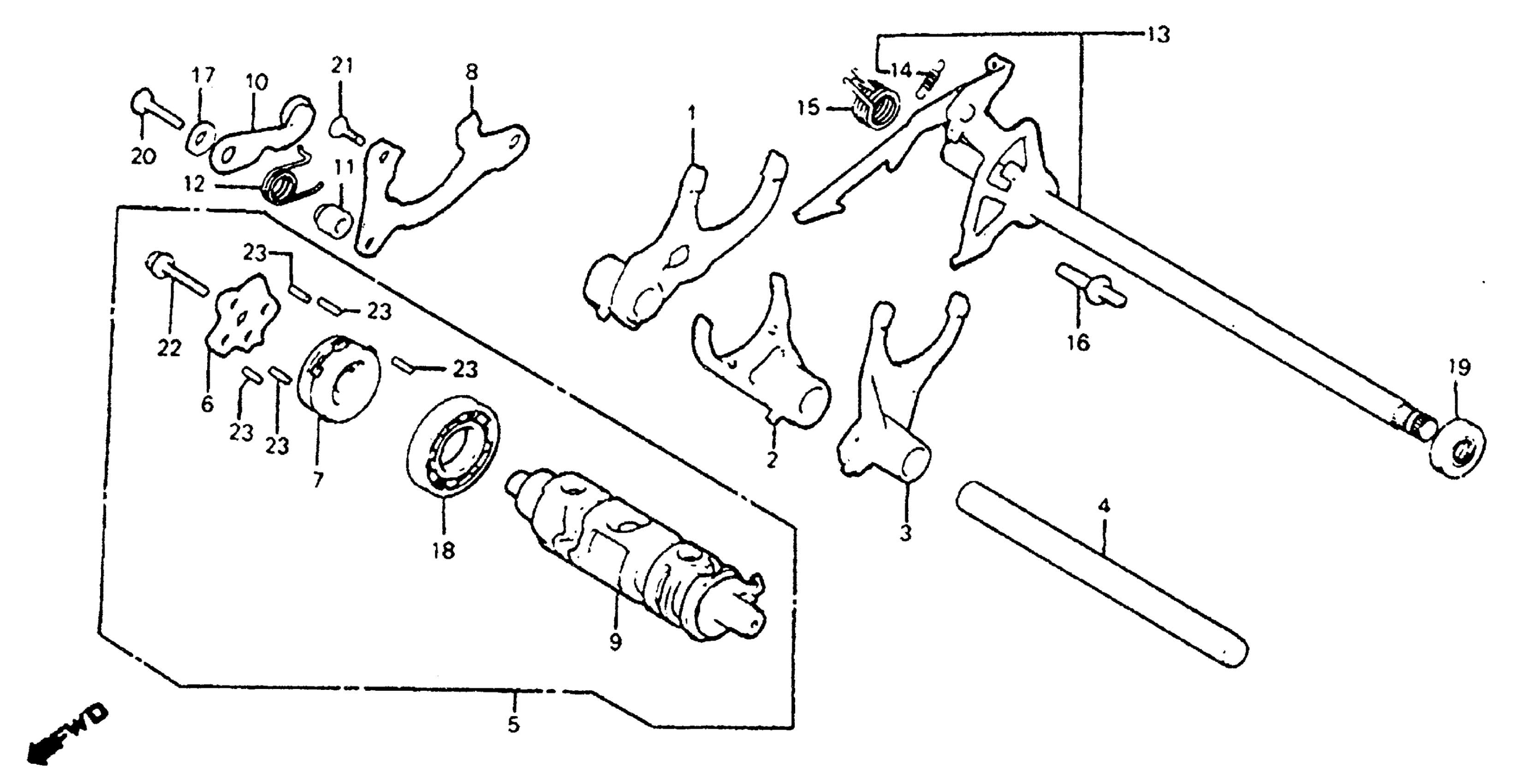

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-425-010.

24211-MG5-670

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE) This part replaces 24221-425-010.

24221-MG1-670

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE) This part replaces 24231-425-000.

24231-438-670

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-425-000

Unavailable

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE)

24300-425-030

Unavailable

6

PLATE, GEARSHIFT DRUM CAM

24303-425-310

Unavailable

7

CENTER, GEARSHIFT DRUM (NOT AVAILABLE)

24304-425-300

Unavailable

8

PLATE, GEARSHIFT DRUM SETTING (NOT AVAILABLE)

24307-425-000

Unavailable

9

DRUM, GEARSHIFT (NOT AVAILABLE)

24310-425-000

Unavailable

10

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-413-000

Unavailable

11

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24432-425-000

Unavailable

12

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-425-000

Unavailable

13

SPINDLE, GEARSHIFT (NOT AVAILABLE) This part replaces 24610-425-000.

24610-425-010

Unavailable

13

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-425-010

Unavailable

14

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-425-000

Unavailable

15

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-425-000

Unavailable

16

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

17

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

18

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

19

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

20

BOLT, HEX. (6X28) (NOT AVAILABLE)

92200-06028

Unavailable

21

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

21

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

22

BOLT, FLANGE (6X25)

95725-06025-00

Unavailable

23

ROLLER (4X11.8)

96220-40118

$1.49
