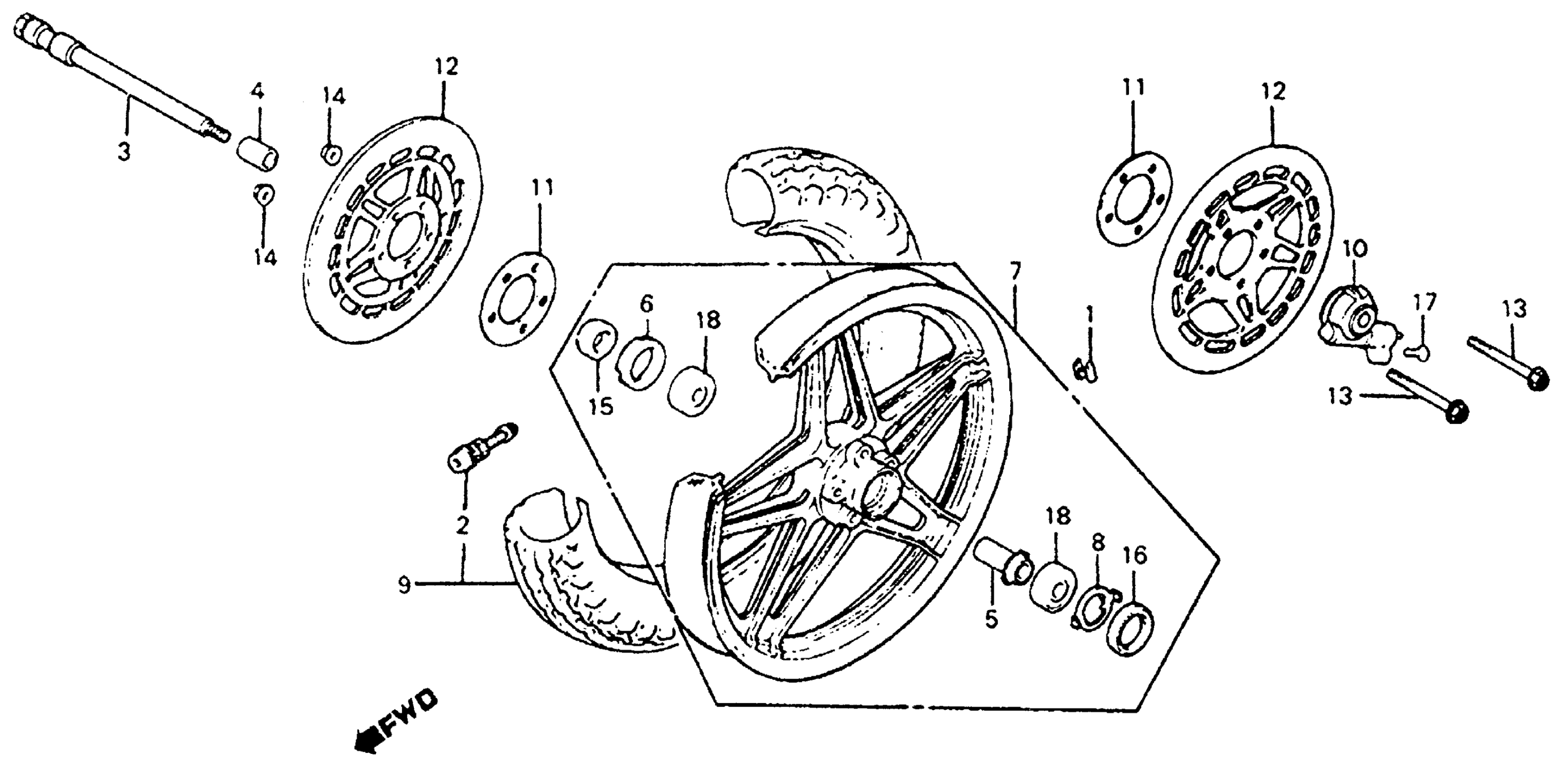

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G)

42704-ME1-670

Unavailable

WEIGHT, BALANCE (20G) (NOT AVAILABLE)

42705-ME1-670

Unavailable

WEIGHT, BALANCE (30G) (NOT AVAILABLE)

42706-ME1-670

Unavailable

VALVE, RIM (BS)

42753-425-003

$11.00

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

AXLE, FR. WHEEL

44301-461-770

Unavailable

COLLAR, FR. WHEEL SIDE

44311-460-840

Unavailable

COLLAR, FR. WHEEL DISTANCE (NOT AVAILABLE)

44620-ME1-670

Unavailable

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

WHEEL, FR. (NOT AVAILABLE)

44650-ME1-670

Unavailable

RETAINER, GEAR BOX

44680-410-000

$5.80

TIRE ASSY., FR. (120/90-18) (65H) (DUNLOP) This part replaces 44710-MB9-671.

44710-MB9-673

Unavailable

TIRE ASSY., FR. (120/90-18) (65H) (DUNLOP) This part replaces 44710-MB9-672.

44710-MB9-673

Unavailable

TIRE ASSY., FR. (120/90-18) (65H) (DUNLOP)

44710-MB9-673

Unavailable

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-ME1-671

Unavailable

SHIM, DAMPING (NOT AVAILABLE) This part replaces 45128-MC7-000.

45128-445-630

Unavailable

DISK, FR. BRAKE (NOT AVAILABLE)

45251-413-941

Unavailable

BOLT, FLANGE (8X104) This part replaces 90105-460-840.

90113-GY8-900

Unavailable

BOLT, FLANGE (8X104)

90113-GY8-900

Unavailable

NUT, FLANGE (8MM)

90308-460-841

$3.43

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
