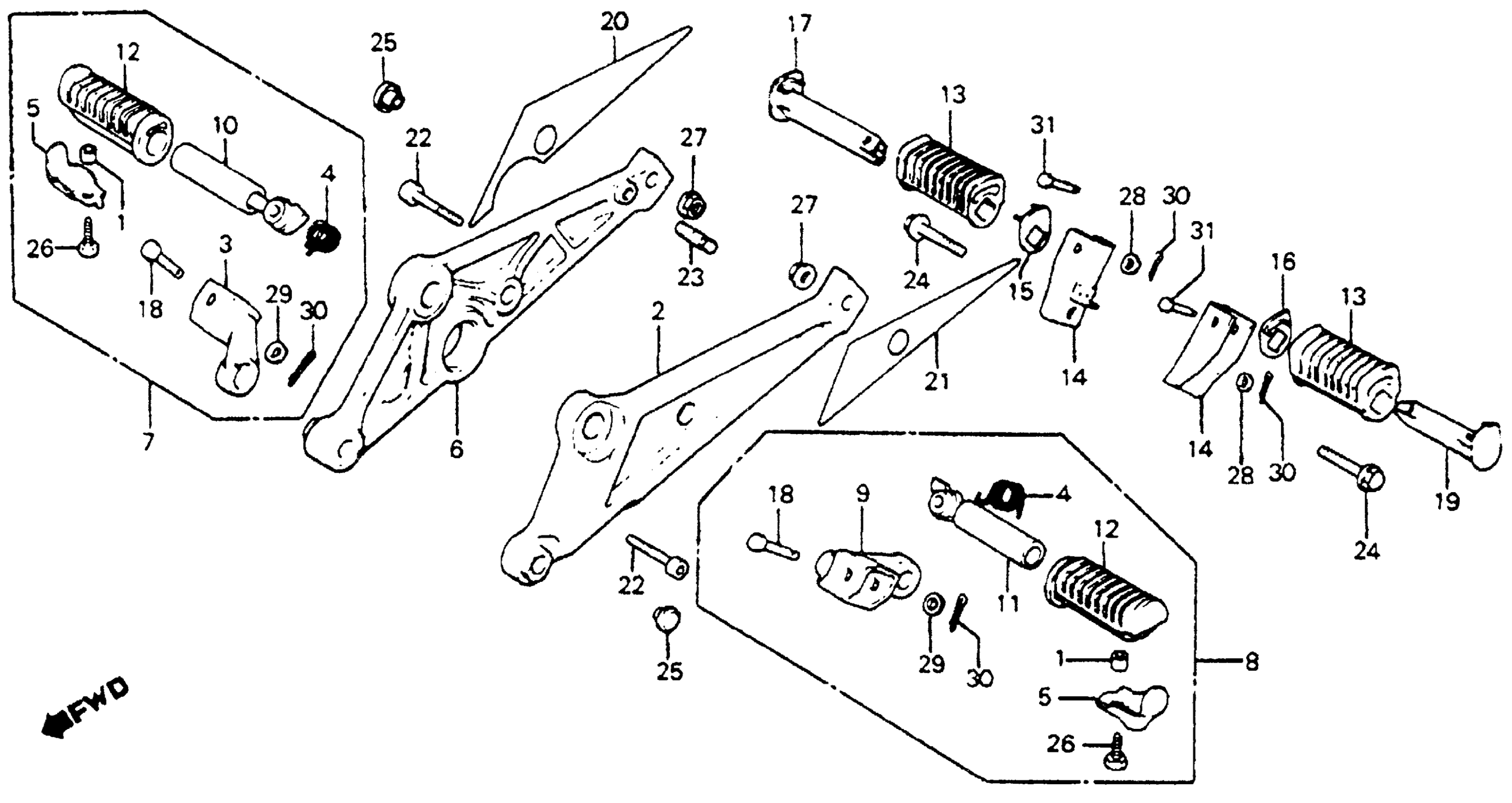

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 FOOTPEGS Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

HOLDER, L. FOOTPEG (NOT AVAILABLE)

50610-ME1-670

Unavailable

3

BAR, R. FOOTPEG (NOT AVAILABLE)

50615-ME1-670

Unavailable

4

SPRING, FOOTPEG RETURN (NOT AVAILABLE)

50617-ME1-670

Unavailable

5

STOPPER, STEP RUBBER

50619-KC2-770

Unavailable

5

STOPPER, STEP RUBBER This part replaces 50619-460-840.

50619-KC2-770

Unavailable

6

HOLDER, R. FOOTPEG

50620-ME1-670

Unavailable

7

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50630-ME1-670

Unavailable

8

FOOTPEG ASSY., L. MAIN

50640-ME1-670

Unavailable

9

BAR, L. FOOTPEG

50641-ME1-670

Unavailable

10

ARM, R. FOOTPEG (NOT AVAILABLE)

50642-ME1-670

Unavailable

11

ARM, L. FOOTPEG (NOT AVAILABLE)

50650-ME1-670

Unavailable

12

RUBBER, FOOTPEG

50661-425-670

$13.34

13

RUBBER, PILLION STEP (COO) This part replaces 50710-461-770.

50710-461-305

$12.78

14

BRACKET, PILLION (NOT AVAILABLE)

50711-ME1-670

Unavailable

15

WASHER, R. PILLION FOOTPEG

50712-438-730

$5.56

16

WASHER, L. PILLION FOOTPEG

50713-438-730

$5.56

17

BAR, R. PILLION FOOTPEG (NOT AVAILABLE)

50715-460-840

Unavailable

18

PIN, FOOTPEG BAR JOINT (NOT AVAILABLE)

50716-445-000

Unavailable

19

BAR, L. PILLION FOOTPEG (NOT AVAILABLE)

50718-460-840

Unavailable

20

LABEL, MUFFLER CAUTION (NOT AVAILABLE)

87504-ME1-670

Unavailable

21

MARK, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-ME1-670

Unavailable

22

BOLT, SOCKET (10X20) (NOT AVAILABLE)

90109-ME1-670

Unavailable

23

BOLT, RR. BRAKE SPRING (NOT AVAILABLE)

90117-426-000

Unavailable

24

BOLT, SPECIAL FLANGE (10X40) (NOT AVAILABLE)

90182-438-000

Unavailable

25

CAP, SOCKET BOLT (10MM)

91456-ME1-670

$3.47

26

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

26

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

26

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

26

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

27

NUT, FLANGE (10MM)

94050-10000

$1.59

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (8MM)

94101-08200

$1.49

30

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

30

PIN, COTTER (1.6X25)

94201-16250

$1.49

31

PIN A, PILLION STEP

95015-81000

$2.21
