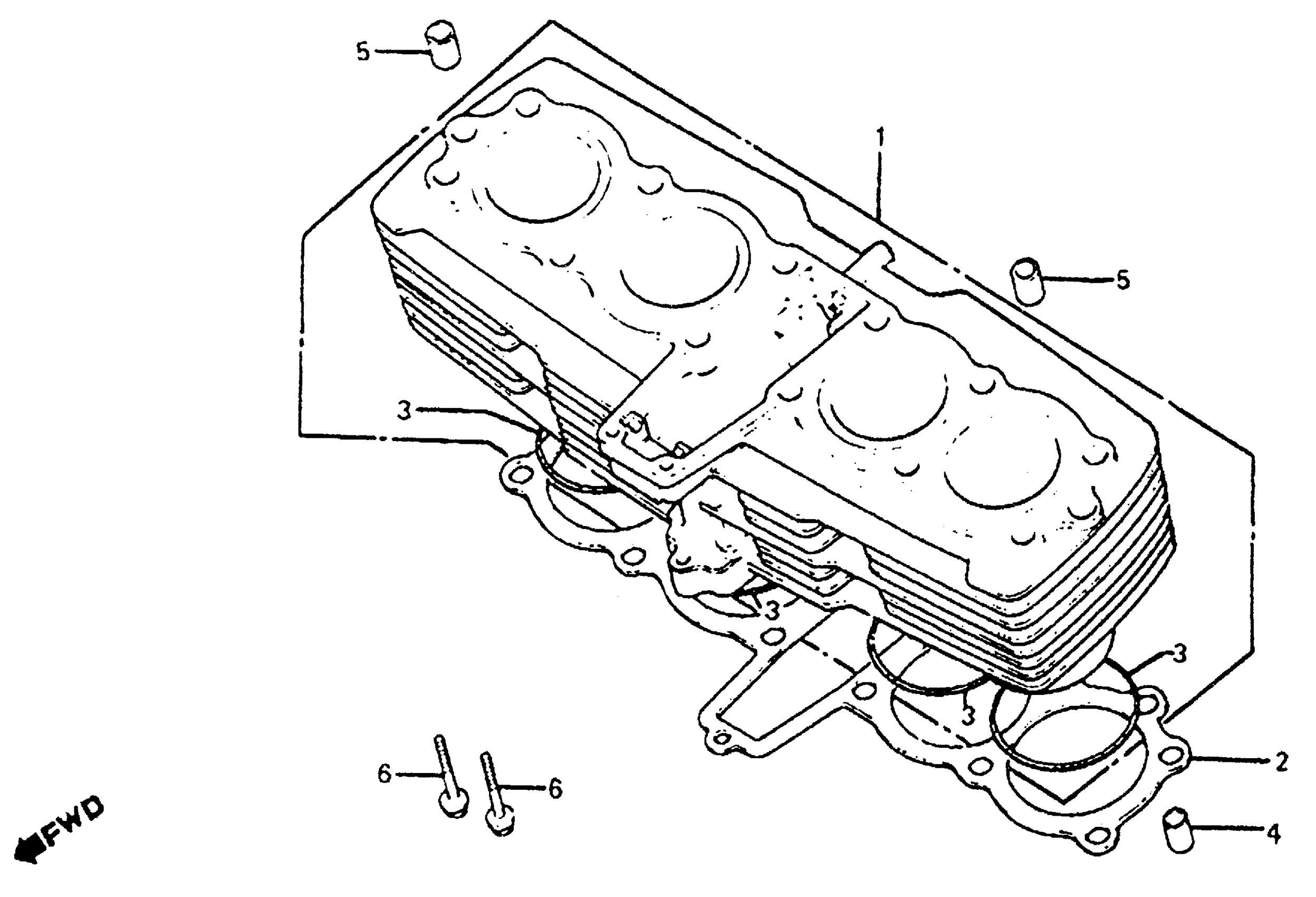

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-MA5-770

Unavailable

2

GASKET, CYLINDER This part replaces 12191-425-010.

12191-425-306

Unavailable

2

GASKET, CYLINDER

12191-425-306

Unavailable

3

O-RING (66.8X2)

91302-425-000

$6.29

4

PIN A, DOWEL (10X16)

94301-10160

$2.24

5

PIN A, DOWEL (12X20)

94301-12200

$2.25

6

BOLT, FLANGE (6X32) This part replaces 95700-06032-07.

95701-06032-07

$0.91

6

BOLT, FLANGE (6X32)

95701-06032-07

$0.91
