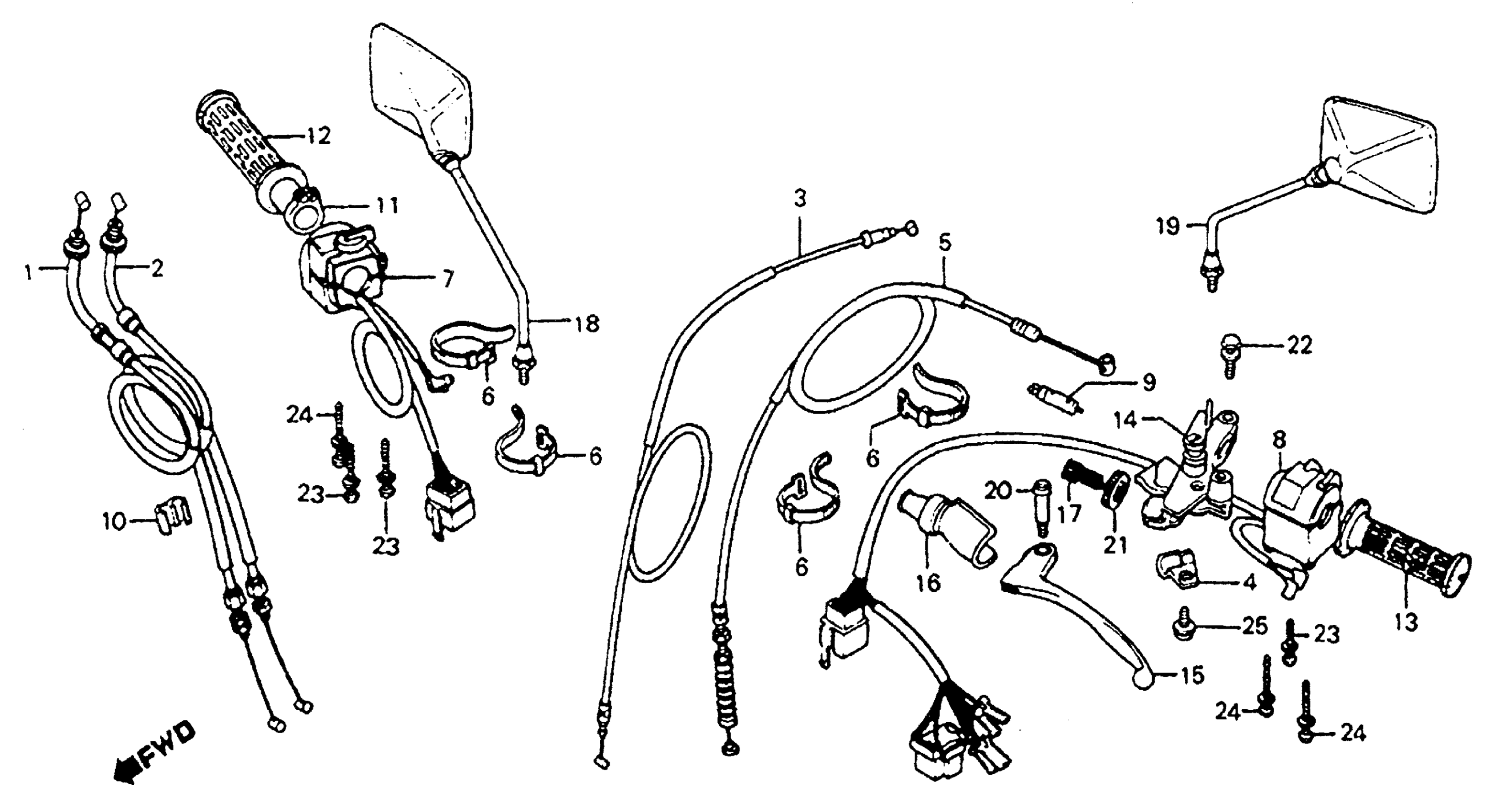

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE This part replaces 17910-425-030.

17910-425-405

Unavailable

1

CABLE A, THROTTLE

17910-425-405

Unavailable

2

CABLE B, THROTTLE

17920-425-030

Unavailable

3

CABLE, CHOKE (NOT AVAILABLE)

17950-ME1-670

Unavailable

4

HOLDER, CHOKE CABLE (NOT AVAILABLE)

17963-422-000

Unavailable

5

CABLE, CLUTCH

22870-ME1-670

Unavailable

6

BAND B1, CABLE

32161-404-000

$2.23

7

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE) This part replaces 35130-ME1-670.

35130-MA1-670

Unavailable

8

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-ME1-670

Unavailable

9

SWITCH, FR. LEVER

35330-413-003

$21.91

10

CLIP, CABLE (NOT AVAILABLE)

46465-422-000

Unavailable

11

PIPE, THROTTLE GRIP

53141-300-010

$20.93

12

GRIP, R. HANDLEBAR

53165-390-780

$10.88

13

GRIP, L. HANDLEBAR

53166-390-780

$10.88

14

BRACKET ASSY., CONTROL LEVER

53170-MA2-000

Unavailable

15

LEVER, L. HANDLEBAR

53178-MA6-000

$15.60

15

LEVER, L. HANDLEBAR This part replaces 53178-MC3-700.

53178-MA6-000

$15.60

15

LEVER, L. HANDLEBAR This part replaces 53178-422-020.

53178-MA6-000

$15.60

16

BOOT, HANDLEBAR

53180-422-020

Unavailable

17

BOLT, CABLE ADJUSTING

53192-422-000

Unavailable

18

MIRROR, R. (NOT AVAILABLE)

88110-ME1-670

Unavailable

19

MIRROR, L. (NOT AVAILABLE)

88120-ME1-670

Unavailable

20

BOLT, L. HANDLEBAR PIVOT

90113-438-000

$7.58

21

NUT, FIXING

90321-422-000

Unavailable

22

BOLT-WASHER (6X25)

93401-06025-07

Unavailable

22

BOLT-WASHER (6X25) This part replaces 93481-06025-07.

93401-06025-07

Unavailable

23

SCREW-WASHER (5X30)

93891-05030-07

$1.49

24

SCREW-WASHER (5X45)

93891-05045-07

$1.49

25

SCREW-WASHER (5X18) (NOT AVAILABLE)

93893-05018-07

Unavailable
