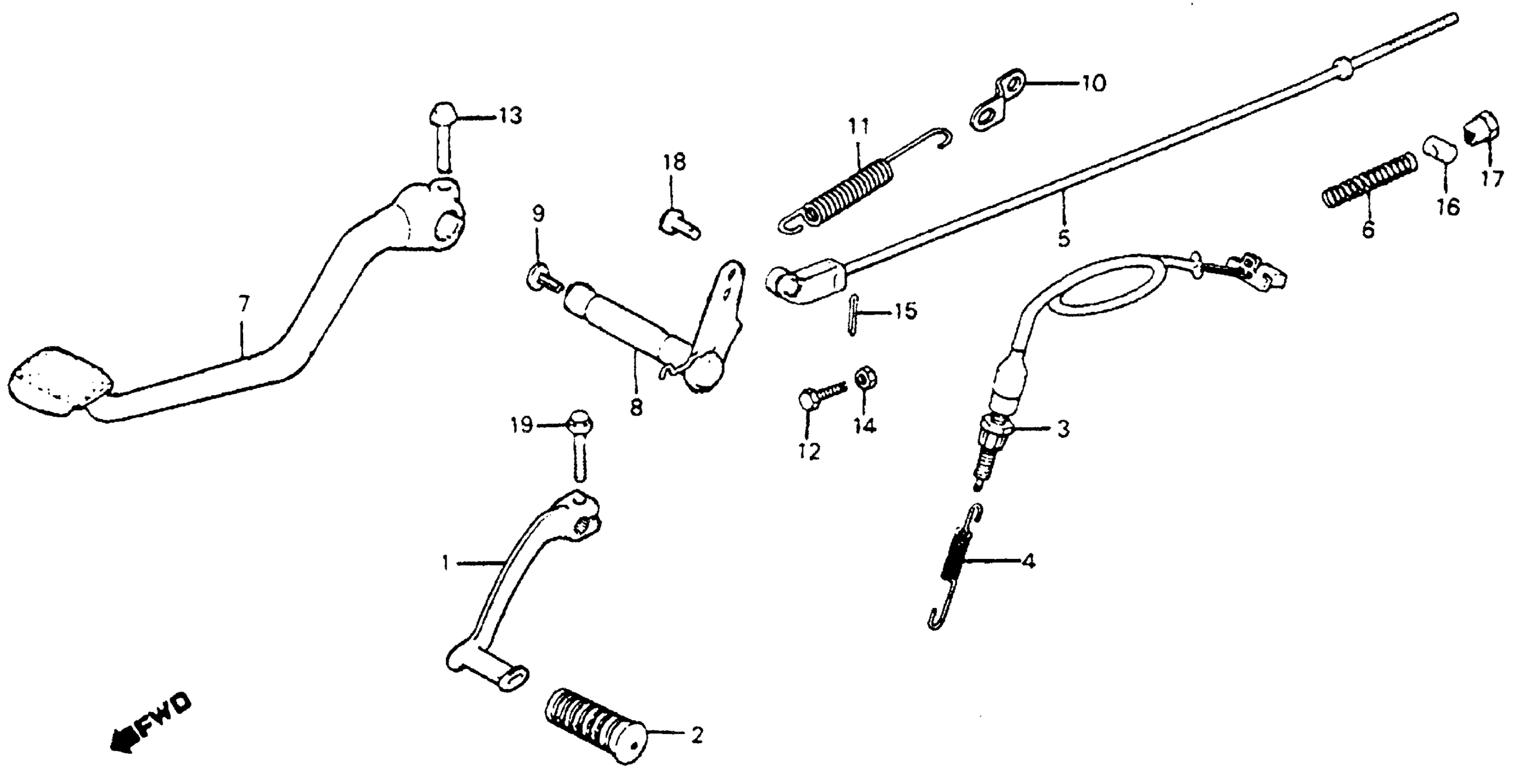

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-ME1-670

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

SWITCH ASSY., RR. STOP This part replaces 35350-438-000.

35350-KA2-405

$16.22

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-ME1-670

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43450-425-000

Unavailable

SPRING, BRAKE ROD

43472-460-840

Unavailable

PEDAL, RR. BRAKE

46500-ME1-670

Unavailable

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-ME1-670

Unavailable

CAP, RR. BRAKE SPINDLE (NOT AVAILABLE)

46511-460-840

Unavailable

PLATE, BRAKE SPRING STOPPER (NOT AVAILABLE)

46513-ME1-670

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-425-010

$4.90

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

BOLT, HEX. (6X40)

92140-06040

Unavailable

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20) This part replaces 96000-06020-02.

96001-06020-02

$1.49

BOLT, FLANGE (6X20)

96001-06020-02

$1.49
