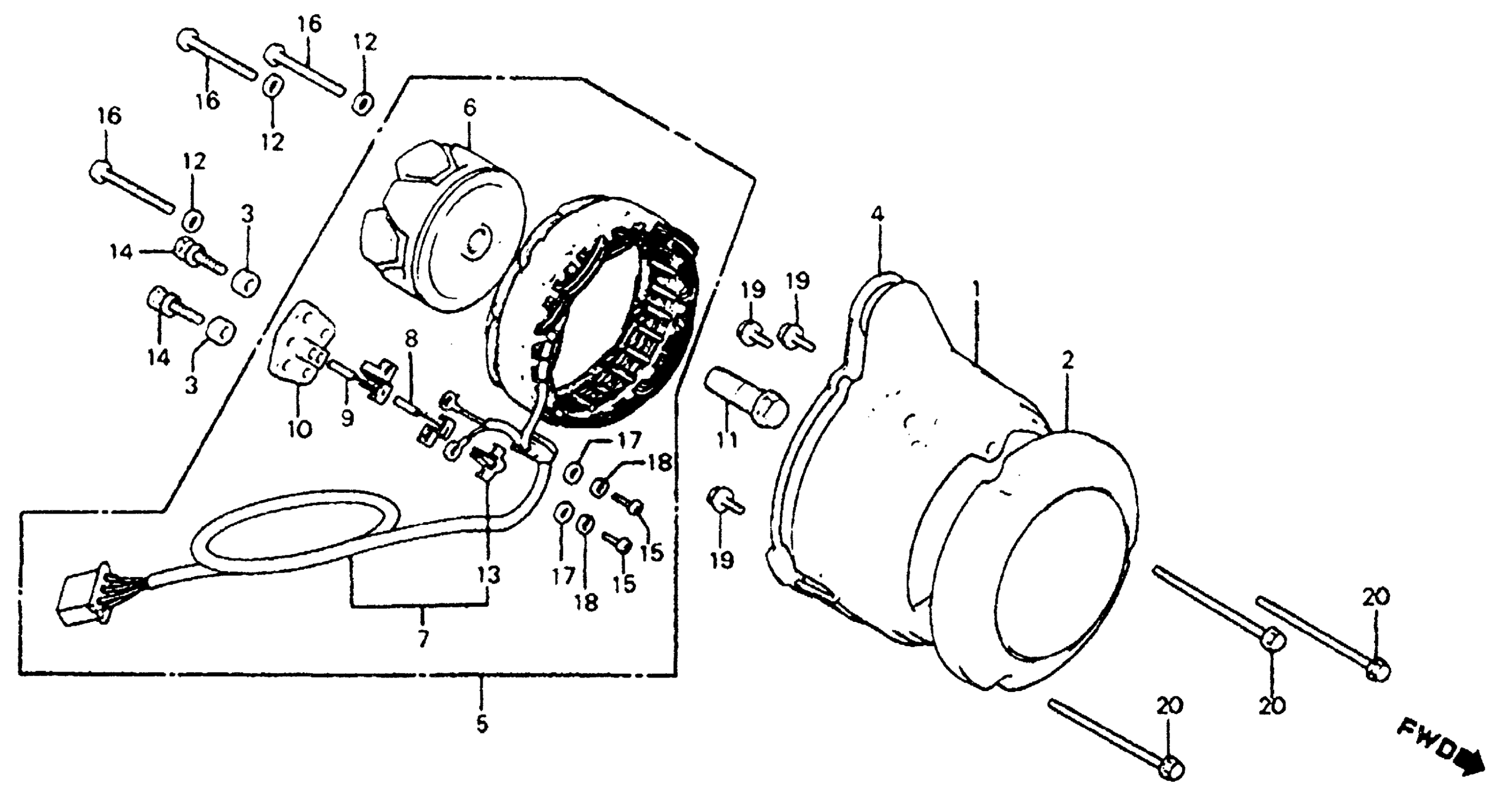

Honda CB750SCA (83) NIGHTHAWK 750, JPN, VIN# JH2RC012-DM100001 TO JH2RC012-DM102116 ALTERNATOR Diagram

#

Description
Price

1

COVER, ALTERNATOR (NOT AVAILABLE)

11631-ME1-670

Unavailable

2

COVER, ALTERNATOR (UPPER) (NOT AVAILABLE)

11632-ME1-670

Unavailable

3

SPACER, ALTERNATOR COVER (UPPER) (NOT AVAILABLE)

11634-ME1-670

Unavailable

4

GASKET, ALTERNATOR COVER This part replaces 11691-425-010.

11691-425-306

Unavailable

4

GASKET, ALTERNATOR COVER

11691-425-306

Unavailable

5

ALTERNATOR ASSY. This part replaces 31100-425-871.

31100-425-852

Unavailable

6

ROTOR This part replaces 31110-425-005.

31110-426-832

Unavailable

6

ROTOR

31110-426-832

Unavailable

7

STATOR

31120-425-852

Unavailable

7

STATOR This part replaces 31120-425-871.

31120-425-852

Unavailable

8

BRUSH A

31124-MG5-000

Unavailable

8

BRUSH A This part replaces 31124-422-005.

31124-MG5-000

Unavailable

9

BRUSH B

31125-MG5-005

Unavailable

9

BRUSH B This part replaces 31125-422-005.

31125-MG5-005

Unavailable

10

BASE, BRUSH

31126-422-015

Unavailable

11

BOLT, FLANGE (12X40) (NOT AVAILABLE)

90023-425-000

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 90563-304-000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94102-06000.

94101-06800

$1.49

13

CLIP, CABLE (6MM)

90659-170-000

$5.53

14

BOLT-WASHER (6X20)

93402-06020-08

$1.69

14

BOLT-WASHER (6X20) This part replaces 93492-06020-08.

93402-06020-08

$1.69

15

SCREW, PAN (4X12)

93500-04012-0H

$1.49

16

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

16

SCREW, PAN (6X45)

93500-06045-0A

$1.49

17

WASHER, PLAIN (4MM)

94101-04800

$1.49

18

WASHER, SPRING (4MM)

94111-04800

$1.49

19

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

19

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

20

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

20

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
