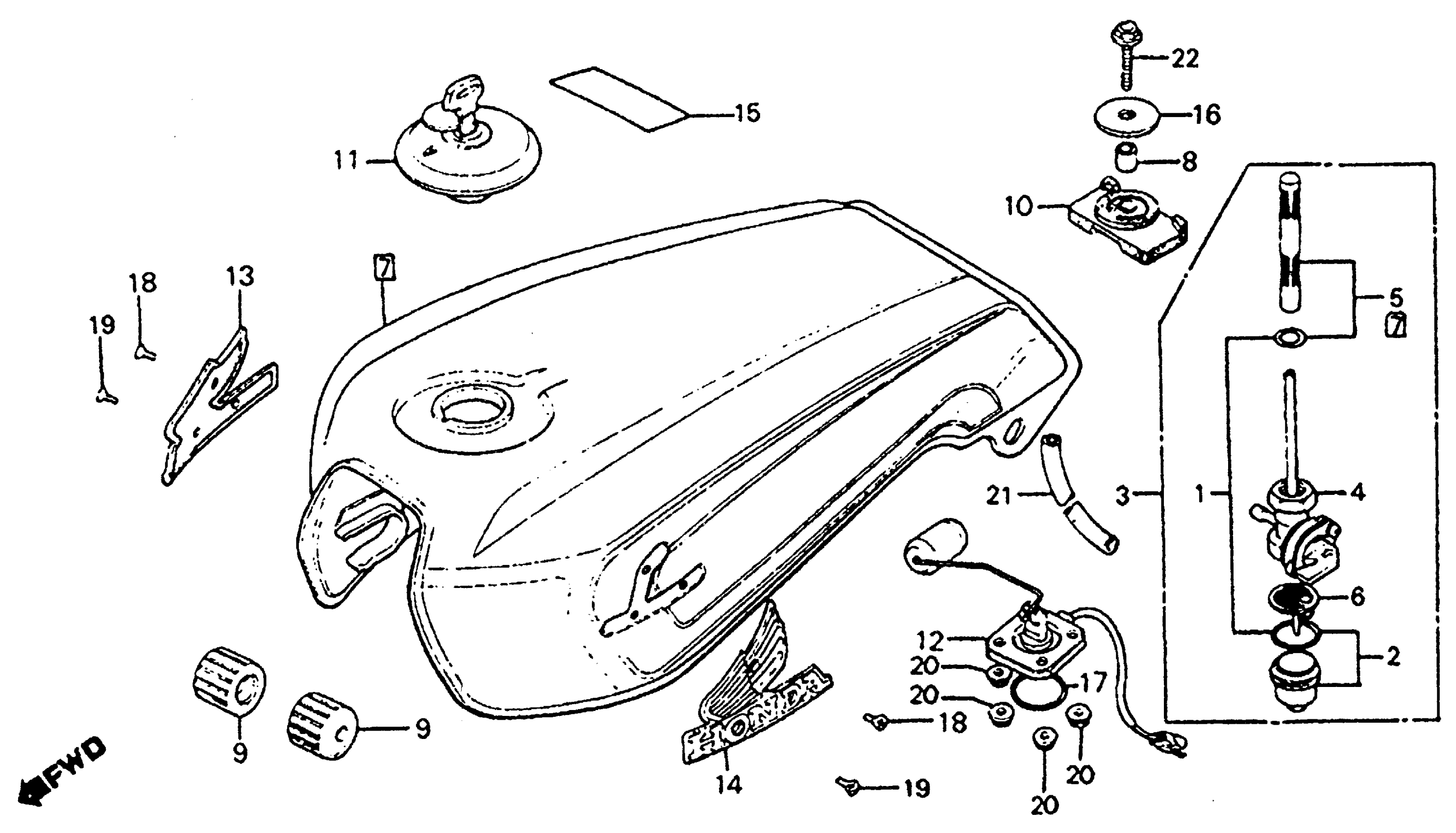

Honda CB750SCA (82) NIGHTHAWK 750, JPN, VIN# JH2RC012-CM000019 TO JH2RC012-CM012103 FUEL TANK Diagram

#

Description
Price

1

O-RING SET

16080-461-751

Unavailable

2

CUP, FUEL STRAINER

16081-471-831

$20.98

3

PETCOCK ASSY.

16950-461-751

$199.72

4

BODY, PETCOCK

16951-461-751

Unavailable

5

SCREEN, FUEL STRAINER

16952-461-751

Unavailable

6

FILTER, CUP

16959-461-751

$16.06

7

TANK SET, FUEL *PB115CU* (CANDY FLAIR BLUE) (NOT AVAILABLE)

175A1-ME1-670ZA

Unavailable

7

TANK SET, FUEL *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

175A1-ME1-670ZB

Unavailable

8

COLLAR, FUEL TANK

17503-329-770

Unavailable

9

RUBBER, FR. FUEL TANK

17611-425-000

$7.61

10

RUBBER, RR. FUEL TANK

17613-MA5-771

$9.09

11

CAP, FUEL FILLER This part replaces 17620-460-037.

17620-460-077

$55.33

11

CAP, FUEL FILLER This part replaces 17620-460-047.

17620-460-077

$55.33

11

CAP, FUEL FILLER This part replaces 17620-460-057.

17620-460-077

$55.33

11

CAP, FUEL FILLER This part replaces 17620-460-067.

17620-460-077

$55.33

12

METER UNIT ASSY., FUEL (NOT AVAILABLE)

37800-ME1-671

Unavailable

13

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-ME1-670

Unavailable

14

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-ME1-670

Unavailable

15

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

16

WASHER (8.3X38)

90502-461-000

Unavailable

17

O-RING (39.5X5)

91305-MC7-000

Unavailable

18

SCREW, OVAL (3X6)

93700-03006-0G

$0.68

19

SCREW, OVAL (3X6)

93700-03006-0G

$0.68

20

NUT, FLANGE (6MM)

94050-06080

$0.59

21

BULK HOSE, FUEL (7.5X8000) (7.3X230)

95001-75008-60M

$93.20

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.62

22

BOLT, FLANGE (8X25)

95701-08025-00

$1.62
