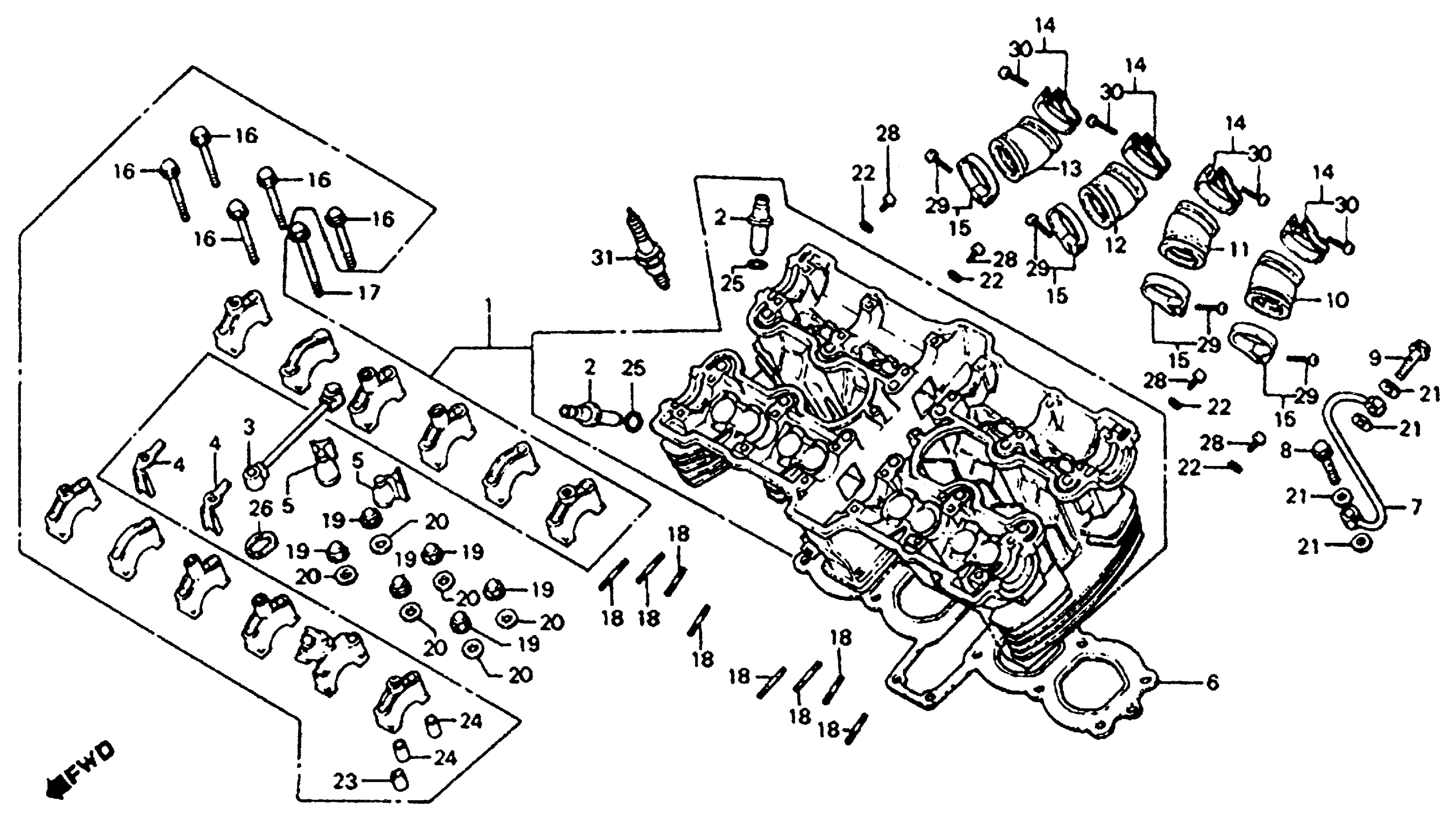

Honda CB750SCA (82) NIGHTHAWK 750, JPN, VIN# JH2RC012-CM000019 TO JH2RC012-CM012103 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12010-MA5-770

Unavailable

2

GUIDE, VALVE This part replaces 12204-461-305.

12204-461-405

Unavailable

3

JOINT A, OIL PASSAGE

12230-425-000

Unavailable

4

PLATE, OIL STOPPER (NOT AVAILABLE)

12241-425-000

Unavailable

5

CAP, OIL STOPPER

12242-425-000

Unavailable

6

GASKET, CYLINDER HEAD | Use up to Engine SN 2311602 This part replaces 12251-425-000.

12251-438-023

Unavailable

6

GASKET, CYLINDER HEAD | Use up to Engine SN 2311602 This part replaces 12251-425-010.

12251-438-023

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-425-010.

12251-438-023

Unavailable

6

GASKET, CYLINDER HEAD | Use up to Engine SN 2311602 This part replaces 12251-438-013.

12251-438-023

Unavailable

6

GASKET, CYLINDER HEAD | Use up to Engine SN 2311602

12251-438-023

Unavailable

6

GASKET, CYLINDER HEAD

12251-438-023

Unavailable

7

PIPE, OIL (NOT AVAILABLE)

15520-ME1-670

Unavailable

8

BOLT, OIL CONTROL (NOT AVAILABLE)

15531-ME1-670

Unavailable

9

BOLT, OIL (NOT AVAILABLE)

15532-425-010

Unavailable

10

INSULATOR 1, CARBURETOR

16211-425-000

$35.48

11

INSULATOR 2, CARBURETOR

16212-425-000

$35.48

12

INSULATOR 3, CARBURETOR

16213-425-000

$35.48

13

INSULATOR 4, CARBURETOR

16214-425-000

$35.48

14

BAND, INSULATOR

16219-422-000

$12.72

15

BAND, AIR CLEANER CONNECTING TUBE (54) This part replaces 17255-371-000.

95018-54250

$5.14

15

BAND, AIR CLEANER CONNECTING TUBE (54)

95018-54250

$5.14

16

BOLT, FLANGE (6X48)

90018-425-000

$3.35

17

BOLT, FLANGE (6X60)

90004-ML7-000

Unavailable

17

BOLT, FLANGE (6X60) This part replaces 90019-425-000.

90004-ML7-000

Unavailable

18

BOLT, STUD (8X55)

90011-MG5-670

Unavailable

19

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

20

WASHER, SEALING (10MM)

90403-438-003

$8.16

21

WASHER, SEALING (10MM)

90441-425-000

$2.13

22

WASHER, SEALING (5MM)

90452-323-000

$1.59

23

PIN, DOWEL (8X26) (NOT AVAILABLE)

90701-425-000

Unavailable

24

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

25

O-RING (10X1.6)

91301-200-000

$3.01

26

O-RING, CAMSHAFT HOLDER

91311-425-000

$6.78

28

SCREW, PAN (5X8)

93500-05008-0A

$1.49

29

SCREW, PAN (5X20)

93500-05020-0G

$1.49

30

SCREW, PAN (5X25)

93500-05025-0G

$1.49

31

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

31

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

31

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
