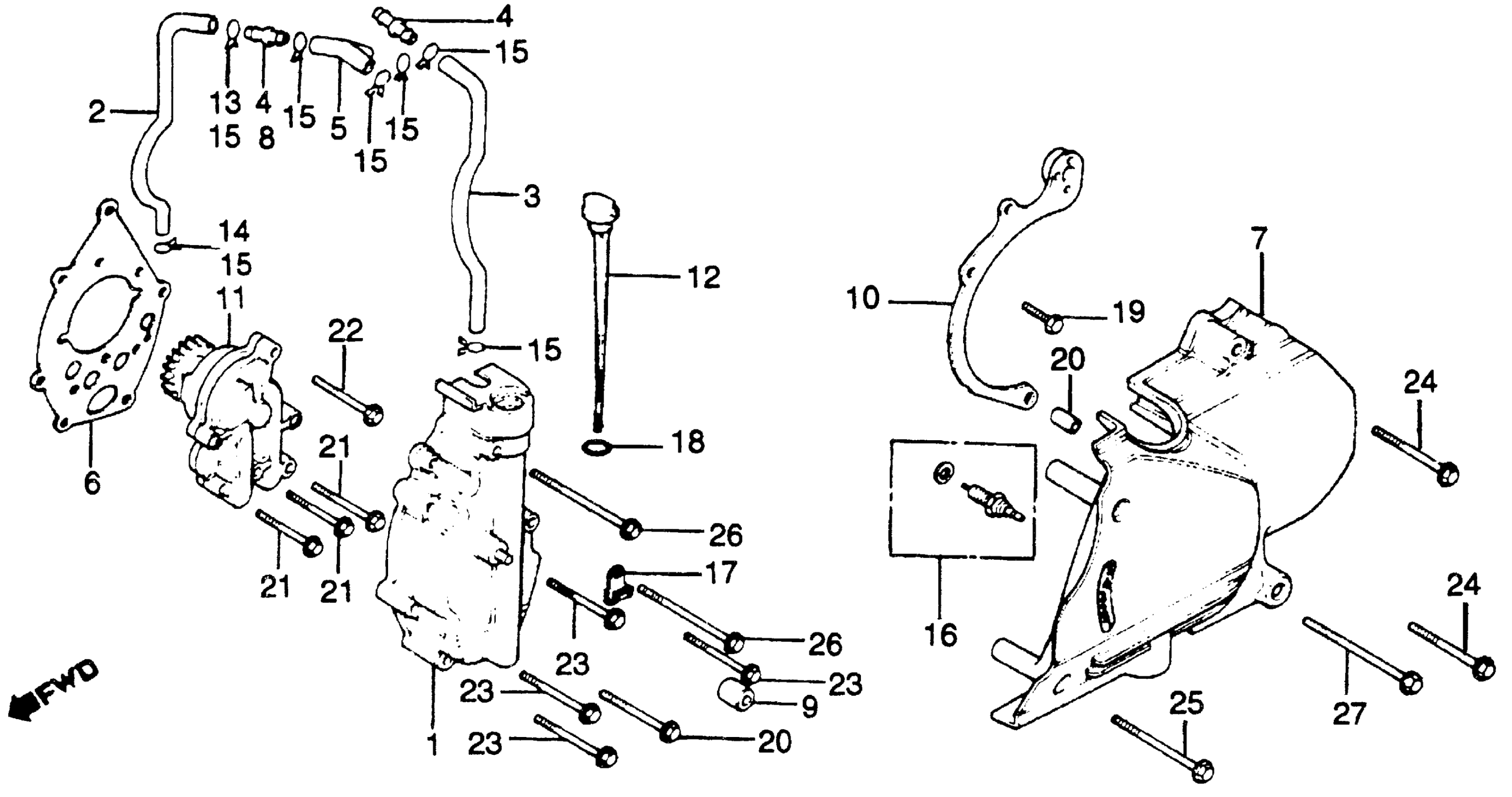

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 OIL PUMP Diagram

#

Description
Price

1

COVER, OIL PUMP (NOT AVAILABLE)

11350-425-870

Unavailable

2

TUBE, R. BREATHER (NOT AVAILABLE)

11355-425-000

Unavailable

3

TUBE, L. BREATHER (NOT AVAILABLE) This part replaces 11356-425-000.

11356-425-010

Unavailable

4

JOINT, HOSE

11357-425-000

Unavailable

5

JOINT, THREE-WAY

11358-425-000

Unavailable

6

GASKET, COVER This part replaces 11359-425-000.

11359-425-306

Unavailable

6

GASKET, COVER This part replaces 11359-425-020.

11359-425-306

Unavailable

6

GASKET, COVER

11359-425-306

Unavailable

7

COVER, L. SIDE (NOT AVAILABLE)

11361-425-870

Unavailable

9

RUBBER, L. SIDE COVER MOUNTING (NOT AVAILABLE)

11364-425-000

Unavailable

10

PROTECTOR, CASE (NOT AVAILABLE) This part replaces 11615-425-000.

11615-445-000

Unavailable

10

PROTECTOR, CASE (NOT AVAILABLE)

11615-445-000

Unavailable

11

PUMP ASSY., OIL (NOT AVAILABLE)

15100-425-000

Unavailable

12

DIPSTICK, OIL

15650-425-000

Unavailable

12

DIPSTICK, OIL This part replaces 15650-425-870.

15650-425-000

Unavailable

15

CLIP, BREATHER TUBE

17316-611-000

$9.23

16

SWITCH ASSY., NEUTRAL This part replaces 35600-425-003.

35600-425-023

$21.73

16

SWITCH ASSY., NEUTRAL This part replaces 35600-425-013.

35600-425-023

$21.73

16

SWITCH ASSY., NEUTRAL

35600-425-023

$21.73

17

CLIP, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

35610-425-000

Unavailable

18

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

18

O-RING (22X3.0)

91307-425-003

$2.59

19

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

19

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

20

PIN A, DOWEL (8X14)

94301-08140

$2.25

21

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

21

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

22

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

22

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

23

BOLT, FLANGE (6X35) (NOT AVAILABLE)

90004-425-870

Unavailable

24

BOLT, FLANGE (6X40) (SOURCE: VINTAGE PARTS INC.) This part replaces 90008-425-870.

96001-06040-02

Unavailable

24

BOLT, FLANGE (6X40) (SOURCE: VINTAGE PARTS INC.)

96001-06040-02

Unavailable

25

BOLT, FLANGE (6X55) (NOT AVAILABLE)

90002-425-870

Unavailable

26

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

26

BOLT, FLANGE (6X65)

96001-06065-00

$2.34

27

BOLT, FLANGE (6X70) (NOT AVAILABLE)

90007-425-870

Unavailable
