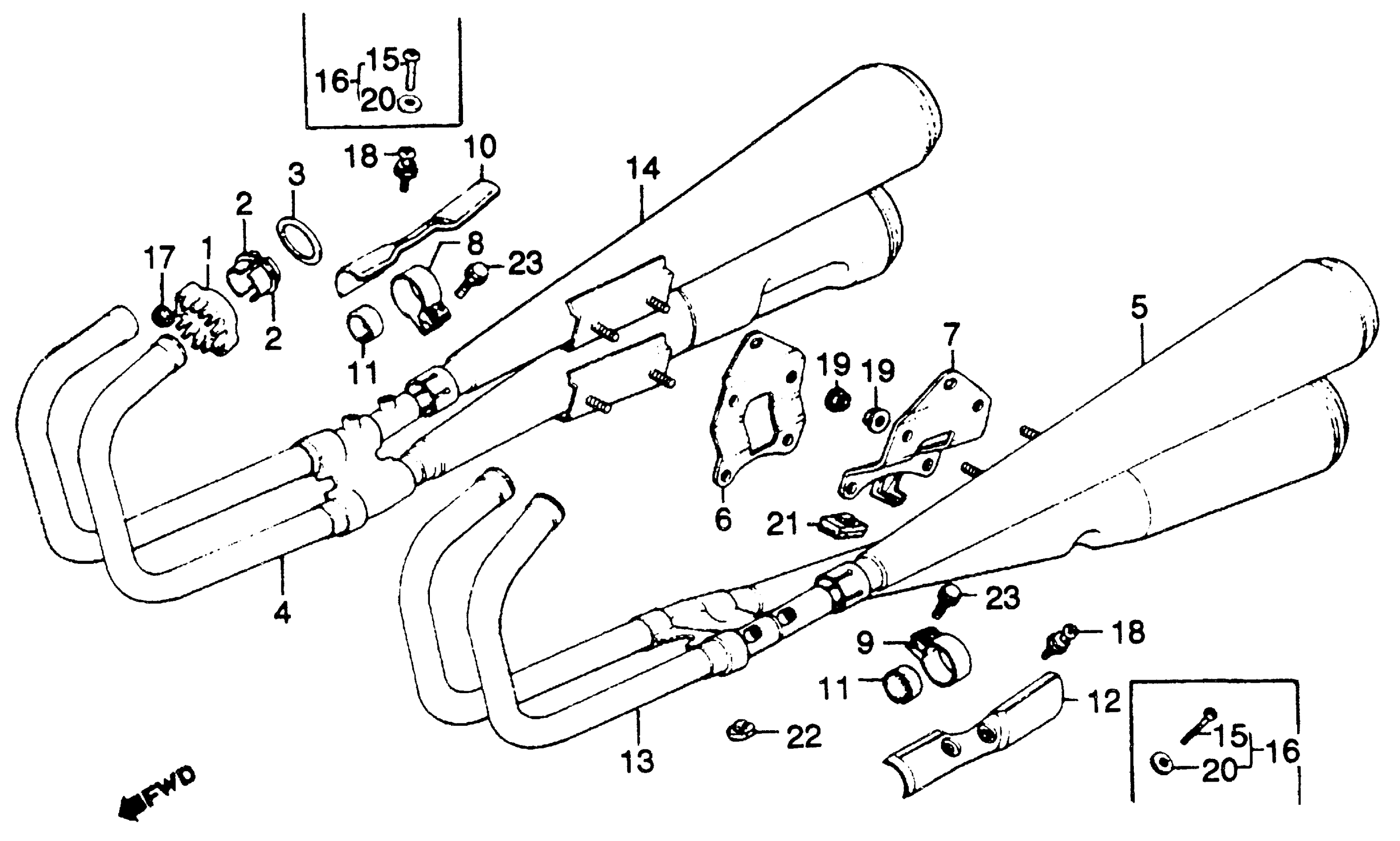

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-425-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-425-000

$16.69

3

GASKET, EX. PIPE

18291-MM5-860

$5.17

3

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

4

MUFFLER

18300-425-405

Unavailable

4

MUFFLER This part replaces 18300-425-677.

18300-425-405

Unavailable

4

MUFFLER This part replaces 18300-425-870.

18300-425-405

Unavailable

4

MUFFLER This part replaces 18300-425-877.

18300-425-405

Unavailable

5

MUFFLER 1 This part replaces 18310-425-870.

18310-425-023

Unavailable

6

BRACKET, R. MUFFLER (NOT AVAILABLE)

18312-425-003

Unavailable

7

BRACKET, L. MUFFLER (NOT AVAILABLE)

18313-425-003

Unavailable

8

BAND, R. EX. PIPE (NOT AVAILABLE)

18373-425-000

Unavailable

9

BAND, L. EX. PIPE (NOT AVAILABLE)

18374-425-000

Unavailable

10

PROTECTOR, R. MUFFLER JOINT (NOT AVAILABLE)

18375-425-003

Unavailable

11

GASKET, EX. This part replaces 18391-MJ4-000.

18392-ML0-000

Unavailable

11

GASKET, EX. This part replaces 18391-425-000.

18392-ML0-000

Unavailable

11

GASKET, EX.

18392-ML0-000

Unavailable

12

PROTECTOR, L. MUFFLER JOINT (NOT AVAILABLE) This part replaces 18425-425-003.

18425-425-013

Unavailable

12

PROTECTOR, L. MUFFLER JOINT (NOT AVAILABLE)

18425-425-013

Unavailable

13

MUFFLER 1

18450-425-405

Unavailable

13

MUFFLER 1 This part replaces 18450-425-870.

18450-425-405

Unavailable

13

MUFFLER 1 This part replaces 18450-425-877.

18450-425-405

Unavailable

14

MUFFLER 4

18460-425-023

Unavailable

14

MUFFLER 4 This part replaces 18460-425-673.

18460-425-023

Unavailable

14

MUFFLER 4 This part replaces 18460-425-870.

18460-425-023

Unavailable

15

SCREW-WASHER (6X10) | Use up to Frame SN 3001960 This part replaces 90136-425-870.

93893-06010-00

$1.49

15

SCREW-WASHER (6X10) | Use up to Frame SN 3001960 This part replaces 90136-425-871.

93893-06010-00

$1.49

15

SCREW-WASHER (6X10) | Use up to Frame SN 3001960

93893-06010-00

$1.49

16

SCREW-WASHER (6X10) | Use from Frame SN 3001961 This part replaces 90136-425-871.

93893-06010-00

$1.49

16

SCREW-WASHER (6X10) | Use from Frame SN 3001961

93893-06010-00

$1.49

17

NUT, FLANGE (8MM) (NOT AVAILABLE)

90202-425-870

Unavailable

19

NUT, FLANGE (8MM)

94050-08000

$1.49

20

WASHER, PLAIN (6MM) | Use up to Frame SN 3001960

94101-06200

$1.49

21

RUBBER A, STAND STOPPER

95011-61000

$1.49

22

RUBBER C, STAND STOPPER

95011-63000

$3.90

23

BOLT, FLANGE (8X32) (NOT AVAILABLE)

90102-425-870

Unavailable
