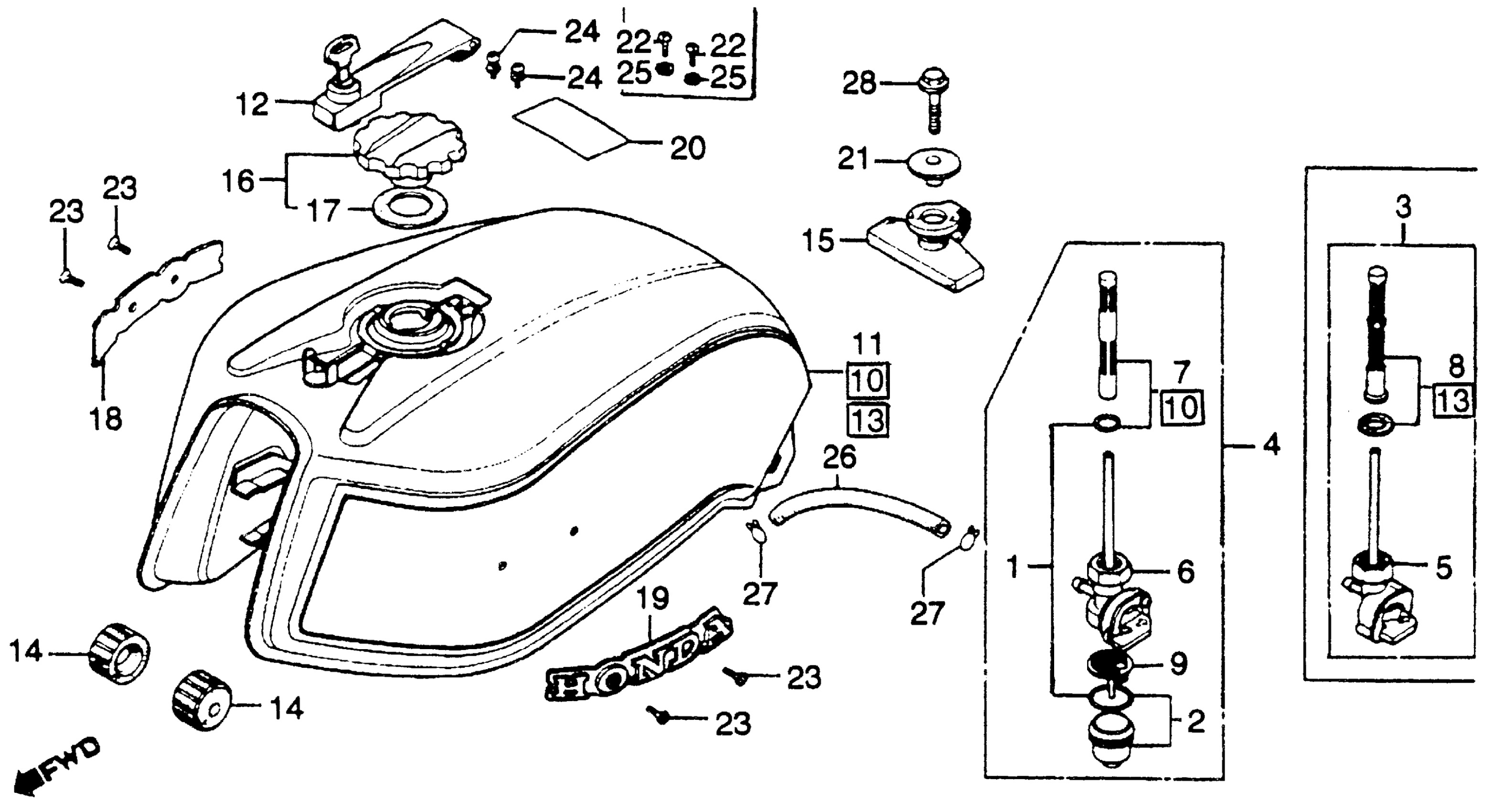

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 FUEL TANK Diagram

PETCOCK ASSY.

16950-425-025

Unavailable

PETCOCK ASSY. This part replaces 16950-425-871.

16950-425-025

Unavailable

PETCOCK ASSY. This part replaces 16950-425-873.

16950-425-025

Unavailable

BODY, PETCOCK This part replaces 16951-425-871.

16951-425-873

Unavailable

BODY, PETCOCK

16951-425-873

Unavailable

SCREEN SET, FUEL STRAINER

16952-425-005

Unavailable

TANK SET, FUEL *R104CU* (CANDY MUSE RED) (NOT AVAILABLE) This part replaces 17520-425-870ZA.

17540-425-870ZA

Unavailable

TANK SET, FUEL *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

17540-425-870ZA

Unavailable

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-425-870.

17530-425-871

Unavailable

LID, FUEL TANK (NOT AVAILABLE)

17530-425-871

Unavailable

TANK SET, FUEL *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

17540-425-870ZA

Unavailable

RUBBER, FR. FUEL TANK

17611-425-000

$8.18

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-425-000

Unavailable

CAP, FUEL FILLER This part replaces 17620-422-023.

17620-469-000

Unavailable

CAP, FUEL FILLER This part replaces 17620-449-003.

17620-469-000

Unavailable

CAP, FUEL FILLER

17620-469-000

Unavailable

GASKET, FUEL FILLER CAP

17632-422-000

Unavailable

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-425-000

Unavailable

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-425-000

Unavailable

LABEL, DRIVE CAUTION

87560-422-300

Unavailable

WASHER (8MM) (NOT AVAILABLE)

90502-425-000

Unavailable

SCREW, PAN (4X6) (NOT AVAILABLE)

93500-04006-0B

Unavailable

SCREW, OVAL (4X6)

93700-04006-0G

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49

BULK HOSE, FUEL (5.5X3000) (5.5X135)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
