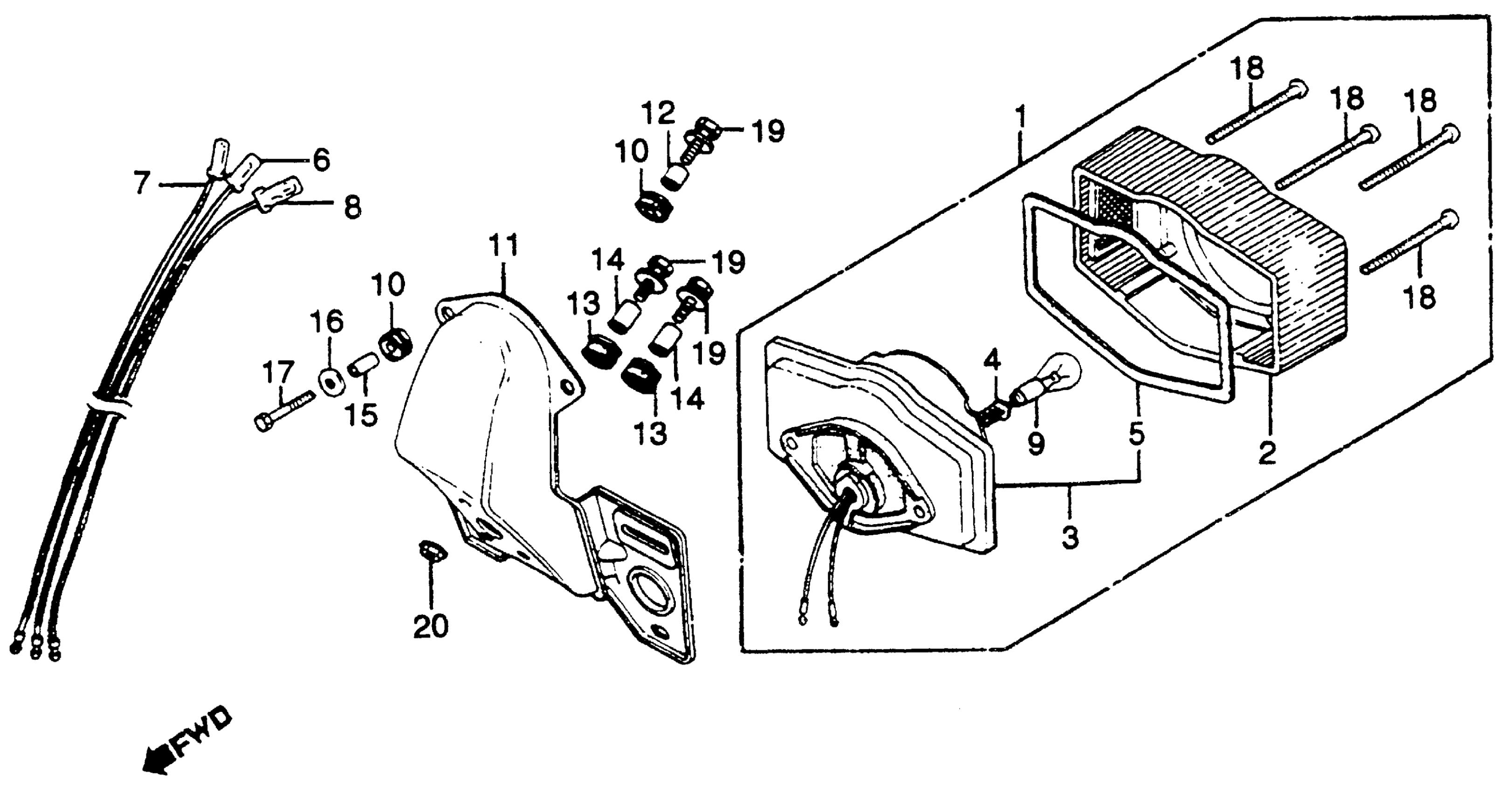

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 CB750L TAILLLIGHT (CB750L'79) 79 Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-341-671

Unavailable

1

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-371-980.

33701-341-671

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE) This part replaces 33703-371-980.

33703-341-671

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

WIRE, STOP LIGHT (NOT AVAILABLE)

33710-342-670

Unavailable

7

WIRE, TAILLIGHT (NOT AVAILABLE)

33711-342-670

Unavailable

8

CABLE, TAILLIGHT GROUND (NOT AVAILABLE)

33712-342-670

Unavailable

9

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

9

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

10

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

11

BRACKET, NUMBER PLATE

84700-425-870

Unavailable

12

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

13

RUBBER, FENDER

84905-333-000

$4.22

14

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

15

COLLAR (6.2X13.5)

90503-KB7-940

Unavailable

15

COLLAR (6.2X13.5) (NOT AVAILABLE) This part replaces 90507-425-870.

90503-KB7-940

Unavailable

16

WASHER (20MM)

90581-310-000

$1.90

17

BOLT, HEX. (5X25) This part replaces 91500-371-980.

92101-05025-0A

$1.49

17

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

17

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

17

BOLT, HEX. (5X25) This part replaces 92200-05025-0A.

92101-05025-0A

$1.49

18

SCREW, PAN (4X55) This part replaces 91520-371-980.

93500-04055-4J

$1.49

18

SCREW, PAN (4X55) This part replaces 93500-04055-4A.

93500-04055-4J

$1.49

18

SCREW, PAN (4X55)

93500-04055-4J

$1.49

19

BOLT-WASHER (6X22) This part replaces 93494-06022-00.

93404-06022-00

$1.49

20

NUT-WASHER (6MM)

94071-06080

$1.49
