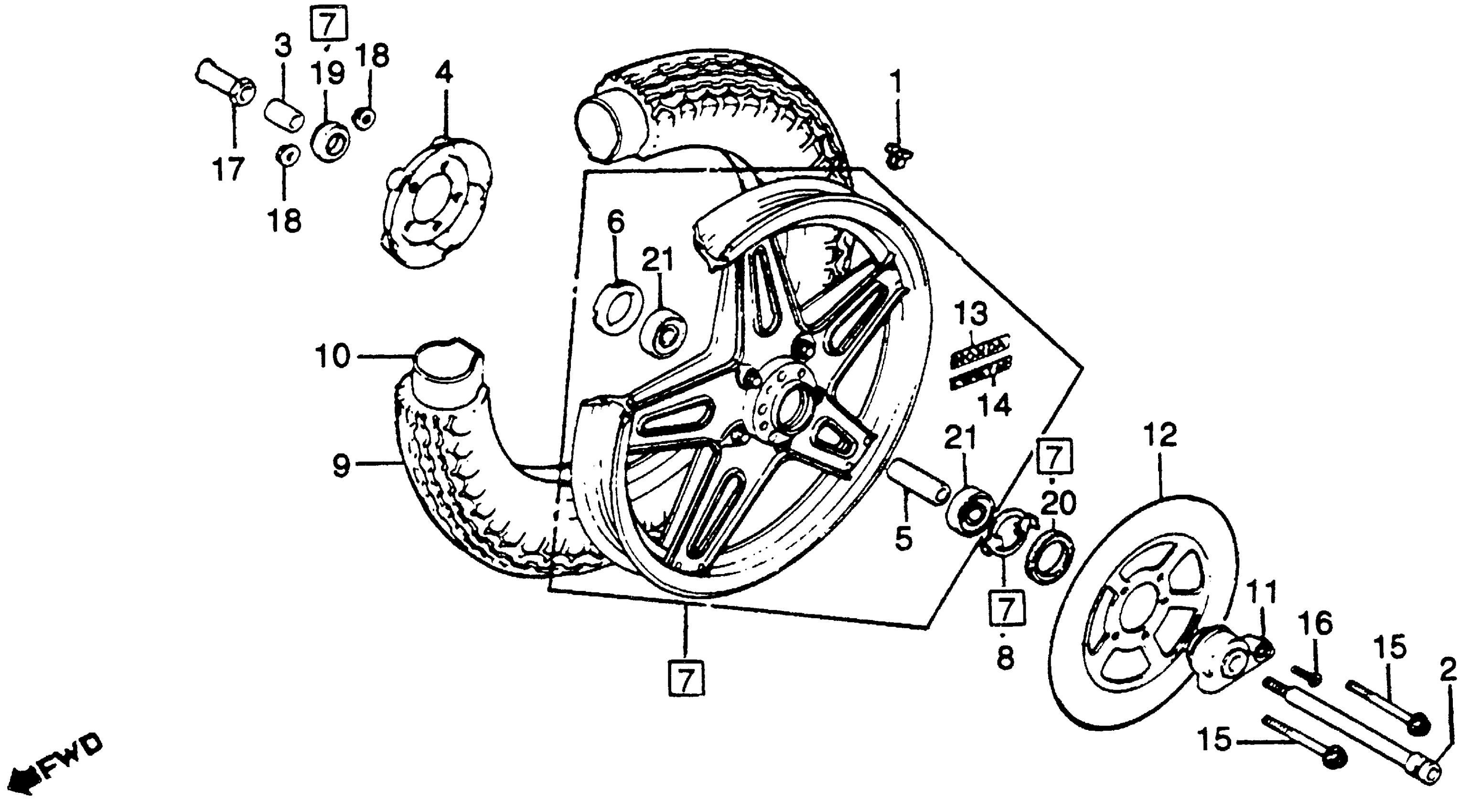

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 CB750L FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-425-870

Unavailable

3

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-425-870

Unavailable

4

COVER, FR. WHEEL HUB (NOT AVAILABLE)

44607-426-770

Unavailable

5

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

6

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

7

WHEEL, FR. (NOT AVAILABLE)

44650-426-771

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE, FR. (3.50H19) (4PR) (BS) (NOT AVAILABLE)

44711-425-671

Unavailable

9

TIRE, FR. (3.50H19) (4PR) (DUNLOP) (NOT AVAILABLE)

44711-425-672

Unavailable

10

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

10

TUBE, TIRE (3.50-19) (BS) This part replaces 08400-37110.

44712-371-003

Unavailable

10

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

10

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

10

TUBE, TIRE (3.50-19) (BS) This part replaces 44712-300-003.

44712-371-003

Unavailable

10

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

10

TUBE, TIRE (3.50-19) (BS)

44712-371-003

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-425-871.

44800-425-013

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-425-000

Unavailable

13

MARK, SPOKE PLATE (HONDA) (NOT AVAILABLE)

87108-426-770

Unavailable

14

MARK, SPOKE PLATE (COMSTAR) (NOT AVAILABLE)

87109-426-770

Unavailable

15

BOLT, FLANGE (8X97) (NOT AVAILABLE)

90123-425-000

Unavailable

16

SCREW, OVAL (5X16) (NOT AVAILABLE)

90135-425-870

Unavailable

17

NUT, AXLE (18MM) (NOT AVAILABLE)

90305-425-870

Unavailable

18

NUT, HEX. (8MM)

90309-357-000

$3.40

19

DUST SEAL (22X36X8)

91252-300-003

$10.73

20

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

20

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

20

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

21

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

21

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
