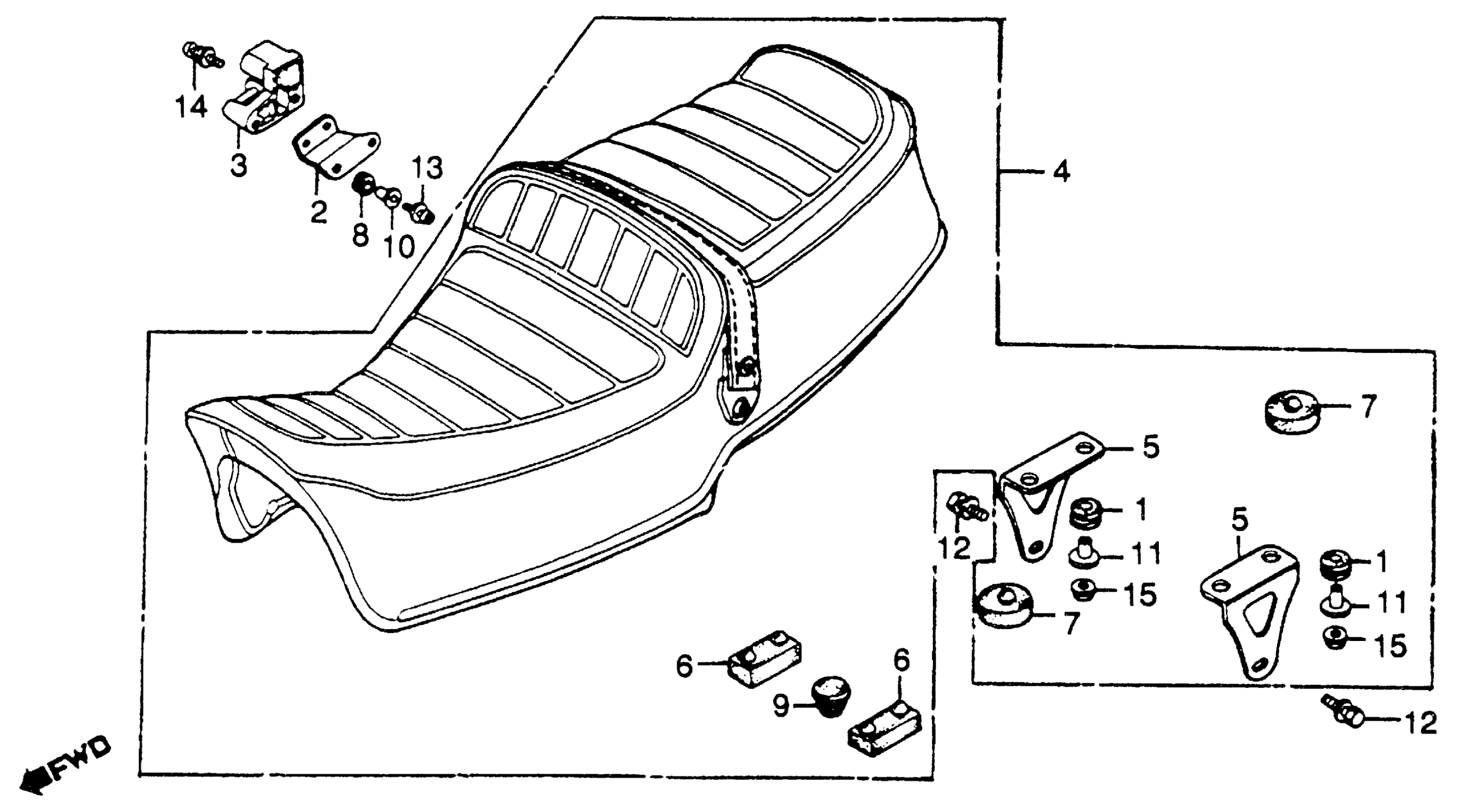

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 CB750K/LSEAT 80-82 Diagram

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

BRACKET, HELMET HOLDER MOUNT

50709-425-870

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

SEAT (NOT AVAILABLE)

77200-425-870

Unavailable

PLATE, SEAT SETTING (NOT AVAILABLE)

77202-425-870

Unavailable

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER, SEAT (NOT AVAILABLE)

77206-425-000

Unavailable

RUBBER A, RR. FENDER

80105-061-000

$4.01

GROMMET, DRAIN HOLE

81329-567-020

$4.28

COLLAR, TAILLIGHT SETTING

84706-163-670

$4.08

COLLAR (6.2X12)

90501-425-000

$4.69

BOLT-WASHER (8X12)

93401-08012-07

$1.89

BOLT-WASHER (8X12) This part replaces 93481-08012-07.

93401-08012-07

$1.89

SCREW-WASHER (6X18) (NOT AVAILABLE)

93891-06018-07

Unavailable

SCREW-WASHER (5X12)

93893-06016-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
