Partiron

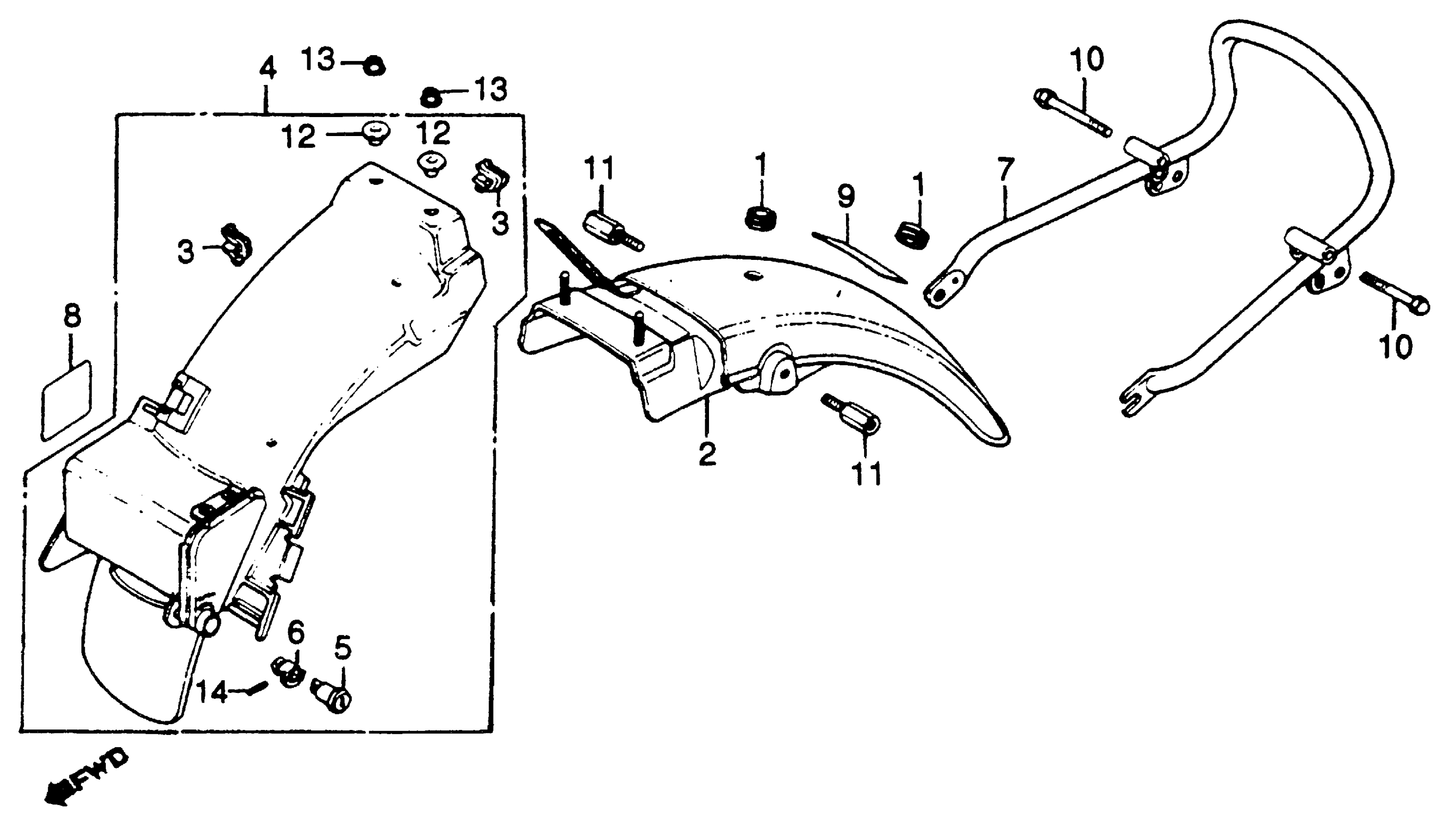

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 CB750K/LREAR FENDER 79-82 Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS

32983-011-000

$3.31

2

FENDER A, RR. (NOT AVAILABLE)

80100-425-870

Unavailable

3

CLAMP, CABLE

80110-147-000

$2.64

4

FENDER ASSY. B, RR. (NOT AVAILABLE)

80120-438-000

Unavailable

5

BODY, KEY

83507-438-000

Unavailable

6

STOPPER, KEY BODY

83508-KBG-000

$2.90

6

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

7

BUMPER, RR. (NOT AVAILABLE)

84100-425-870

Unavailable

9

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

10

BOLT, CAP (8X50) (NOT AVAILABLE)

90112-425-870

Unavailable

11

BOLT, RR. BUMPER MOUNT (NOT AVAILABLE)

90160-425-870

Unavailable

12

WASHER (6X20)

90512-300-000

$3.08

13

NUT, FLANGE (6MM)

94050-06000

$1.49

14

PIN, SPRING (2X14)

94305-20141

$1.49
