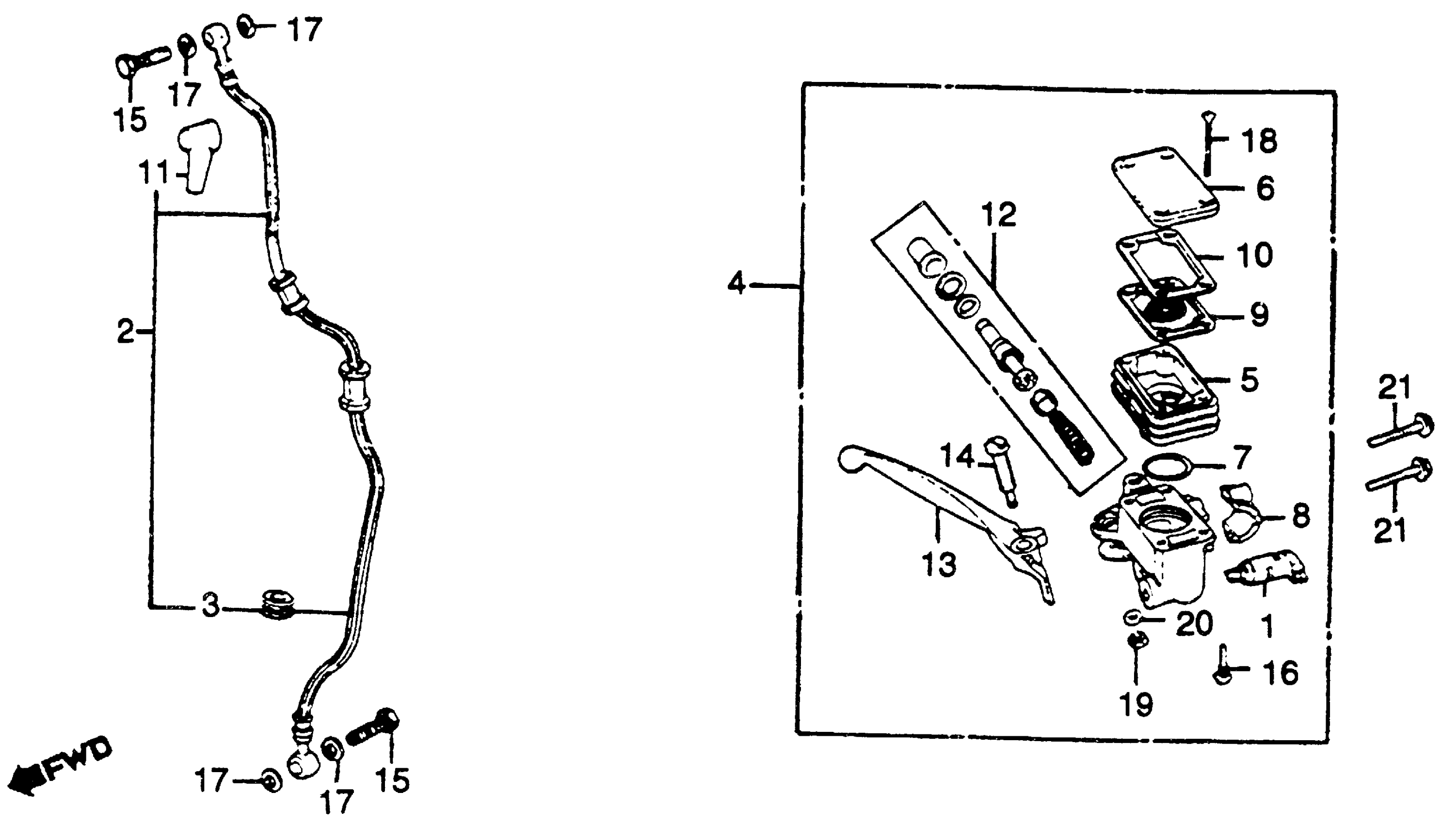

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 CB750K/LFRONT BRAKE MASTER CYL 79-80 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-422-003.

35340-422-013

$17.65

1

SWITCH ASSY., FR. STOP

35340-422-013

$17.65

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-425-871

Unavailable

3

GROMMET, BRAKE HOSE

45146-300-000

$4.24

4

MASTER CYLINDER ASSY., FR. This part replaces 45500-413-872.

45500-413-874

Unavailable

4

MASTER CYLINDER ASSY., FR. This part replaces 45500-413-873.

45500-413-874

Unavailable

4

MASTER CYLINDER ASSY., FR.

45500-413-874

Unavailable

5

CUP, OIL This part replaces 45511-422-016.

45511-463-006

Unavailable

5

CUP, OIL

45511-463-006

Unavailable

6

CAP SET, OIL CUP CAP, OIL CUP This part replaces 45513-422-671.

45519-422-671

Unavailable

6

CAP SET, OIL CUP CAP, OIL CUP

45519-422-671

Unavailable

7

O-RING (39.7X3.5)

45516-422-006

$9.13

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

8

HOLDER, MASTER CYLINDER This part replaces 45517-422-006.

45517-MA5-671

$29.30

9

DIAPHRAGM This part replaces 45520-422-006.

45520-422-026

Unavailable

9

DIAPHRAGM This part replaces 45520-422-016.

45520-422-026

Unavailable

9

DIAPHRAGM

45520-422-026

Unavailable

10

PLATE, DIAPHRAGM

45521-422-006

Unavailable

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET This part replaces 45530-442-305.

45530-442-315

Unavailable

12

MASTER CYLINDER SET

45530-442-315

Unavailable

13

LEVER, R. HANDLEBAR This part replaces 53175-422-000.

53175-438-010

Unavailable

13

LEVER, R. HANDLEBAR This part replaces 53175-438-000.

53175-438-010

Unavailable

13

LEVER, R. HANDLEBAR

53175-438-010

Unavailable

14

BOLT, R. HANDLEBAR CONTROL LEVER PIVOT

90114-422-000

Unavailable

15

BOLT, FLANGE (6X32) This part replaces 90145-371-980.

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32) This part replaces 95700-06032.

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

15

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

16

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

SCREW, FLAT (4X37) SCREW, CAP (4X35)

93600-04037-1G

$1.49

19

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

BOLT, FLANGE (6X25) (NOT AVAILABLE)

90105-425-870

Unavailable
