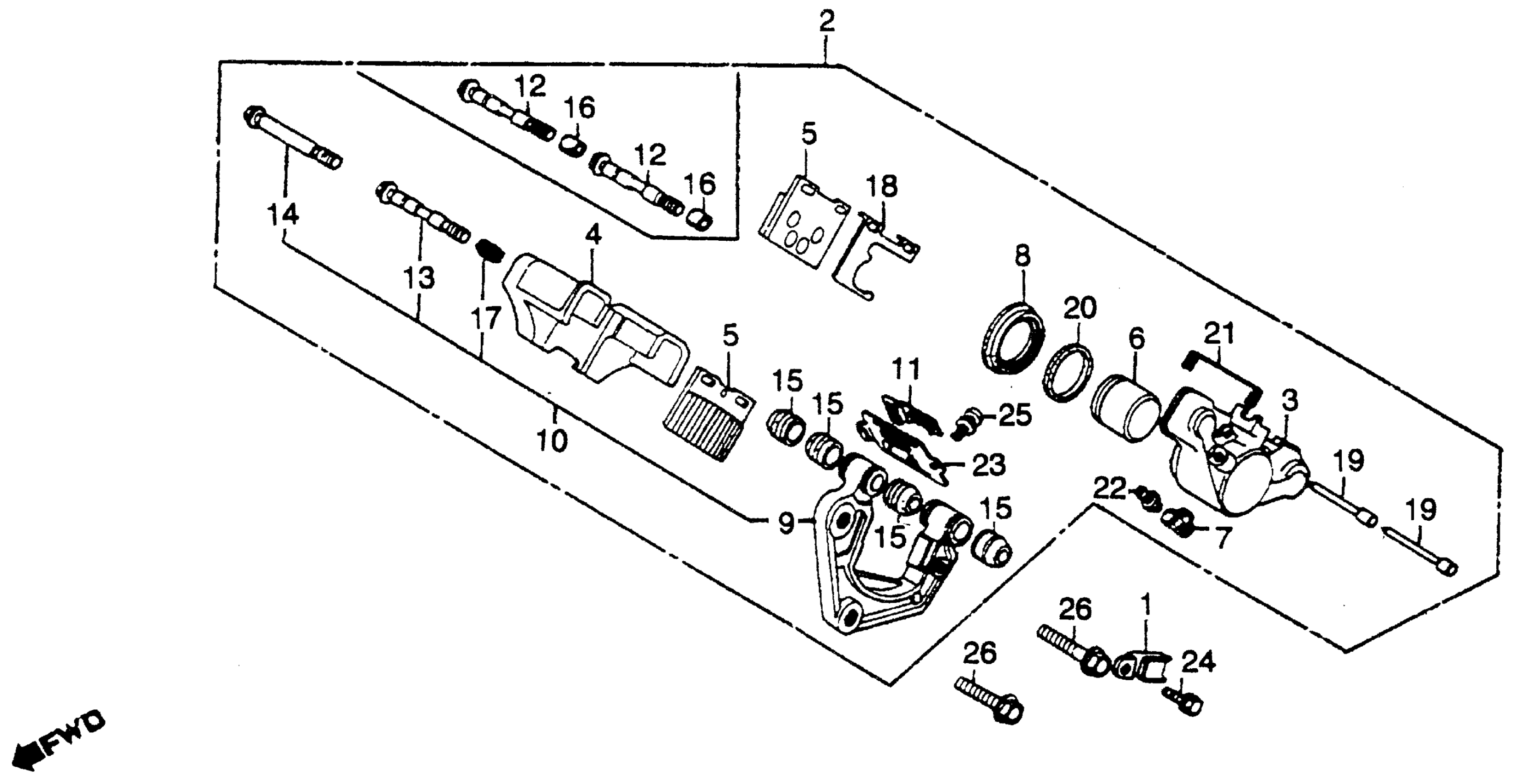

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 CB750K/LFRONT BRAKE CALIPER 79-81 Diagram

#

Description
Price

NI

PAD SET, BRAKE

06455-425-405

Unavailable

NI

PAD SET, BRAKE This part replaces 451A0-425-670.

06455-425-405

Unavailable

1

CLIP, IGNITION WIRE

44835-425-870

Unavailable

2

CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) | Use up to Frame SN 3000100 This part replaces 45100-425-013.

45100-425-033

Unavailable

2

CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) | Use up to Frame SN 3007740 This part replaces 45100-425-023.

45100-425-033

Unavailable

2

CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE)

45100-425-033

Unavailable

2

CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) CALIPER ASSY., L. FR. (ASK) | Use from Frame SN 3007741 This part replaces 45100-425-004.

45100-425-771

Unavailable

2

CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) CALIPER ASSY., L. FR. (ASK) | Use from Frame SN 3007741 This part replaces 45100-425-014.

45100-425-771

Unavailable

2

CALIPER ASSY., L. FR. (JB) (TOKIKO) (NOT AVAILABLE) CALIPER ASSY., L. FR. (ASK) | Use from Frame SN 3007741 This part replaces 45100-425-772.

45100-425-771

Unavailable

3

CALIPER A (NOT AVAILABLE) This part replaces 45101-425-013.

45101-425-771

Unavailable

3

CALIPER A (NOT AVAILABLE) This part replaces 45101-425-023.

45101-425-771

Unavailable

3

CALIPER A (NOT AVAILABLE)

45101-425-771

Unavailable

4

CALIPER B | Use up to Frame SN 3000100 This part replaces 45102-425-013.

45102-425-023

Unavailable

4

CALIPER B

45102-425-023

Unavailable

4

CALIPER B | Use up to Frame SN 3000100

45102-425-023

Unavailable

5

PAD (ASK) (TOKIKO)

45105-MA5-305

Unavailable

5

PAD (ASK) (TOKIKO) This part replaces 45105-425-003.

45105-MA5-305

Unavailable

5

PAD (ASK) (TOKIKO) This part replaces 45105-425-006.

45105-MA5-305

Unavailable

6

PISTON (NA USE ALT:45100-425-771)

45107-425-003

Unavailable

7

CAP, BLEEDER VALVE

45108-425-003

Unavailable

8

BOOT

45109-425-003

Unavailable

9

SHAFT SET, L. CARRIER (NOT AVAILABLE) | Use up to Frame SN 3007740 This part replaces 45110-425-013.

45115-425-305

Unavailable

9

SHAFT SET, L. CARRIER (NOT AVAILABLE) | Use up to Frame SN 3007740

45115-425-305

Unavailable

9

CARRIER, L. CALIPER (NOT AVAILABLE) | Use from Frame SN 3007741

45110-425-023

Unavailable

10

SHAFT SET, L. CARRIER (NOT AVAILABLE) | Use up to Frame SN 3007740

45115-425-305

Unavailable

11

COVER, INDICATOR (NOT AVAILABLE)

45119-425-003

Unavailable

12

SHAFT B, CALIPER (NOT AVAILABLE) | Use up to Frame SN 3007740 This part replaces 45131-425-013.

45131-425-023

Unavailable

13

SHAFT B, CALIPER (NOT AVAILABLE) | Use from Frame SN 3007741

45131-425-023

Unavailable

14

SHAFT A, CALIPER (NOT AVAILABLE) | Use from Frame SN 3007741

45132-425-003

Unavailable

15

BOOT, CALIPER SHAFT | Use up to Frame SN 3007740

45133-413-003

Unavailable

15

BOOT, CALIPER SHAFT | Use from Frame SN 3007741

45133-425-003

$4.63

16

RUBBER, BUSH | Use up to Frame SN 3007740 This part replaces 45134-425-003.

45134-425-013

Unavailable

16

RUBBER, BUSH | Use up to Frame SN 3007740

45134-425-013

Unavailable

17

RUBBER, BUSH | Use from Frame SN 3007741

45134-425-013

Unavailable

18

SHIM (NOT AVAILABLE)

45214-413-003

Unavailable

19

PIN, PAD RETAINING

45215-425-003

Unavailable

20

SEAL, PISTON

45215-533-004

Unavailable

20

SEAL, PISTON This part replaces 45215-533-043.

45215-533-004

Unavailable

21

CLIP, PAD PIN (NOT AVAILABLE)

45223-425-003

Unavailable

22

VALVE, BLEEDER

45224-413-003

Unavailable

23

COVER, L. CALIPER (NOT AVAILABLE)

45241-425-013

Unavailable

24

BOLT, FLANGE (6X10) (NOT AVAILABLE)

90107-425-870

Unavailable

25

SCREW-WASHER (5X10)

93892-05010-00

$1.49

26

BOLT, SOCKET (10X32) (NOT AVAILABLE)

90164-425-870

Unavailable
