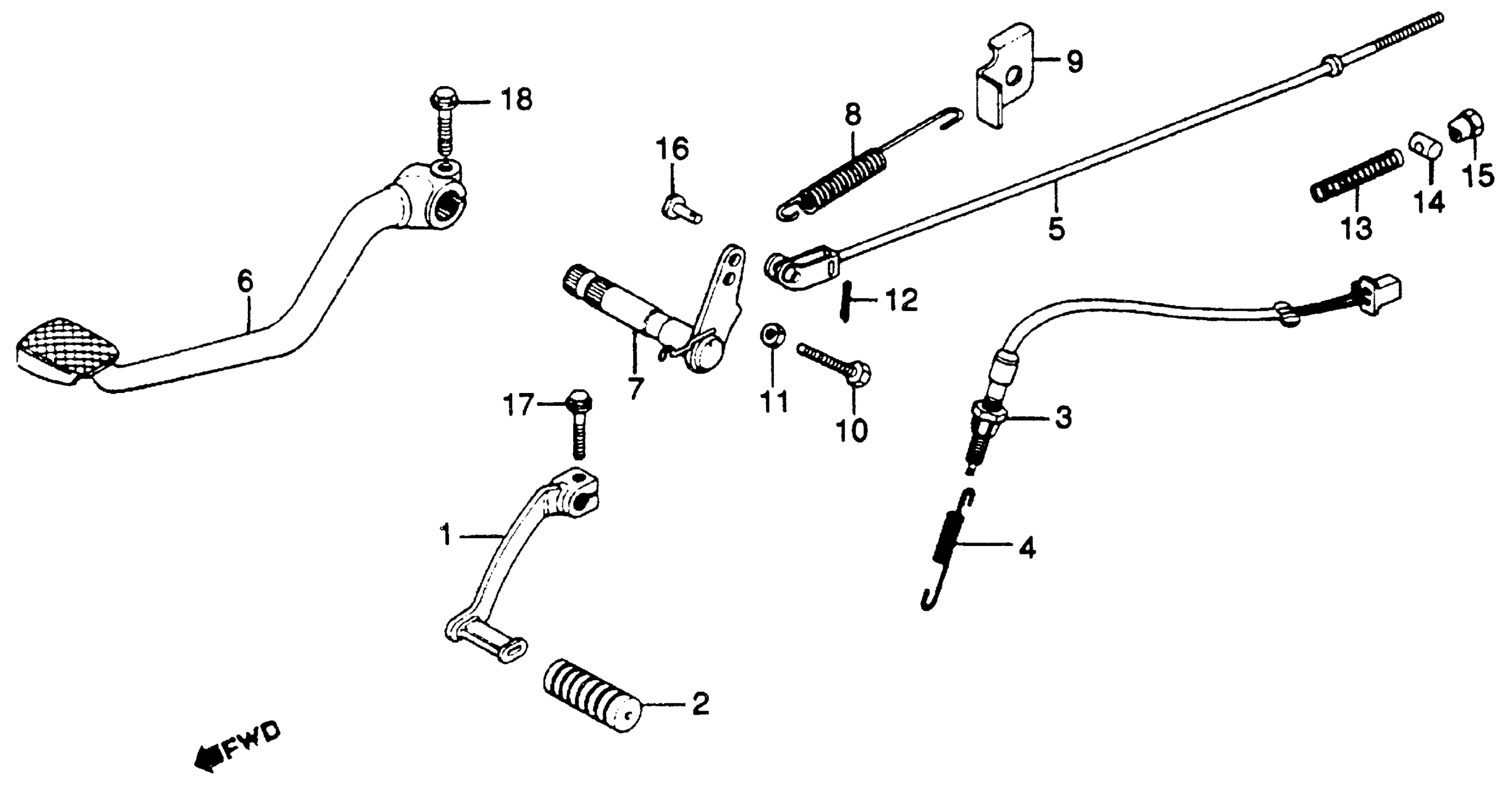

Honda CB750LA (79) MOTORCYCLE, JPN, VIN# RC01-3000006 TO RC01-3008810 BRAKE PEDAL + CHANGE PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24701-425-870.

24701-425-000

Unavailable

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

SWITCH ASSY., RR. STOP This part replaces 35350-438-000.

35350-KA2-405

$16.22

SPRING, STOP SWITCH (NOT AVAILABLE) This part replaces 35357-425-010.

35357-ME1-670

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43450-425-000

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-425-870

Unavailable

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-425-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE) This part replaces 46514-425-870.

46514-425-871

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-425-871

Unavailable

PLATE, BRAKE PEDAL SPRING STOPPER (NOT AVAILABLE)

46515-425-000

Unavailable

BOLT, HEX. (6X40)

92140-06040

Unavailable

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

SPRING A, BRAKE ROD (NOT AVAILABLE)

43472-425-870

Unavailable

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X20) (NOT AVAILABLE)

90111-425-870

Unavailable

BOLT, FLANGE (8X25) (NOT AVAILABLE)

90109-425-870

Unavailable
