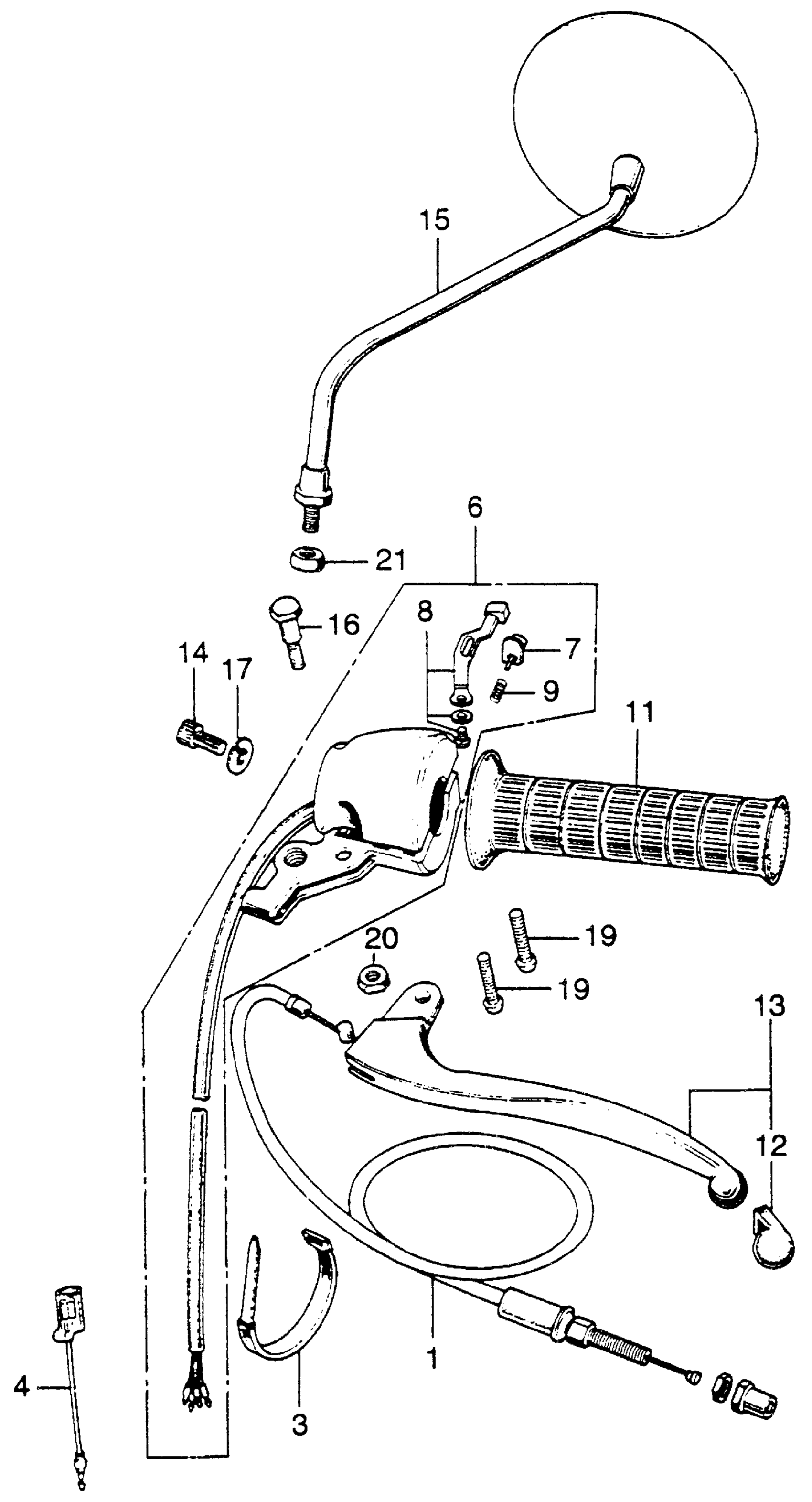

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 LEFT HANDLE SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, CLUTCH This part replaces 22870-300-000.

22870-410-000

$38.98

1

CABLE, CLUTCH This part replaces 22870-341-010.

22870-410-000

$38.98

1

CABLE, CLUTCH

22870-410-000

$38.98

3

BAND B1, CABLE This part replaces 32161-268-000.

32161-404-000

$2.23

3

BAND B1, WIRE

32161-404-000

$2.23

3

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

6

SWITCH ASSY., TURN SIGNAL & HORN (TOYO)

35250-300-033

Unavailable

7

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

8

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE) This part replaces 35317-235-000.

35317-310-810

Unavailable

8

BUTTON, HORN SWITCH PUSH (NOT AVAILABLE)

35317-310-810

Unavailable

9

SPRING, BUTTON

35318-259-000

$5.33

11

GRIP, L. HANDLEBAR This part replaces 53166-283-000.

95011-14200

$14.81

11

GRIP, L. HANDLEBAR

95011-14200

$14.81

12

CAP A, LEVER This part replaces 53180-286-000.

95010-16001

$5.97

12

CAP A, LEVER This part replaces 95010-16000.

95010-16001

$5.97

12

CAP A, LEVER

95010-16001

$5.97

13

LEVER, L. HANDLE This part replaces 53190-286-670.

53178-369-700

$28.35

13

LEVER, L. HANDLE This part replaces 53190-371-980.

53178-369-700

$28.35

13

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

13

LEVER, L. HANDLE (CAP NOT INCLUDED WITH LEVER)

53178-369-700

$28.35

13

LEVER, L. HANDLE This part replaces 53190-329-000.

53178-369-700

$28.35

13

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

13

LEVER, L. HANDLE This part replaces 53190-369-700.

53178-369-700

$28.35

14

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

15

MIRROR, R. (NOT AVAILABLE) This part replaces 88110-283-010.

88110-300-000

Unavailable

15

MIRROR, R. (NOT AVAILABLE)

88110-300-000

Unavailable

15

MIRROR, R. (NOT AVAILABLE) This part replaces 88120-283-010.

88110-300-000

Unavailable

15

MIRROR, R. (NOT AVAILABLE) This part replaces 88120-300-000.

88110-300-000

Unavailable

16

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

16

BOLT, HANDLE LEVER PIVOT

90114-310-000

$4.90

17

NUT, FIXING This part replaces 90321-292-000.

90321-315-670

$7.31

17

NUT, FIXING

90321-315-670

$7.31

17

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

19

SCREW, PAN (5X25)

93500-05025-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (10MM)

94001-10000-0S

$1.49
