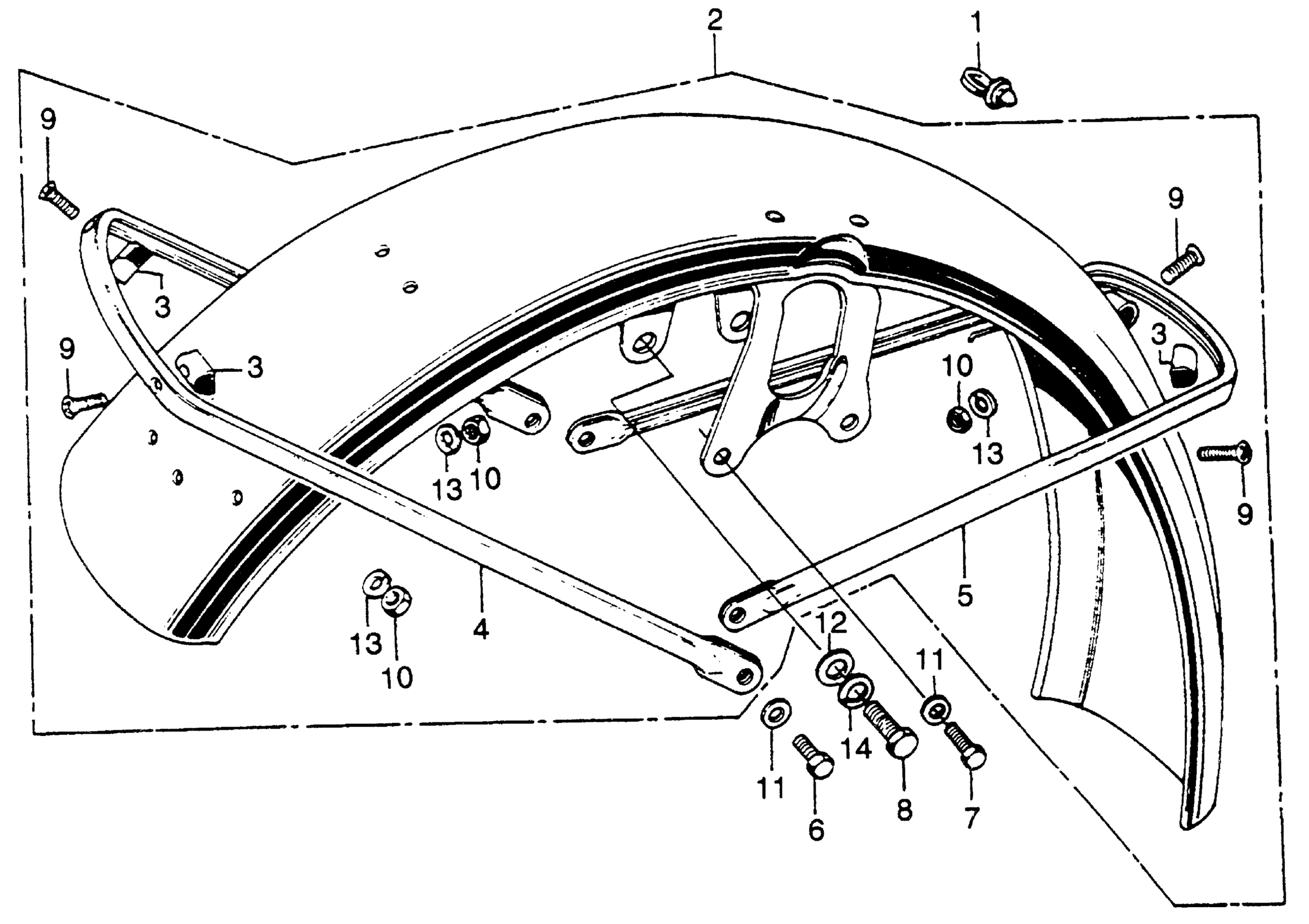

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 FRONT FENDER Diagram

#

Description
Price

1

GROMMET, CABLE | Use from Frame SN 1015593 This part replaces 45451-283-000.

45451-367-690

$4.04

1

GROMMET, WIRE | Use from Frame SN 1015593

45451-367-690

$4.04

2

FENDER, FR. *MRCR2* (CHROME PLATING) | Use up to Frame SN 1015592 This part replaces 61100-300-030XW.

61100-300-040XW

Unavailable

2

FENDER, FR. *MRCR2* (CHROME PLATING) | Use up to Frame SN 1015592

61100-300-040XW

Unavailable

3

PIECE, FENDER MOUNT

61102-300-000

$6.26

4

STAY A, FR. FENDER (NOT AVAILABLE) This part replaces 61106-300-000.

61111-323-000

Unavailable

4

STAY A, FR. FENDER (NOT AVAILABLE)

61111-323-000

Unavailable

5

BOLT, HEX. (6X16) (NOT AVAILABLE) This part replaces 61107-300-000.

61112-323-000

Unavailable

5

BOLT, HEX. (6X16) (NOT AVAILABLE)

61112-323-000

Unavailable

6

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

6

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

6

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

6

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

6

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

6

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

7

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

7

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

8

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

8

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

9

SCREW, OVAL (5X25)

93700-05025-0B

$1.49

10

NUT, HEX. (5MM)

94001-05020-0S

$0.93

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

WASHER, PLAIN (8MM)

94101-08000

$1.49

13

WASHER, SPRING (5MM)

94111-05000

$1.49

14

WASHER, SPRING (8MM)

94111-08000

$1.49
