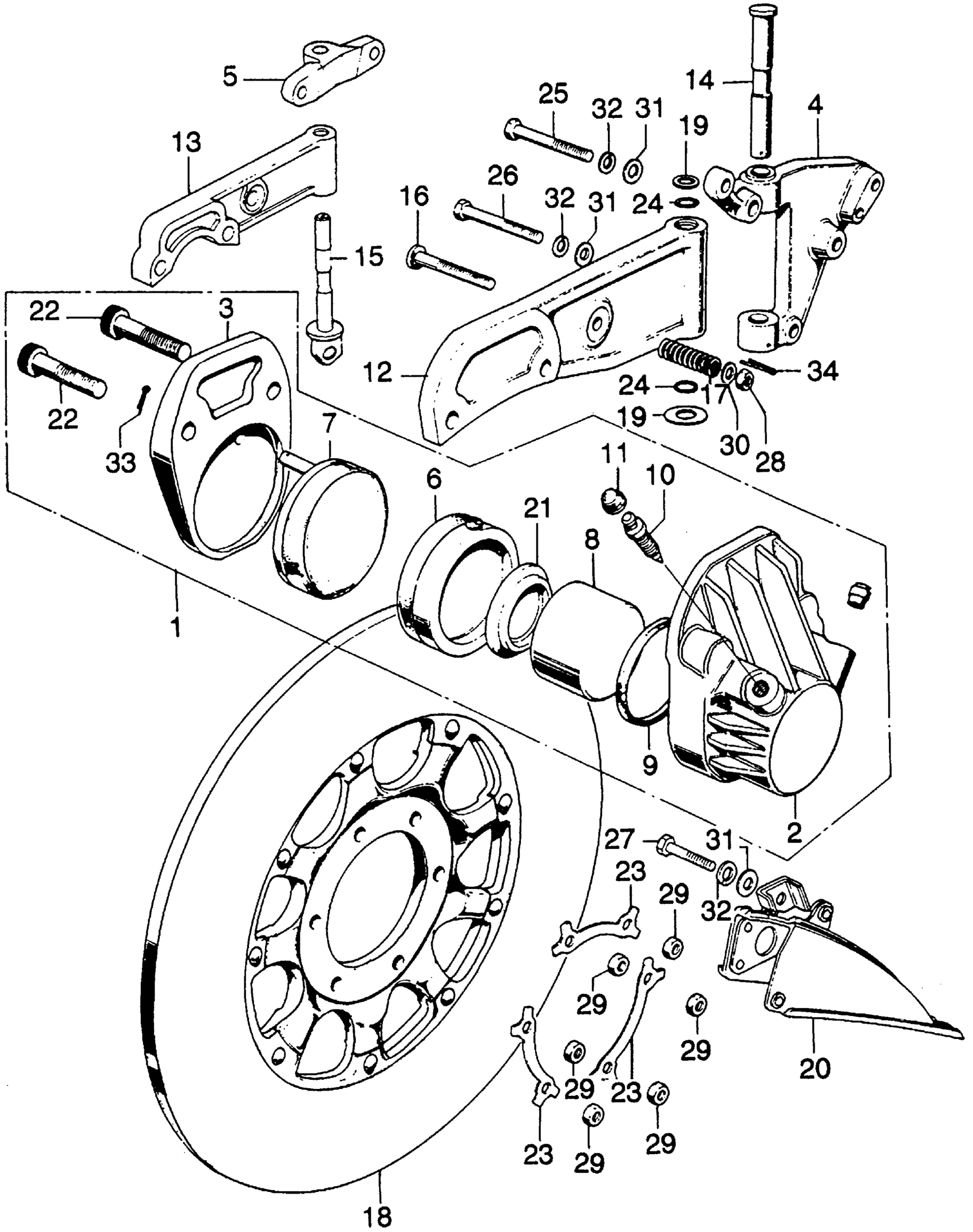

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 FRONT BRAKE CALIPER + DISC Diagram

#

Description
Price

NI

PAD B, FR. BRAKE This part replaces 45106-341-000.

45106-341-305

Unavailable

1

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE) This part replaces 45100-300-023.

45100-341-003

Unavailable

1

CALIPER ASSY. (TOKIKO) (NOT AVAILABLE)

45100-341-003

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE) This part replaces 45101-300-033.

45101-300-053

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE) This part replaces 45101-300-043.

45101-300-053

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE)

45101-300-053

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE) This part replaces 45102-300-033.

45102-300-043

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE)

45102-300-043

Unavailable

4

JOINT, CALIPER HOLDER (NOT AVAILABLE)

45104-300-040

Unavailable

6

PAD A This part replaces 45105-300-040.

45105-341-305

Unavailable

6

PAD A This part replaces 45105-341-000.

45105-341-305

Unavailable

7

PAD B, FR. BRAKE This part replaces 45106-300-040.

45106-341-305

Unavailable

7

PAD B, FR. BRAKE This part replaces 45106-341-000.

45106-341-305

Unavailable

8

PISTON (TOKIKO) (NOT AVAILABLE)

45107-300-003

Unavailable

9

SEAL, PISTON (TOKIKO)

45108-300-003

$11.70

10

BLEEDER

45109-300-003

Unavailable

11

CAP, BLEEDER SCREW

45110-300-003

$3.26

12

HOLDER, CALIPER

45115-300-030

Unavailable

14

PIN, CALIPER HOLDER (NOT AVAILABLE)

45116-300-030

Unavailable

16

BOLT, CALIPER ADJUSTING This part replaces 45117-300-020.

45117-341-700

$5.85

16

BOLT, CALIPER ADJUSTING

45117-341-700

$5.85

17

SPRING, CALIPER ADJ.

45119-300-020

$5.19

18

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45120-300-040.

45120-392-000

Unavailable

18

DISK, FR. BRAKE (NOT AVAILABLE) This part replaces 45120-341-000.

45120-392-000

Unavailable

19

WASHER A, CALIPER (0.1MM) (NOT AVAILABLE)

45131-300-305

Unavailable

19

WASHER B (0.2MM) (NOT AVAILABLE)

45132-300-305

Unavailable

21

SEAT, PAD (NOT AVAILABLE)

45151-300-000

Unavailable

22

BOLT, CALIPER MOUNT (TOKIKO)

90165-300-023

$11.02

23

WASHER A8, TONGUED (NOT AVAILABLE) This part replaces 90522-300-010.

94108-18000

Unavailable

23

WASHER A8, TONGUED (NOT AVAILABLE)

94108-18000

Unavailable

24

O-RING (10X1.7) (NOT AVAILABLE)

91259-300-000

Unavailable

25

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

25

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

26

BOLT, HEX. (8X50) This part replaces 92000-08050-0A.

92101-08050-0A

$1.97

26

BOLT, HEX. (8X50)

92101-08050-0A

$1.97

28

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

28

NUT, HEX. (6MM)

94001-06200-0S

$1.49

28

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

PIN, SPLIT (1.6X12)

94201-16120

$1.49

34

PIN, SPLIT (2.5X30)

94201-25300

$1.49
