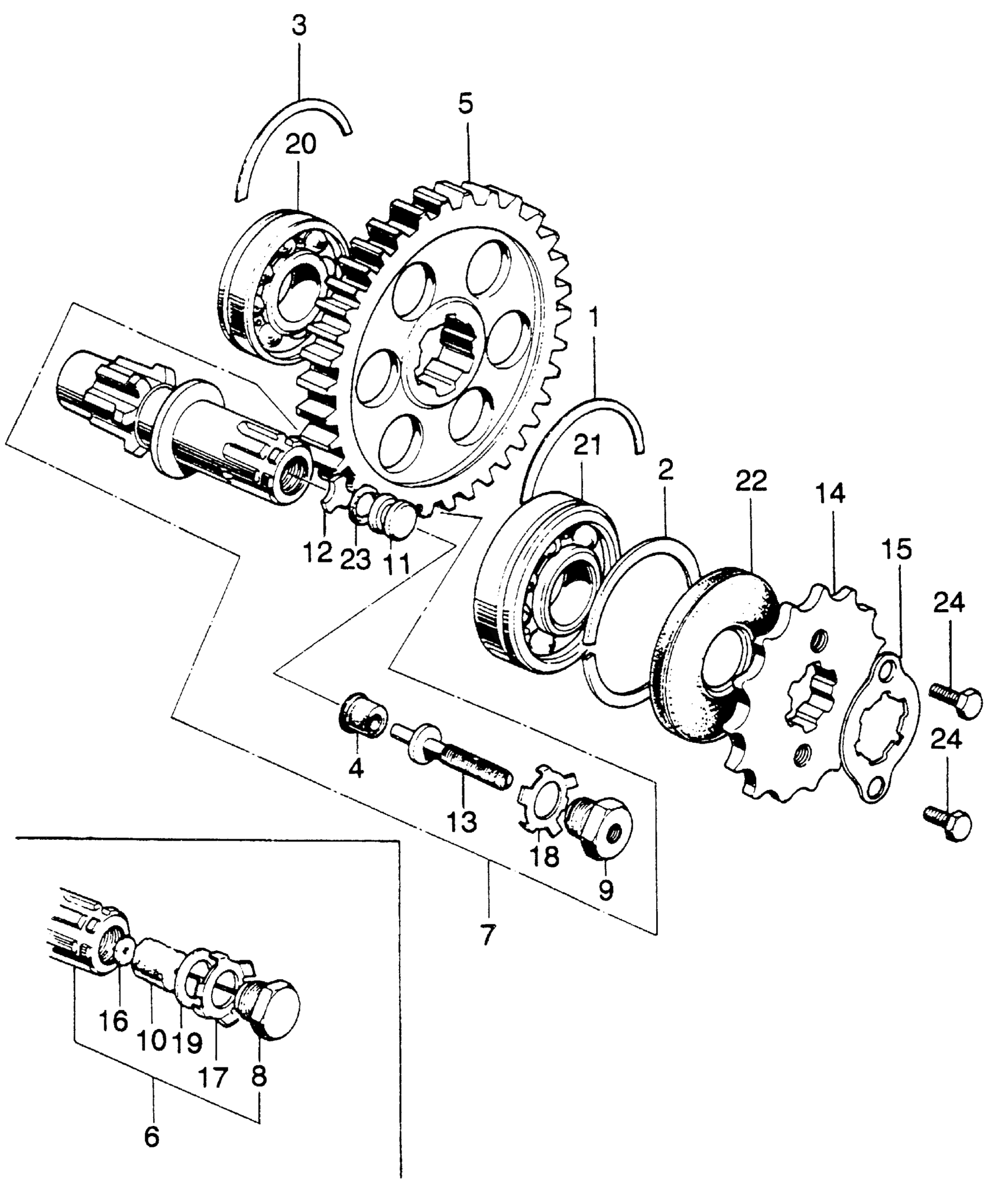

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 FINAL DRIVEN SHAFT + DRIVE SPROCKET Diagram

#

Description
Price

1

RING, BEARING SET (62MM) (NOT AVAILABLE)

13491-259-000

Unavailable

3

RING A, BALL BEARING SETTING (NOT AVAILABLE) | Use up to Engine SN 1033000

13495-300-000

Unavailable

4

RUBBER, ORIFICE (NOT AVAILABLE) | Use from Engine SN 1026144

23314-319-300

Unavailable

5

GEAR, FINAL DRIVEN (56T)

23511-300-020

Unavailable

6

SHAFT, FINAL DRIVEN | Use from Engine SN 1003528 to 1026143 This part replaces 23520-300-010.

23520-300-020

Unavailable

6

SHAFT, FINAL DRIVEN | Use from Engine SN 1003528 to 1026143

23520-300-020

Unavailable

6

SHAFT, FINAL DRIVEN (NOT AVAILABLE) | Use up to Engine SN 1003527

23520-300-305

Unavailable

7

SHAFT, FINAL DRIVEN | Use from Engine SN 1026144

23520-300-020

Unavailable

8

PLUG, FINAL SHAFT (NOT AVAILABLE) | Use up to Engine SN 1026143

23523-300-300

Unavailable

9

PLUG, FINAL SHAFT (NOT AVAILABLE) | Use from Engine SN 1026144

23523-300-310

Unavailable

10

ELEMENT, OIL RESERVE | Use up to Engine SN 1026143

23524-300-300

$3.07

11

ELEMENT, OIL RESERVE (NOT AVAILABLE) | Use from Engine SN 1026144

23524-300-310

Unavailable

13

SCREW, ADJUSTING (NOT AVAILABLE) | Use from Engine SN 1026144

23526-300-300

Unavailable

14

SPROCKET, DRIVE (17T) | Use from Engine SN 1003528 This part replaces 23801-300-000.

23801-300-010

Unavailable

14

SPROCKET, DRIVE (17T) (NOT AVAILABLE) | Use from Engine SN 1003528

23801-300-010

Unavailable

14

SPROCKET, DRIVE (17T) (NOT AVAILABLE) | Use up to Engine SN 1003527 This part replaces 23801-300-305.

23801-333-000

Unavailable

14

SPROCKET, DRIVE (17T) (NOT AVAILABLE) | Use up to Engine SN 1003527 This part replaces 23801-300-315.

23801-333-000

Unavailable

14

SPROCKET, DRIVE (17T) (NOT AVAILABLE) | Use up to Engine SN 1003527

23801-333-000

Unavailable

15

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

16

WASHER, FELT SET (NOT AVAILABLE) | Use up to Engine SN 1026143

90405-300-000

Unavailable

17

WASHER, DRIVEN (NOT AVAILABLE) | (Optional). Use up to Engine SN 1026143

90404-300-810

Unavailable

17

WASHER, DRAIN PLUG (12MM) | Use up to Engine SN 1026143 This part replaces 90407-231-000.

94109-12000

$1.49

17

GASKET, DRAIN PETCOCK (12.5X20) | Use up to Engine SN 1026143

90407-259-000

$2.92

17

WASHER, DRAIN PLUG (12MM) | Use up to Engine SN 1026143

94109-12000

$1.49

18

WASHER, LOCK (14MM) (NOT AVAILABLE) | Use up to Engine SN 1026143 This part replaces 90433-300-000.

90433-319-000

Unavailable

18

WASHER, LOCK (14MM) (NOT AVAILABLE) | Use up to Engine SN 1026143

90433-319-000

Unavailable

19

WASHER, LOCK (14MM) (NOT AVAILABLE) | Use from Engine SN 1026144

90433-300-010

Unavailable

20

BEARING This part replaces 91002-300-008.

91003-612-004

Unavailable

21

BEARING, RADIAL BALL (6305) (NTN CORP.) This part replaces 91003-259-000.

91003-KY2-003

Unavailable

22

OIL SEAL (25X62X7)

91205-300-005

Unavailable

23

O-RING (6.5X3.1) | Use from Engine SN 1026144 This part replaces 91313-300-003.

91312-415-000

Unavailable

24

BOLT, HEX. (6X12) | Use up to Engine SN 1003527 This part replaces 92000-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X16) | Use from Engine SN 1003528 This part replaces 92000-06016.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) | Use from Engine SN 1003528 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) | Use from Engine SN 1003528 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) | Use from Engine SN 1003528 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X12) | Use up to Engine SN 1003527 This part replaces 92101-06012.

92101-06012-0A

$1.49

24

BOLT, HEX. (6X12) | Use up to Engine SN 1003527

92101-06012-0A

$1.49

24

BOLT, HEX. (6X16) | Use from Engine SN 1003528

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) | Use from Engine SN 1003528 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49
