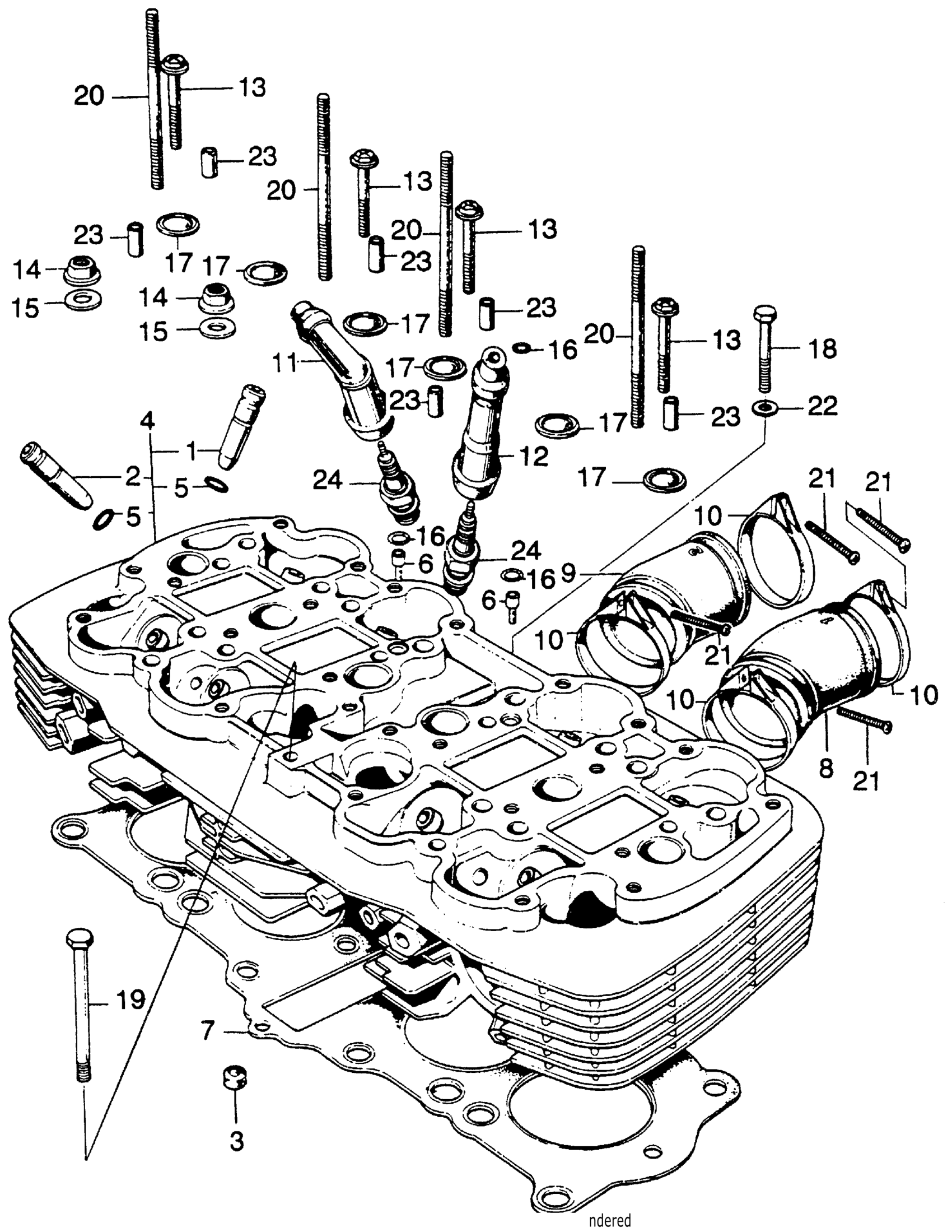

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 CYLINDER HEAD + INSULATOR Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12025-300-300

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE) | Use up to Engine SN 1014995 This part replaces 12027-300-300.

12027-300-310

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12027-300-310

Unavailable

3

RUBBER, INSERT | Use up to Engine SN 1026143 This part replaces 12195-300-000.

12620-286-000

$5.85

3

RUBBER, INSERT | Use from Engine SN 1026144 This part replaces 12195-300-000.

12620-286-000

$5.85

3

RUBBER, INSERT | Use up to Engine SN 1026143

12620-286-000

$5.85

3

RUBBER, INSERT | Use from Engine SN 1026144

12620-286-000

$5.85

4

CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 1026143 This part replaces 12200-300-040.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12020-300-060.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-300-060.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-300-070.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-300-090.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-300-395.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-300-100.

12200-300-405

Unavailable

4

CYLINDER HEAD (NOT AVAILABLE)

12200-300-405

Unavailable

5

CLIP, VALVE GUIDE

12211-250-310

$4.39

6

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12238-300-300

Unavailable

7

GASKET, CYLINDER HEAD (AS) | Use up to Engine SN 1026143 This part replaces 12251-300-020.

12251-300-307

Unavailable

7

GASKET, CYLINDER HEAD (AS) This part replaces 12251-300-030.

12251-300-307

Unavailable

7

GASKET, CYLINDER HEAD (NOT AVAILABLE)

12020-300-305

Unavailable

7

GASKET, CYLINDER HEAD (AS) This part replaces 12251-300-040.

12251-300-307

Unavailable

7

GASKET, CYLINDER HEAD (AS) This part replaces 12251-300-050.

12251-300-307

Unavailable

7

GASKET, CYLINDER HEAD (AS) This part replaces 12251-300-354.

12251-300-307

Unavailable

8

INSULATOR A, CARBURETOR

16211-300-305

Unavailable

9

INSULATOR B, CARBURETOR (NOT AVAILABLE)

16212-300-305

Unavailable

10

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-230-000.

95018-46250

$7.64

10

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-300-000.

95018-46250

$7.64

11

CAP ASSY. This part replaces 30700-300-000.

30700-GAR-003

$19.81

11

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

11

CAP ASSY. This part replaces 30700-300-010.

30700-GAR-003

$19.81

11

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

11

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

12

CAP ASSY. This part replaces 30710-300-000.

30700-MW3-003

$14.34

12

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

12

CAP ASSY. This part replaces 30710-300-010.

30700-MW3-003

$14.34

12

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.34

12

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.34

13

BOLT, FLANGE (6X35) This part replaces 90049-300-000.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) This part replaces 90146-371-980.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) This part replaces 95700-06035.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

13

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

14

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

14

NUT, FLANGE (8MM)

94050-08000

$1.49

15

WASHER, THRUST (14MM)

90485-035-000

$2.92

16

O-RING (3.7X1.7) (NOT AVAILABLE) | Use up to Engine SN 1000563

91317-300-003

$2.54

17

RUBBER, SEALING

91318-300-013

$4.85

18

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

18

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

18

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

19

BOLT, HEX. (6X90) | Use from Engine SN 1026144 This part replaces 92000-06090.

92101-06090-0A

Unavailable

19

BOLT, HEX. (6X90) | Use from Engine SN 1026144 This part replaces 92000-06090-0A.

92101-06090-0A

Unavailable

19

BOLT, HEX. (6X90) | Use from Engine SN 1026144

92101-06090-0A

Unavailable

20

BOLT, STUD (6X56) (NOT AVAILABLE)

92700-06056

Unavailable

21

SCREW, PAN (4X22)

93500-04022-0A

$1.49

22

WASHER, PLAIN (6MM) | Use up to Engine SN 1064902 This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) | Use up to Engine SN 1064902 This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) | Use up to Engine SN 1064902

94101-06800

$1.49

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-38710.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58711.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58717-S.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58720.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98069-58721.

98069-58717

$2.44

24

SPARK PLUG (D8EA) (NGK) This part replaces 98079-58721.

98069-58717

$2.44
