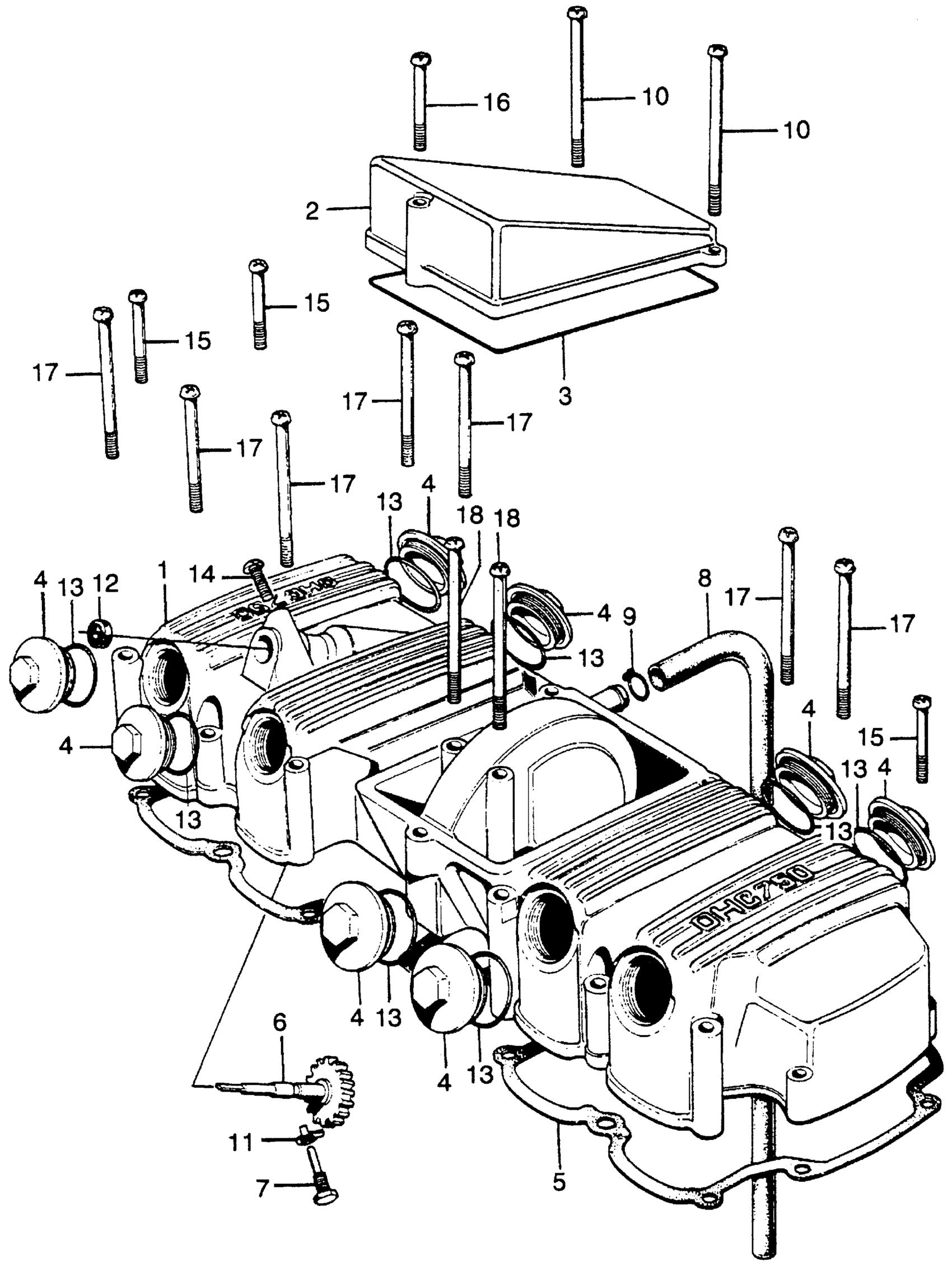

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 1010337 This part replaces 12310-300-030.

12310-300-060

Unavailable

1

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12310-300-040.

12310-300-060

Unavailable

1

COVER, CYLINDER HEAD (NOT AVAILABLE) This part replaces 12310-300-050.

12310-300-060

Unavailable

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-300-060

Unavailable

2

COVER, HEAD BREATHER (NOT AVAILABLE) | Use up to Engine SN 1010337

12321-300-010

Unavailable

2

COVER, HEAD BREATHER | Use from Engine SN 1010338 This part replaces 12321-300-020.

12321-300-305

Unavailable

2

COVER, HEAD BREATHER | Use from Engine SN 1010338 This part replaces 12321-300-030.

12321-300-305

Unavailable

2

COVER, HEAD BREATHER (NOT AVAILABLE) | Use from Engine SN 1010338

12321-300-305

Unavailable

3

GASKET, BREATHER COVER (NOT AVAILABLE)

12329-300-020

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-300-030.

12391-300-306

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-300-040.

12391-300-306

Unavailable

5

GASKET, CYLINDER HEAD COVER

12391-300-306

Unavailable

6

GEAR, TACHOMETER

12431-300-010

Unavailable

7

BOLT, TACHOMETER GEAR STOPPER (NOT AVAILABLE)

12435-300-003

Unavailable

8

TUBE C, BREATHER (NOT AVAILABLE) This part replaces 15763-300-000.

15763-300-303

Unavailable

9

CLIP, BREATHER TUBE

15772-292-010

$2.92

10

SCREW, PAN (6X75) (NOT AVAILABLE)

90018-300-000

Unavailable

11

WASHER, LOCK (NOT AVAILABLE)

90439-300-000

Unavailable

12

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

12

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

13

O-RING (30.8MM)

91302-001-020

$3.75

14

SCREW, PAN (5X25)

93500-05025-0A

$1.49

15

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

15

SCREW, PAN (6X40)

93500-06040-0A

$1.49

16

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

16

SCREW, PAN (6X50)

93500-06050-0A

$1.49

17

SCREW, PAN (6X60)

93500-06060-0A

$1.49

17

SCREW, PAN (6X60) This part replaces 93500-06063.

93500-06060-0A

$1.49

18

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

18

SCREW, PAN (6X80)

93500-06080-0A

$1.49
