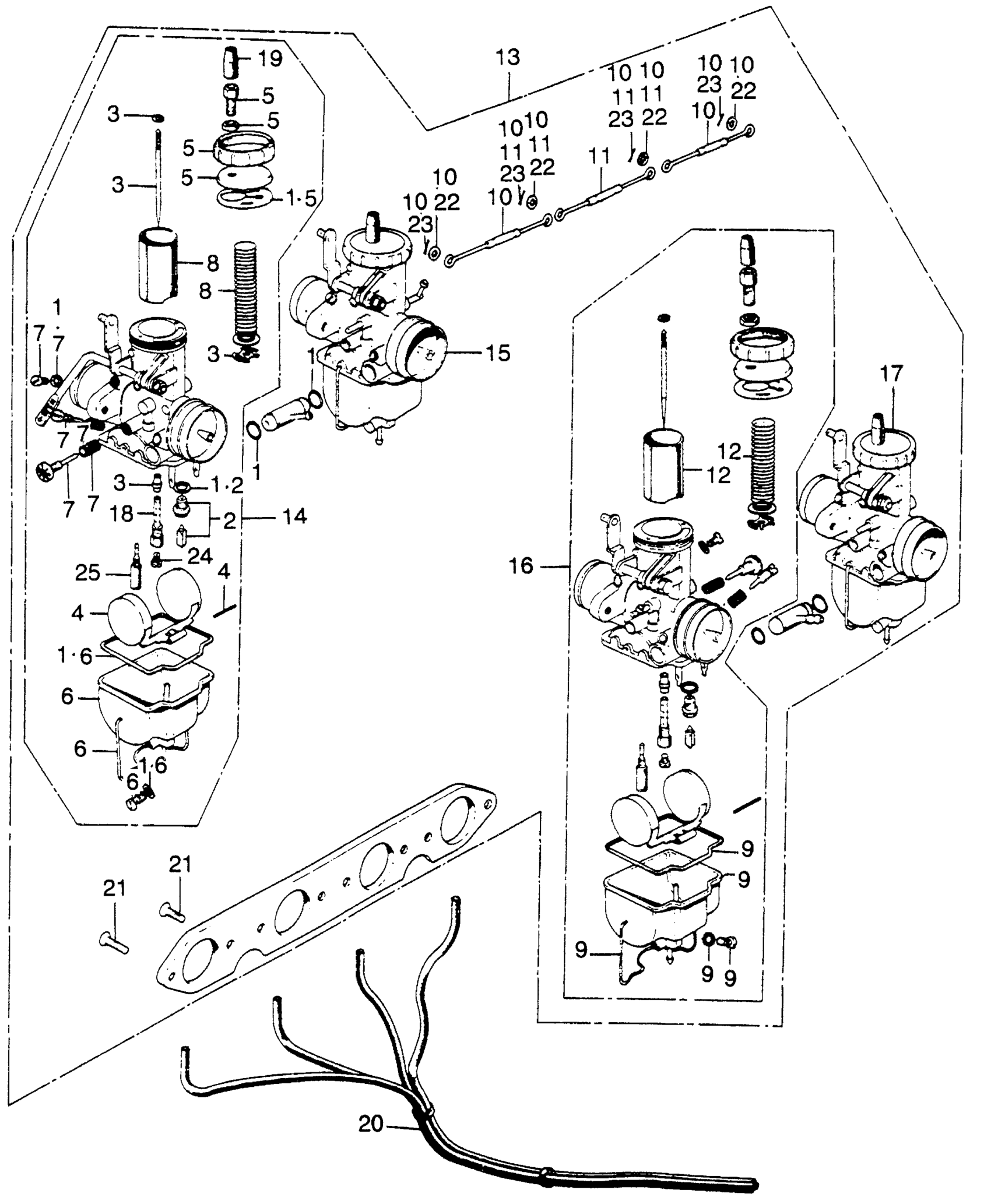

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 CARBURETOR K0 Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-300-004.

16010-300-305

$27.30

1

GASKET SET

16010-300-305

$27.30

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-300-004

Unavailable

4

FLOAT SET

16013-300-004

Unavailable

5

TOP SET (NOT AVAILABLE)

16014-300-004

Unavailable

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-300-004

Unavailable

7

SCREW SET A (NOT AVAILABLE)

16016-300-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-300-004

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE)

16023-300-004

Unavailable

10

ROD SET A, CHOKE (NOT AVAILABLE)

16025-300-004

Unavailable

11

ROD SET B, CHOKE (NOT AVAILABLE)

16026-300-004

Unavailable

12

VALVE SET B, THROTTLE (NOT AVAILABLE)

16027-300-004

Unavailable

13

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-300-303.

16100-300-313

Unavailable

13

CARBURETOR ASSY. (NOT AVAILABLE)

16100-300-313

Unavailable

14

CARBURETOR ASSY. A (NOT AVAILABLE) | Use up to Engine SN 1017629 This part replaces 16101-300-014.

16101-300-313

Unavailable

14

CARBURETOR ASSY. A (NOT AVAILABLE) | Use up to Engine SN 1033828 This part replaces 16101-300-303.

16101-300-313

Unavailable

14

CARBURETOR ASSY. A (NOT AVAILABLE)

16101-300-313

Unavailable

15

CARBURETOR ASSY. B (NOT AVAILABLE) | Use up to Engine SN 1017629 This part replaces 16102-300-014.

16102-300-313

Unavailable

15

CARBURETOR ASSY. B (NOT AVAILABLE) | Use up to Engine SN 1033828 This part replaces 16102-300-303.

16102-300-313

Unavailable

15

CARBURETOR ASSY. B (NOT AVAILABLE)

16102-300-313

Unavailable

16

CARBURETOR ASSY. C (NOT AVAILABLE) | Use up to Engine SN 1017629 This part replaces 16103-300-014.

16103-300-313

Unavailable

16

CARBURETOR ASSY. C (NOT AVAILABLE) | Use up to Engine SN 1033828 This part replaces 16103-300-303.

16103-300-313

Unavailable

16

CARBURETOR ASSY. C (NOT AVAILABLE)

16103-300-313

Unavailable

17

CARBURETOR ASSY. D (NOT AVAILABLE) | Use up to Engine SN 1017629 This part replaces 16104-300-014.

16104-300-313

Unavailable

17

CARBURETOR ASSY. D (NOT AVAILABLE) | Use up to Engine SN 1033828 This part replaces 16104-300-303.

16104-300-313

Unavailable

17

CARBURETOR ASSY. D (NOT AVAILABLE) | Use up to Engine SN 1044812

16104-300-313

Unavailable

18

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-300-004

Unavailable

19

CAP, RUBBER

16194-300-304

Unavailable

20

TUBE, OVERFLOW (NOT AVAILABLE) This part replaces 16290-300-000.

16290-300-010

Unavailable

20

TUBE, OVERFLOW (NOT AVAILABLE)

16290-300-010

Unavailable

21

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

21

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

22

WASHER, PLAIN (5MM)

94101-05000

$1.49

23

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$1.49

23

PIN, SPLIT (1.0MM)

94201-10150

$1.49

24

JET, MAIN (#140) (NOT AVAILABLE)

99114-246-1400

Unavailable

25

JET, SLOW (#40) (NOT AVAILABLE)

99124-300-0400

Unavailable
