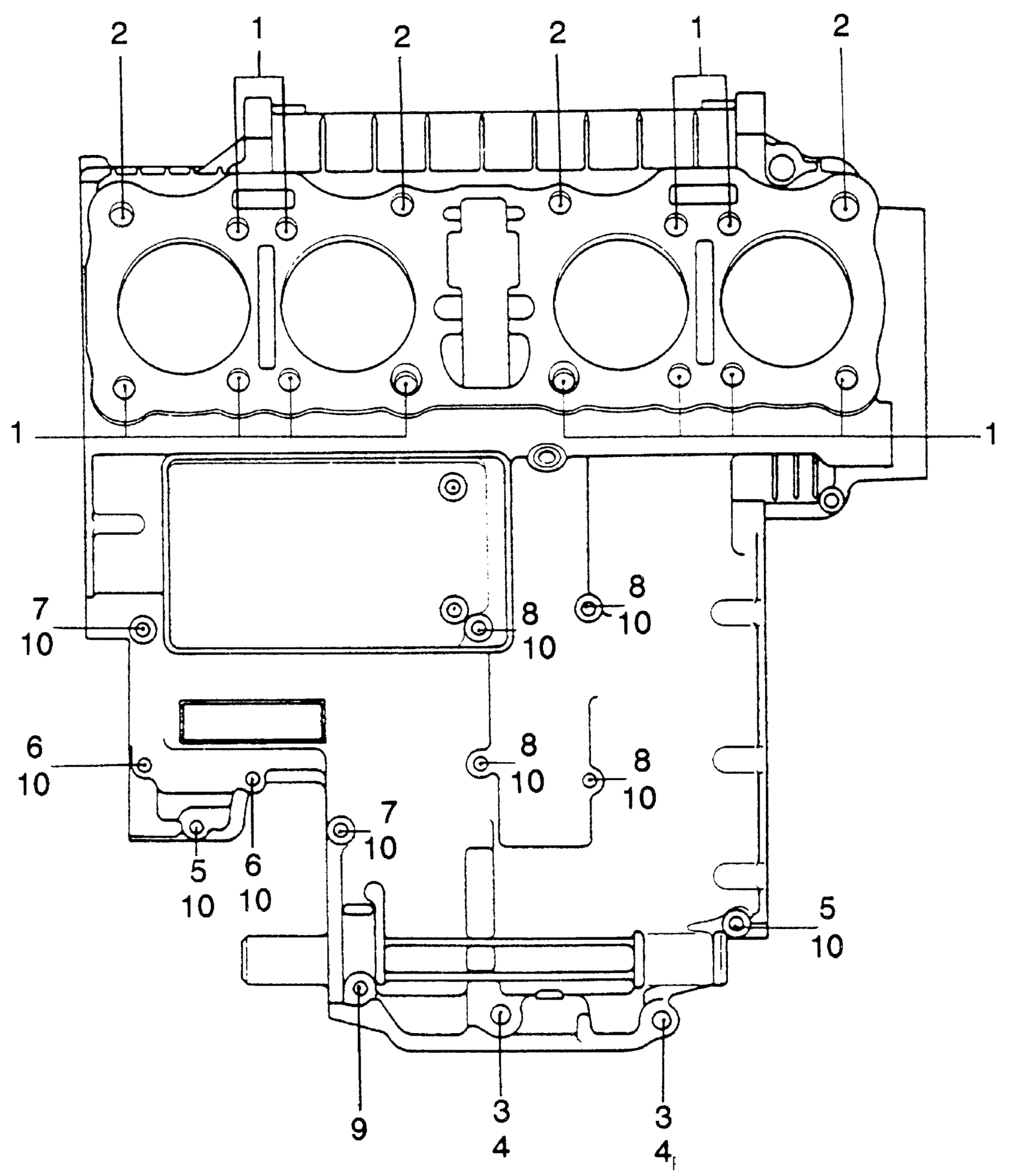

Honda CB750KA MOTORCYCLE, JPN, VIN# CB750-1000001 BOLT + WASHER (UPPER CRANKCASE) Diagram

#

Description
Price

1

BOLT A, CYLINDER STUD This part replaces 90033-300-020.

90033-300-030

Unavailable

1

BOLT A, CYLINDER STUD (NOT AVAILABLE)

90033-300-030

Unavailable

1

BOLT A, CYLINDER STUD This part replaces 90033-300-040.

90033-300-030

Unavailable

2

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-020.

90034-300-040

Unavailable

2

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90034-300-030.

90034-300-040

Unavailable

2

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-300-040

Unavailable

3

BOLT, HEX. (8X56) (NOT AVAILABLE)

90046-300-000

Unavailable

4

WASHER, THRUST (14MM)

90485-035-000

$2.92

5

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

5

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

6

BOLT, HEX. (6X56) (NOT AVAILABLE) This part replaces 92000-06056.

92000-06056-0A

Unavailable

6

BOLT, HEX. (6X56) (NOT AVAILABLE)

92000-06056-0A

Unavailable

7

BOLT, HEX. (6X80) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06080.

92101-06080-0A

Unavailable

8

BOLT, HEX. (6X100) This part replaces 92000-06100.

92101-06100-0A

Unavailable

8

BOLT, HEX. (6X100) This part replaces 92000-06100-0A.

92101-06100-0A

Unavailable

9

BOLT, HEX. (10X82) (NOT AVAILABLE) | Use from Engine SN 1000141

90048-300-000

Unavailable

10

WASHER, PLAIN (6MM) | Use up to Engine SN 1064902 This part replaces 94101-06000.

94101-06800

$1.49

10

WASHER, PLAIN (6MM) | Use up to Engine SN 1064902 This part replaces 94101-06080.

94101-06800

$1.49

10

WASHER, PLAIN (6MM) | Use up to Engine SN 1064902

94101-06800

$1.49
