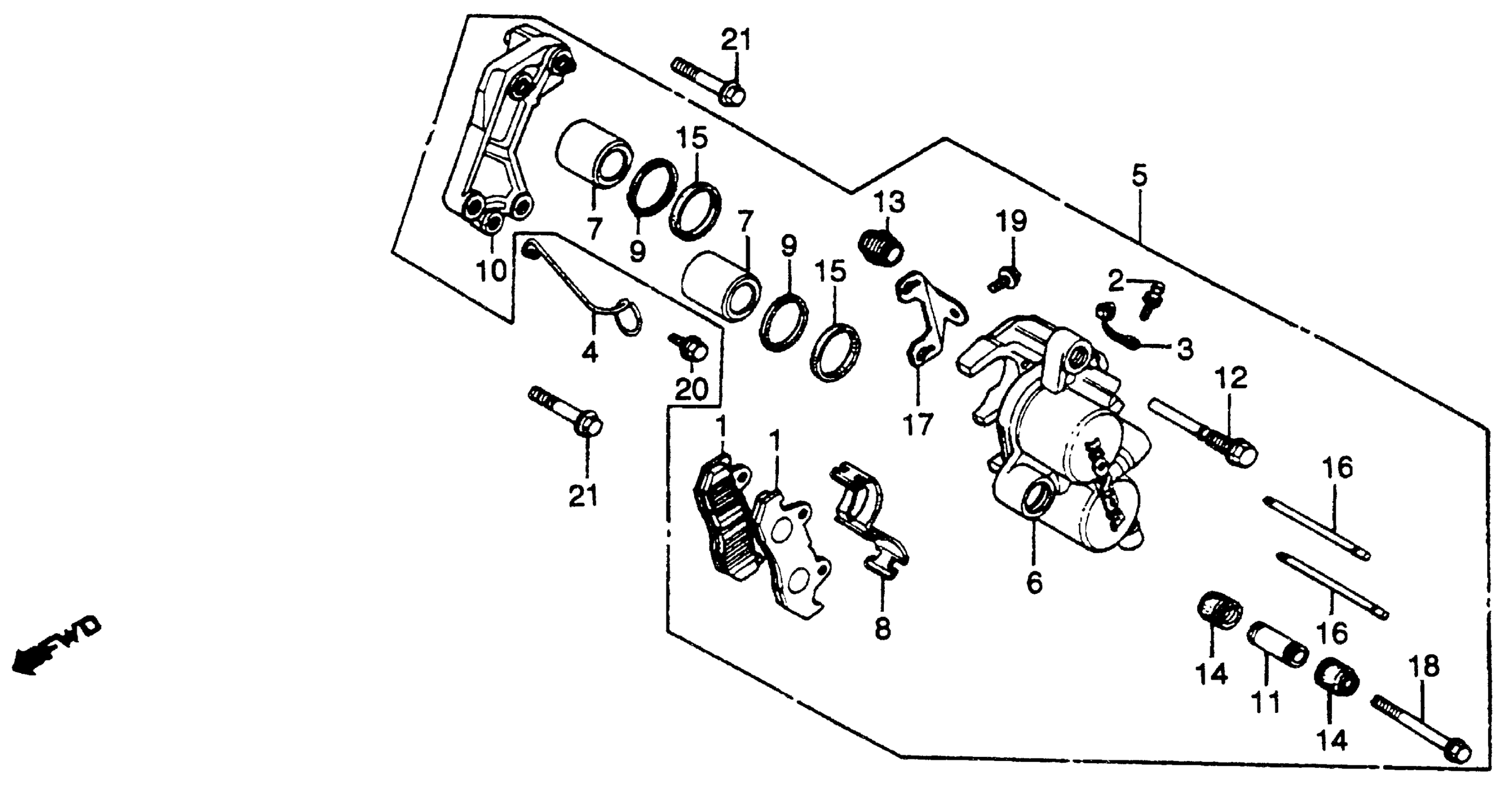

Honda CB750KA (82) 750 FOUR K, JPN, VIN# JH2RC010-CM300003 TO JH2RC010-CM303183 CB750K FRONT BRAKE CALIPER 1 82 Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-MA3-405.

06435-MC7-405

Unavailable

NI

PAD SET This part replaces 431A0-MA3-004.

06435-MC7-405

Unavailable

1

PAD, FR. | Use up to Frame SN CM301521 This part replaces 43105-MA3-004.

45105-MM9-782

$24.40

1

PAD, FR. | Use up to Frame SN CM301521 This part replaces 43105-MA3-007.

45105-MM9-782

$24.40

1

PAD, FR. | Use up to Frame SN CM301521 This part replaces 45105-MK7-672.

45105-MM9-782

$24.40

2

SCREW, BLEEDER | Use up to Frame SN CM301521

43352-568-003

$7.95

3

CAP, BLEEDER | Use up to Frame SN CM301521

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE) | Use up to Frame SN CM301521

44832-MA3-000

Unavailable

5

CALIPER, L. FR. | Use up to Frame SN CM301521 This part replaces 45100-MA1-006.

45100-MA1-405

Unavailable

5

CALIPER, L. FR. | Use up to Frame SN CM301521 This part replaces 45100-MA1-007.

45100-MA1-405

Unavailable

6

CALIPER, L. | Use up to Frame SN CM301521

45101-MA3-006

Unavailable

7

PISTON | Use up to Frame SN CM301521

45107-MA3-006

$50.26

8

SPRING, PAD | Use up to Frame SN CM301521

45108-MA3-006

$6.28

9

DUST SEAL | Use up to Frame SN CM301521

45109-166-006

$6.41

10

BRACKET, L. (NISSHIN) | Use up to Frame SN CM301521

45110-MA1-006

Unavailable

11

SLEEVE | Use up to Frame SN CM301521

45111-MA3-006

$13.38

12

PIN, BOLT | Use up to Frame SN CM301521

45131-MA3-006

$17.59

13

BOOT B | Use up to Frame SN CM301521

45133-MA3-006

$5.46

14

BOOT, PIN | Use up to Frame SN CM301521

45133-166-016

$3.85

15

SEAL, PISTON | Use up to Frame SN CM301521

45209-166-006

$8.64

16

PIN, HANGER | Use up to Frame SN CM301521

45215-MA3-006

$12.77

17

PLATE | Use up to Frame SN CM301521

45217-MA3-006

$4.45

18

BOLT, FLANGE (8X49) | Use up to Frame SN CM301521 This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

19

BOLT, FLANGE (6X10) | Use up to Frame SN CM301521 This part replaces 95700-06010-00.

95701-06010-00

$1.49

19

BOLT, FLANGE (6X10) | Use up to Frame SN CM301521

95701-06010-00

$1.49

20

BOLT, FLANGE (6X12) | Use up to Frame SN CM301521 This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12) | Use up to Frame SN CM301521

95701-06012-00

$1.62

21

BOLT, FLANGE (10X40) | Use up to Frame SN CM301521 This part replaces 95800-10040-00.

95801-10040-00

$2.19

21

BOLT, FLANGE (10X40) | Use up to Frame SN CM301521

95801-10040-00

$2.19
