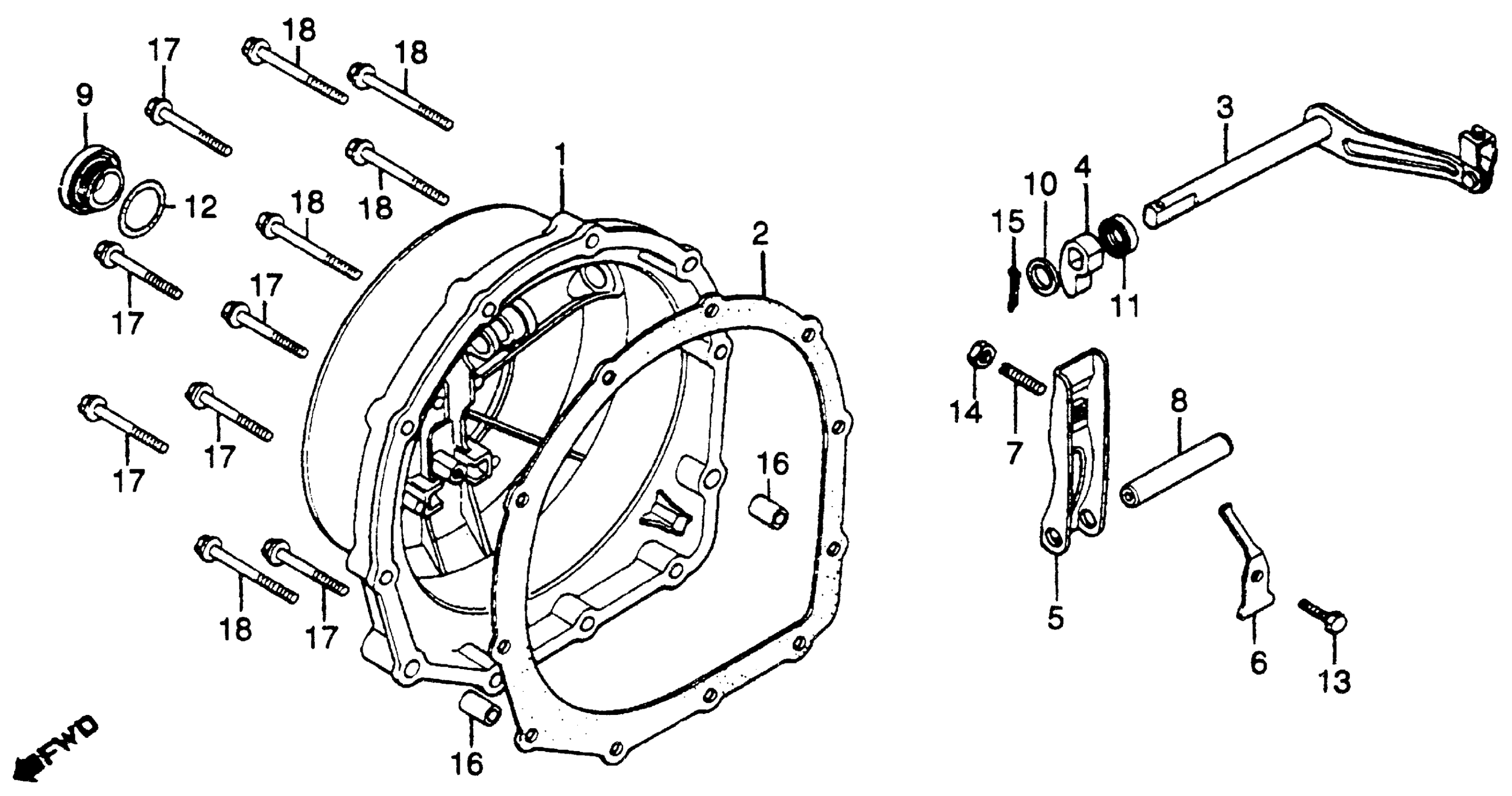

Honda CB750KA (81) 750 FOUR K, JPN, VIN# JH2RC010-BM200001 TO JH2RC010-BM209614 CLUTCH COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11330-425-000

Unavailable

2

GASKET, CLUTCH COVER This part replaces 11396-425-000.

11396-425-306

$19.01

2

GASKET, CLUTCH COVER

11396-425-306

$19.01

3

LEVER, CLUTCH (NOT AVAILABLE)

22710-425-000

Unavailable

4

CAM, CLUTCH LIFTER

22821-107-000

Unavailable

5

LEVER, CLUTCH ADJ. (NOT AVAILABLE)

22831-425-000

Unavailable

6

PLATE, CLUTCH LEVER SETTING (NOT AVAILABLE)

22835-425-000

Unavailable

7

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22841-425-000

Unavailable

8

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-422-000

Unavailable

9

CAP, CLUTCH ADJUSTING (NOT AVAILABLE)

90042-422-000

Unavailable

10

WASHER (10MM) (NOT AVAILABLE)

90471-333-000

Unavailable

11

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

11

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

12

O-RING (23.5X2.6)

91305-425-003

$3.69

12

O-RING (23.5X2.6) This part replaces 91305-714-000.

91305-425-003

$3.69

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

PIN, COTTER (2.0X15)

94201-20150

$1.49

16

PIN A, DOWEL (8X14)

94301-08140

$2.25

17

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

17

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

18

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

18

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
