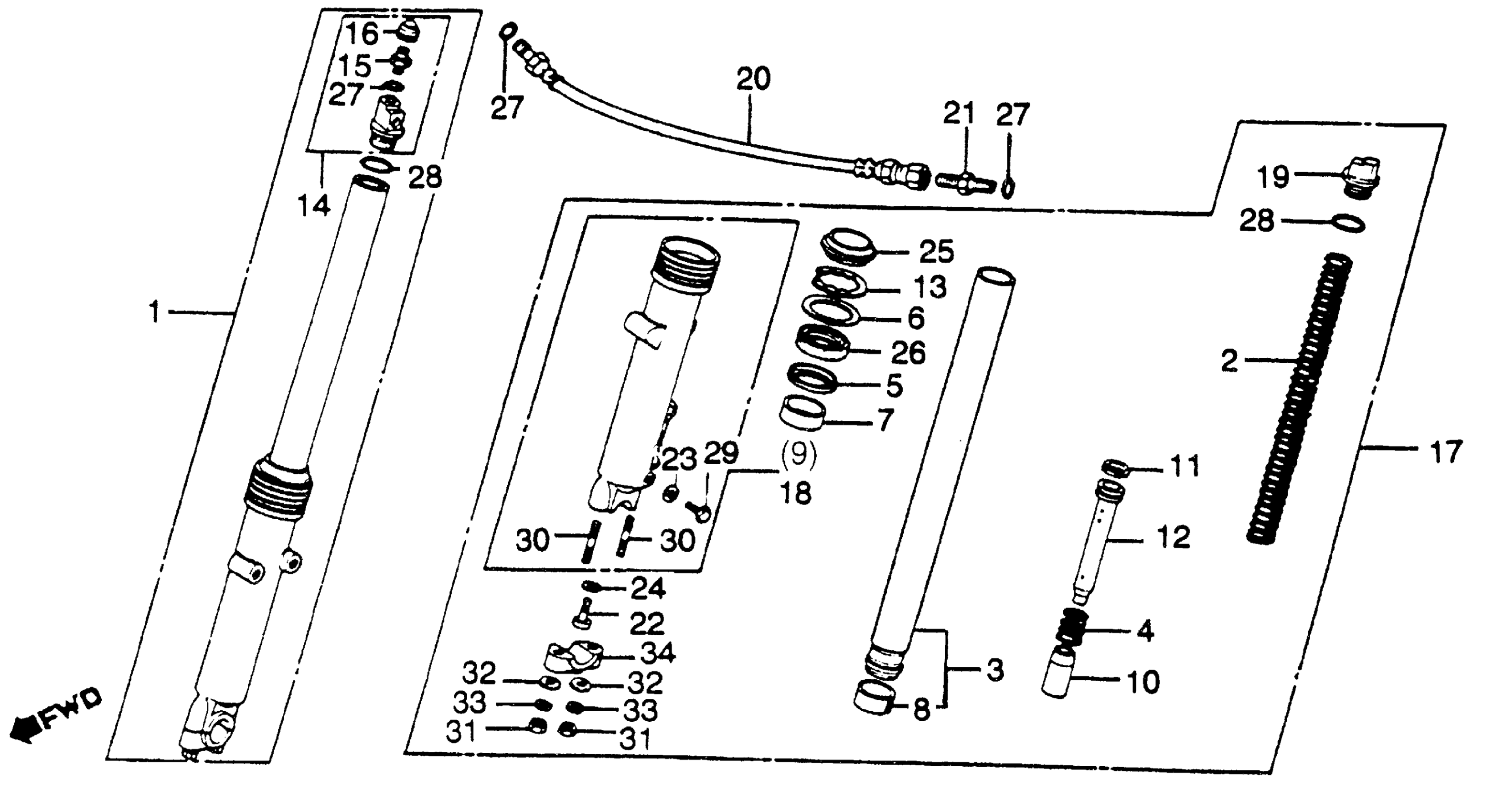

Honda CB750KA (81) 750 FOUR K, JPN, VIN# JH2RC010-BM200001 TO JH2RC010-BM209614 CB750K FRONT FORK 81-82 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE) | Use up to Frame SN BM201110

51400-MA4-671

Unavailable

1

FORK ASSY., R. FR. (SHOWA) | Use from Frame SN BM201111

51400-MA4-672

Unavailable

2

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-MA4-671

Unavailable

3

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-MA4-671

Unavailable

4

SPRING, FR. FORK REBOUND

51412-340-000

$4.47

5

RING, BACK-UP

51412-422-003

$6.96

5

RING, BACK-UP This part replaces 51412-422-405.

51412-422-003

$6.96

5

RING, BACK-UP This part replaces 51412-428-315.

51412-422-003

$6.96

6

PLATE, BACK-UP (SHOWA)

51413-469-003

Unavailable

7

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$17.62

8

BUSH, SLIDER (SHOWA)

51415-469-003

Unavailable

9

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-MA4-671

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE) | Use up to Frame SN BM201110

51432-371-003

Unavailable

10

PIECE, OIL LOCK (NOT AVAILABLE) | Use from Frame SN BM201111

51432-461-771

Unavailable

11

RING, PISTON

51437-400-771

$5.86

12

SEAT (LOWER)

51440-425-731

Unavailable

13

CIRCLIP (INNER) (51.5MM)

51447-469-003

$3.89

14

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MA5-671

Unavailable

15

VALVE, AIR (SHOWA)

51456-469-013

$30.27

16

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

17

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE) | Use up to Frame SN BM201110

51500-MA4-671

Unavailable

17

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE) | Use from Frame SN BM201111

51500-MA4-672

Unavailable

18

CASE, L. (LOWER) (SHOWA)

51521-MA4-671

Unavailable

19

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-MA5-671

Unavailable

20

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-461-771

Unavailable

21

CONNECTOR

53139-463-000

Unavailable

22

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$4.77

22

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

24

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

25

DUST SEAL (35MM)

91254-434-003

$12.53

26

OIL SEAL (35X48X11)

91255-KBH-003

$11.89

26

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$11.89

26

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$11.89

27

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.80

27

O-RING (5.8X1.9)

91305-323-000

$2.80

27

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.42

28

O-RING (25.7X2.8)

91356-428-003

$3.35

29

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.25

29

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

29

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

30

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.45

30

BOLT, STUD (8X50)

92900-08028-3B

$1.45

31

NUT, HEX. (8MM)

94030-08000

$0.97

32

WASHER, PLAIN (8MM)

94101-08000

$0.75

33

WASHER, SPRING (8MM)

94111-08000

$0.90

34

HOLDER 1C, FR. FORK AXLE

95014-41000

$12.93
