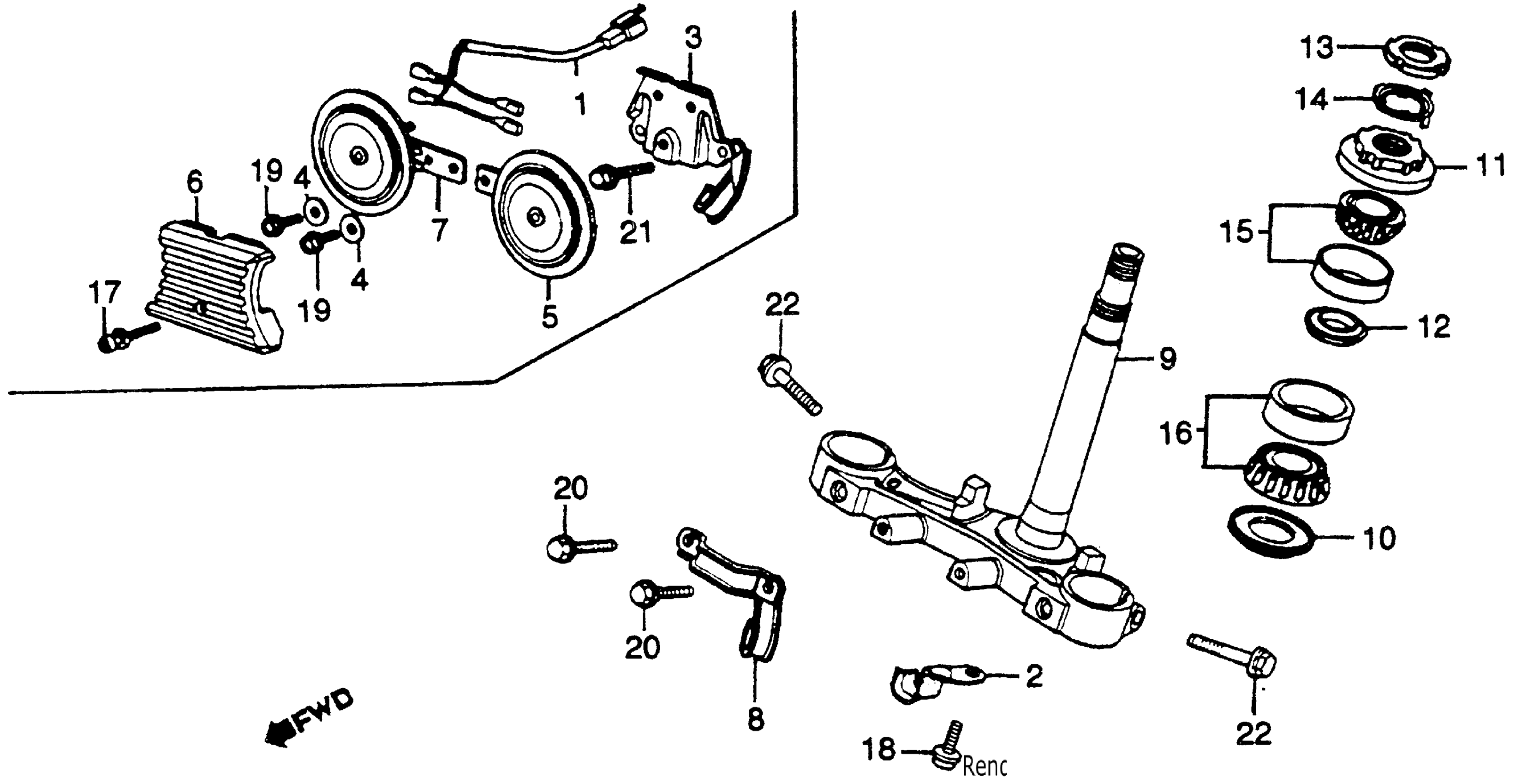

Honda CB750KA (80) 750 FOUR K, JPN, VIN# RC01-2100005 TO RC01-2116490 STEERING STEM + HORN Diagram

CLIP A, BRAKE HOSE (NOT AVAILABLE)

45127-425-000

Unavailable

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-425-770ZA

Unavailable

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

HOLDER, GREASE

53223-371-010

Unavailable

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (10X35) This part replaces 95700-10035-07.

95701-10035-07

$2.07

BOLT, FLANGE (10X35)

95701-10035-07

$2.07
