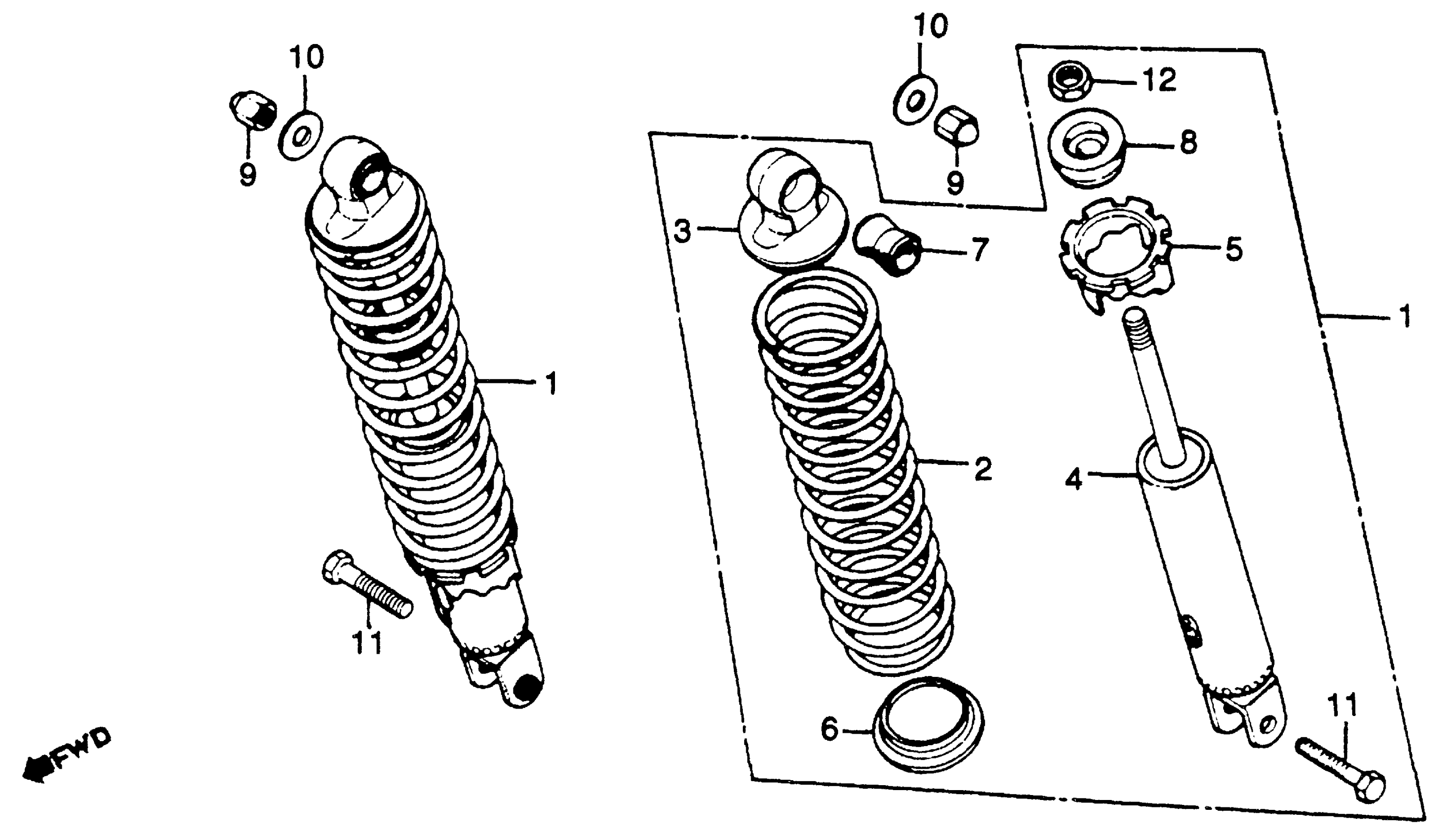

Honda CB750KA (80) 750 FOUR K, JPN, VIN# RC01-2100005 TO RC01-2116490 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) This part replaces 52400-425-003.

52400-MA4-673

Unavailable

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) This part replaces 52400-425-023.

52400-MA4-673

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) This part replaces 52401-425-000.

52401-425-010

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-425-010

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-425-003

Unavailable

4

DAMPER, RR. (NOT AVAILABLE) This part replaces 52410-425-003.

52410-425-013

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-425-013

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-404-003

$18.64

6

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

7

RUBBER, JOINT

52484-292-000

$5.87

8

RUBBER, STOPPER

52517-404-003

$5.70

9

NUT, FLANGE (10MM)

90309-315-000

$5.35

10

WASHER (10.3MM)

90521-292-000

$3.42

11

BOLT, HEX. (10X32) (NOT AVAILABLE)

93200-10032-0A

Unavailable

12

NUT, HEX. (10MM)

94002-10000-0S

$4.06
