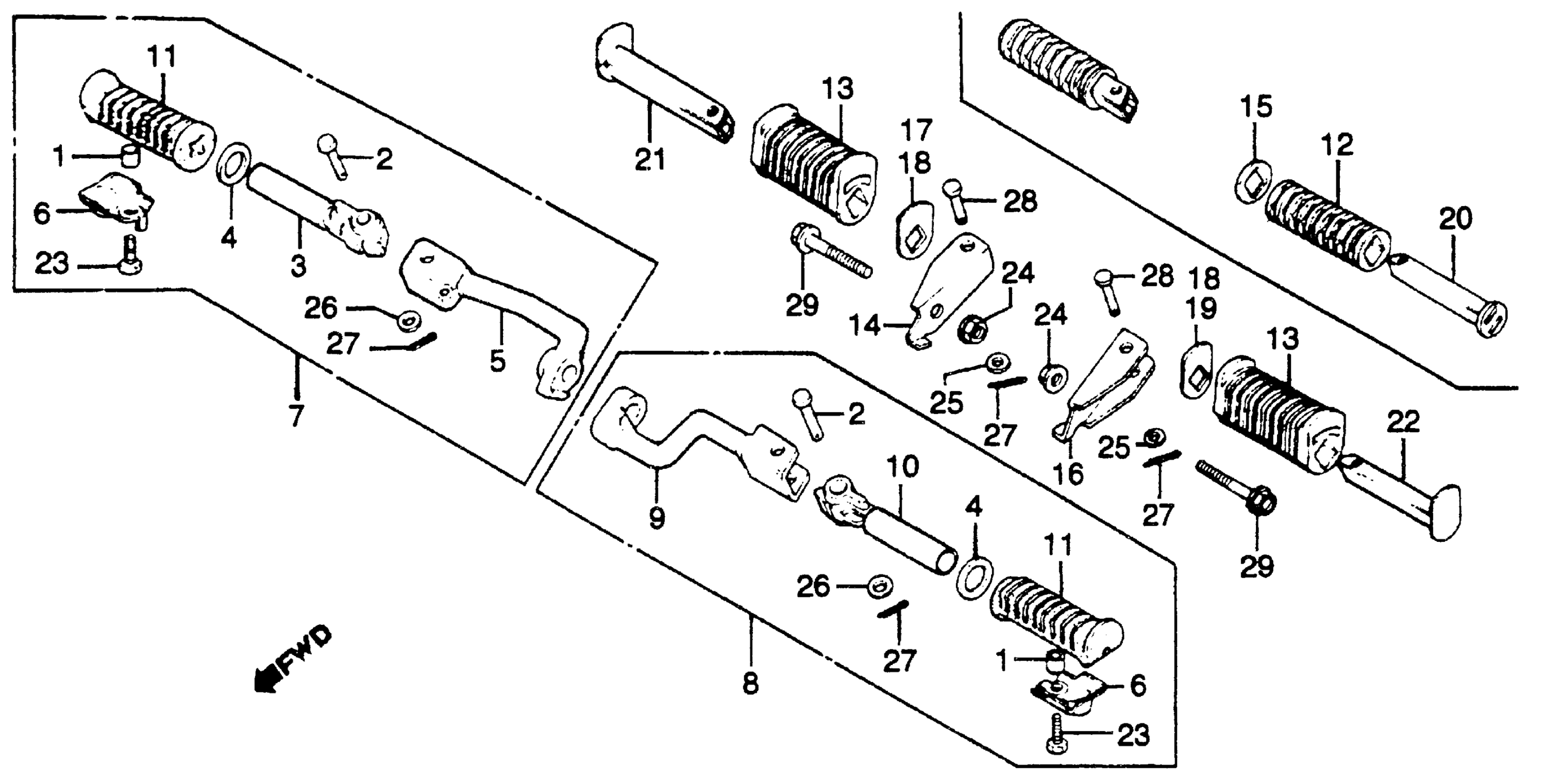

Honda CB750KA (80) 750 FOUR K, JPN, VIN# RC01-2100005 TO RC01-2116490 CB750K STEP 79-82 Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

BAR, R. FOOTPEG

50612-413-000

Unavailable

4

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

5

BAR, R. STEP (NOT AVAILABLE)

50615-425-020

Unavailable

6

STOPPER, STEP RUBBER

50619-425-010

Unavailable

7

STEP ASSY., R. (NOT AVAILABLE) This part replaces 50630-425-020.

50630-425-030

Unavailable

7

STEP ASSY., R. (NOT AVAILABLE)

50630-425-030

Unavailable

8

STEP ASSY., L. (NOT AVAILABLE)

50640-425-020

Unavailable

9

BAR, L. STEP

50641-425-020

Unavailable

10

BAR, L. FOOTPEG (NOT AVAILABLE)

50643-413-000

Unavailable

11

RUBBER, FOOTPEG

50661-425-670

$13.34

12

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

12

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

14

BRACKET, R. PILLION STEP

50711-425-000

Unavailable

15

WASHER, PILLION FOOTPEG

50712-413-000

$3.47

16

BRACKET, L. PILLION FOOTPEG

50712-425-000

Unavailable

20

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

24

NUT, FLANGE (10MM)

94050-10000

$1.59

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

27

PIN, COTTER (1.6X25)

94201-16250

$1.49

28

PIN A, PILLION STEP

95015-81000

$2.21

29

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.51

29

BOLT, FLANGE (10X40)

95701-10040-00

$1.51
