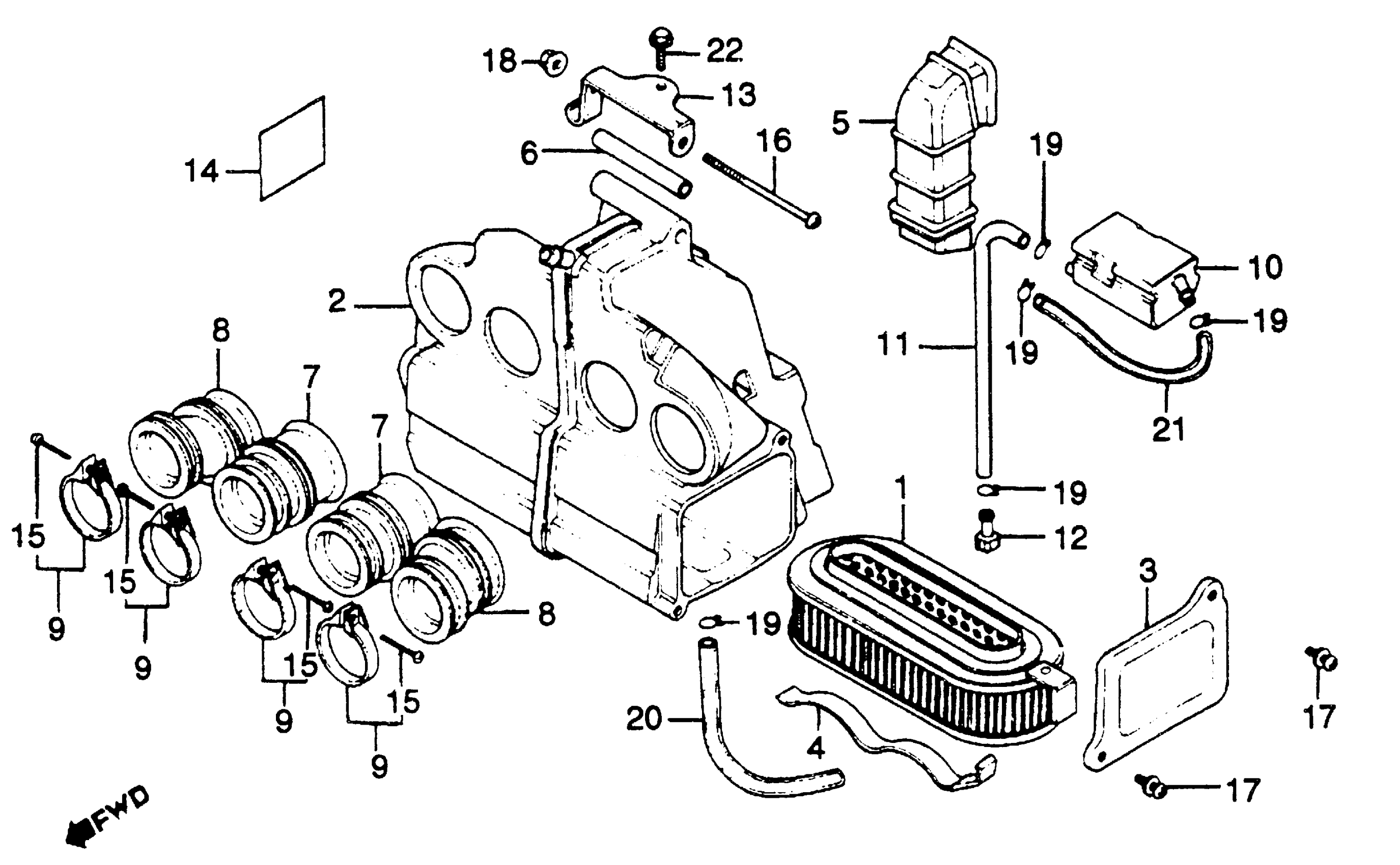

Honda CB750KA (80) 750 FOUR K, JPN, VIN# RC01-2100005 TO RC01-2116490 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17211-425-000

$32.44

HOUSING, AIR CLEANER | Use up to Frame SN 2111048 This part replaces 17213-425-000.

17213-425-020

Unavailable

HOUSING, AIR CLEANER | Use up to Frame SN 2111048 This part replaces 17213-MC3-670.

17213-425-020

Unavailable

HOUSING, AIR CLEANER | Use up to Frame SN 2111048 This part replaces 17213-461-000.

17213-425-020

Unavailable

HOUSING, AIR CLEANER This part replaces 17213-425-010.

17213-425-020

Unavailable

HOUSING, AIR CLEANER

17213-425-020

Unavailable

CAP, AIR CLEANER (NOT AVAILABLE)

17222-425-000

Unavailable

SPRING, ELEMENT SETTING

17223-425-000

Unavailable

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-425-670

Unavailable

COLLAR, AIR CLEANER (NOT AVAILABLE) | Use up to Frame SN 2111048

17248-425-000

Unavailable

TUBE A, AIR CLEANER CONNECTING

17253-425-000

$26.04

TUBE B, AIR CLEANER CONNECTING

17254-425-000

$26.04

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

TANK, STORAGE (NOT AVAILABLE)

17300-425-000

Unavailable

TUBE, DRAIN (NOT AVAILABLE) This part replaces 17356-425-670.

17356-425-671

Unavailable

PLUG, BREATHER TUBE

17370-419-700

$3.74

STAY, AIR CLEANER HANGER (NOT AVAILABLE)

17375-425-000

Unavailable

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-425-770

Unavailable

SCREW, PAN (5X25)

93500-05025-0G

$1.49

SCREW, PAN (6X70) This part replaces 93500-06070.

93500-06070-0A

$1.49

SCREW, PAN (6X70)

93500-06070-0A

$1.49

SCREW-WASHER (5X16)

93891-05016-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (C12)

95002-80000

$1.49

TUBE, VINYL (8X12X3000) (8X12X230)

95003-23003-10M

$14.69

TUBE, VINYL (8X12X3000) (8X12X360)

95003-23003-10M

$14.69

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
