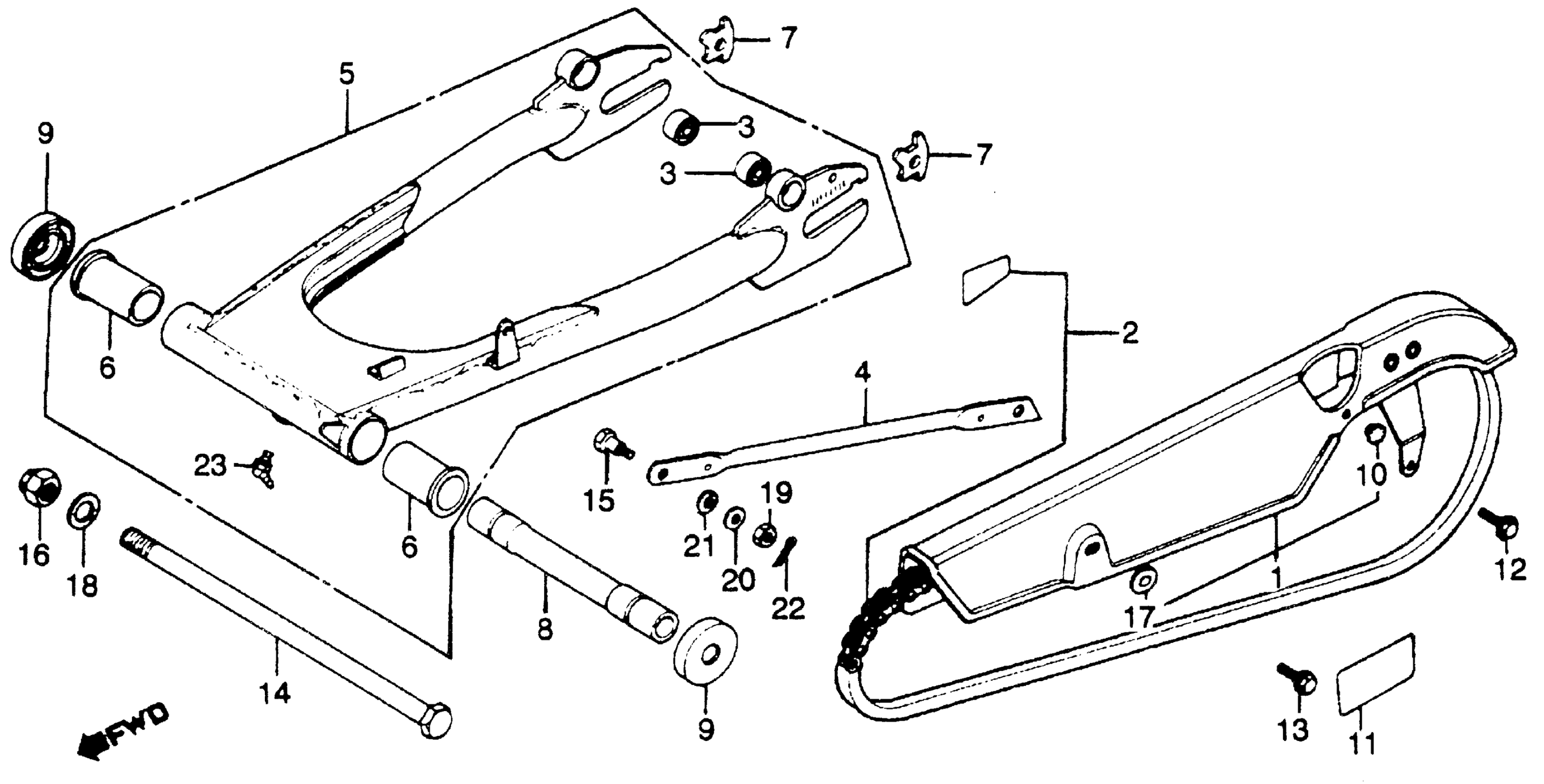

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN This part replaces 40510-425-000.

40510-425-020

Unavailable

1

CASE, DRIVE CHAIN This part replaces 40510-425-010.

40510-425-020

Unavailable

1

CASE, DRIVE CHAIN

40510-425-020

Unavailable

2

CHAIN SET, DRIVE (90L) (NOT AVAILABLE) This part replaces 40535-425-671.

40535-425-721

Unavailable

2

CHAIN SET, DRIVE (90L) (NOT AVAILABLE) This part replaces 40535-425-672.

40535-425-722

Unavailable

2

CHAIN SET, DRIVE (90L) (NOT AVAILABLE)

40535-425-721

Unavailable

2

CHAIN SET, DRIVE (90L) (NOT AVAILABLE)

40535-425-722

Unavailable

3

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

4

ARM, RR. BRAKE STOPPER

43431-MK7-000

Unavailable

4

ARM, RR. BRAKE STOPPER This part replaces 43431-393-000.

43431-MK7-000

Unavailable

5

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-425-010ZA

Unavailable

6

BUSH, SWINGARM PIVOT This part replaces 52108-422-300.

52108-457-300

Unavailable

6

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

7

STOPPER, CHAIN ADJUSTER This part replaces 52136-405-000.

52136-ME1-670

Unavailable

7

STOPPER, CHAIN ADJUSTER

52136-ME1-670

Unavailable

7

STOPPER, CHAIN ADJUSTER This part replaces 52136-425-870.

52136-ME1-670

Unavailable

8

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) | Use up to Frame SN 2013946 This part replaces 52141-422-010.

52141-422-020

Unavailable

8

COLLAR, RR. SWINGARM CENTER | Use up to Frame SN 2013946

52141-422-020

Unavailable

8

COLLAR, RR. SWINGARM CENTER

52141-422-020

Unavailable

9

CAP, DUST SEAL

52144-362-000

Unavailable

10

PLUG, HOLE (10MM) This part replaces 80102-355-670.

91601-SR3-000

Unavailable

10

PLUG

91601-SR3-000

Unavailable

11

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-425-670

Unavailable

12

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

12

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

13

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

13

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

14

BOLT, SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-425-000.

90121-425-870

Unavailable

14

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-425-870

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

16

NUT, SELF-LOCK (14MM) (NOT AVAILABLE)

90354-422-000

Unavailable

17

WASHER (6X9)

90513-405-000

$2.09

18

WASHER (14MM) (NOT AVAILABLE)

90600-422-000

Unavailable

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

WASHER, SPRING (8MM)

94111-10000

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

22

PIN, COTTER (2.0X22)

94201-20220

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

22

PIN, COTTER (2.0X35)

94201-20350

$1.49

22

PIN, COTTER (2.0X22)

94201-29220

$1.49

23

FITTING, GREASE (C.76)

96201-60000

$2.87
