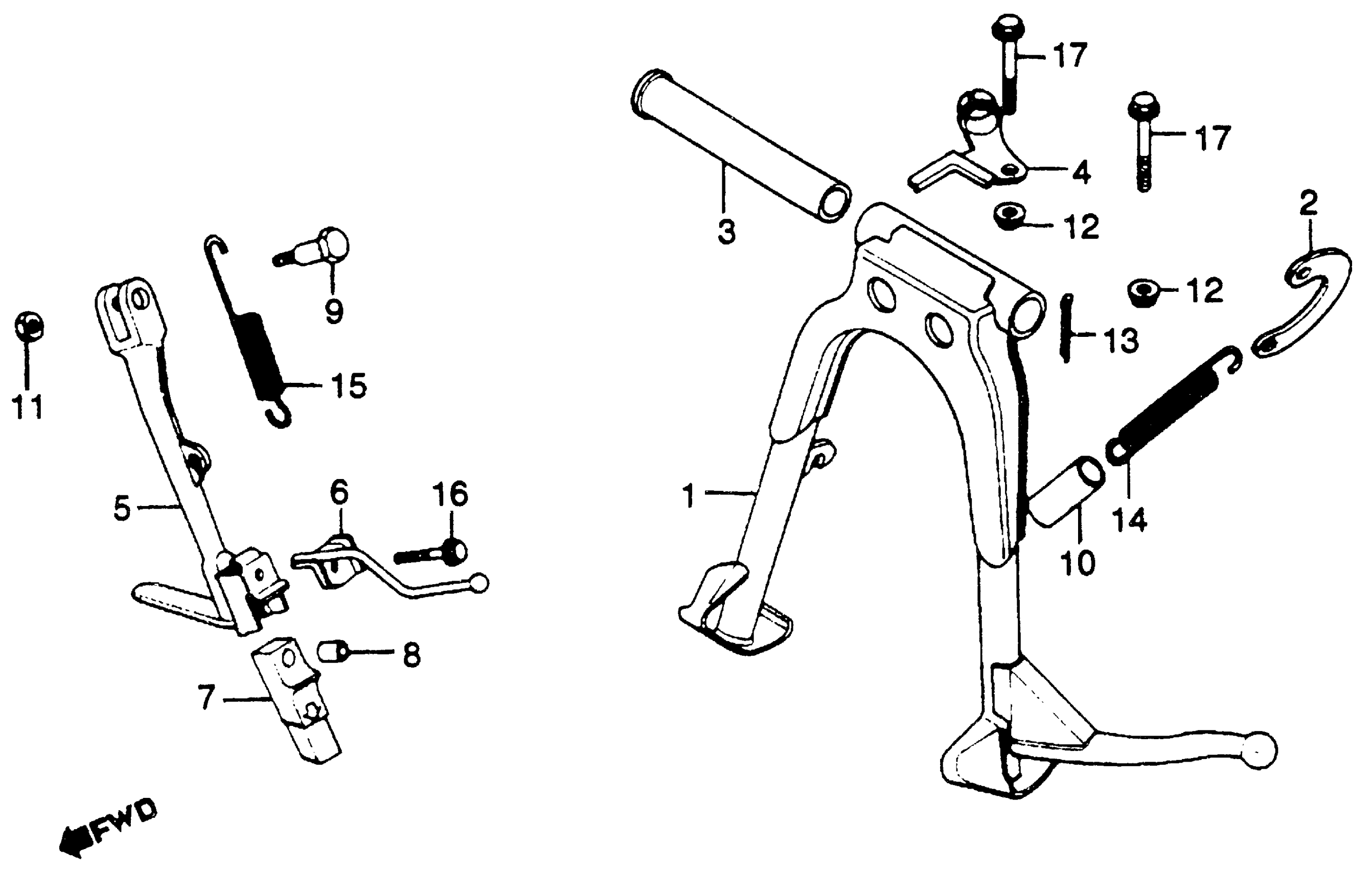

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 STAND Diagram

#

Description
Price

1

STAND, MAIN (NOT AVAILABLE) This part replaces 50500-425-010.

50500-425-020

Unavailable

1

STAND, MAIN (NOT AVAILABLE)

50500-425-020

Unavailable

2

PLATE, MAIN STAND SPRING

50523-425-000

Unavailable

3

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

4

GUIDE, DRAIN TUBE (NOT AVAILABLE)

50527-425-000

Unavailable

5

BAR, SIDE STAND (NOT AVAILABLE) This part replaces 50530-425-000.

50530-425-010

Unavailable

5

BAR, SIDE STAND (NOT AVAILABLE)

50530-425-010

Unavailable

6

BAR, SIDE STAND (NOT AVAILABLE)

50534-425-000

Unavailable

7

RUBBER, STAND

50548-356-700

$10.50

8

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

9

BOLT, SIDE STAND PIVOT (NOT AVAILABLE) This part replaces 90108-425-000.

90108-ME1-670

Unavailable

10

COVER, MAIN STAND SPRING

90125-410-000

Unavailable

11

NUT, HEX. (10MM)

94031-10000

$1.49

12

NUT, FLANGE (8MM)

94050-08000

$1.49

13

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

13

PIN, COTTER (2.5MM)

94201-25300

$1.49

14

SPRING G, MAIN STAND

95014-71702

$4.08

15

SPRING D, SIDE STAND

95014-72402

$2.92

16

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

16

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

17

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

17

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
