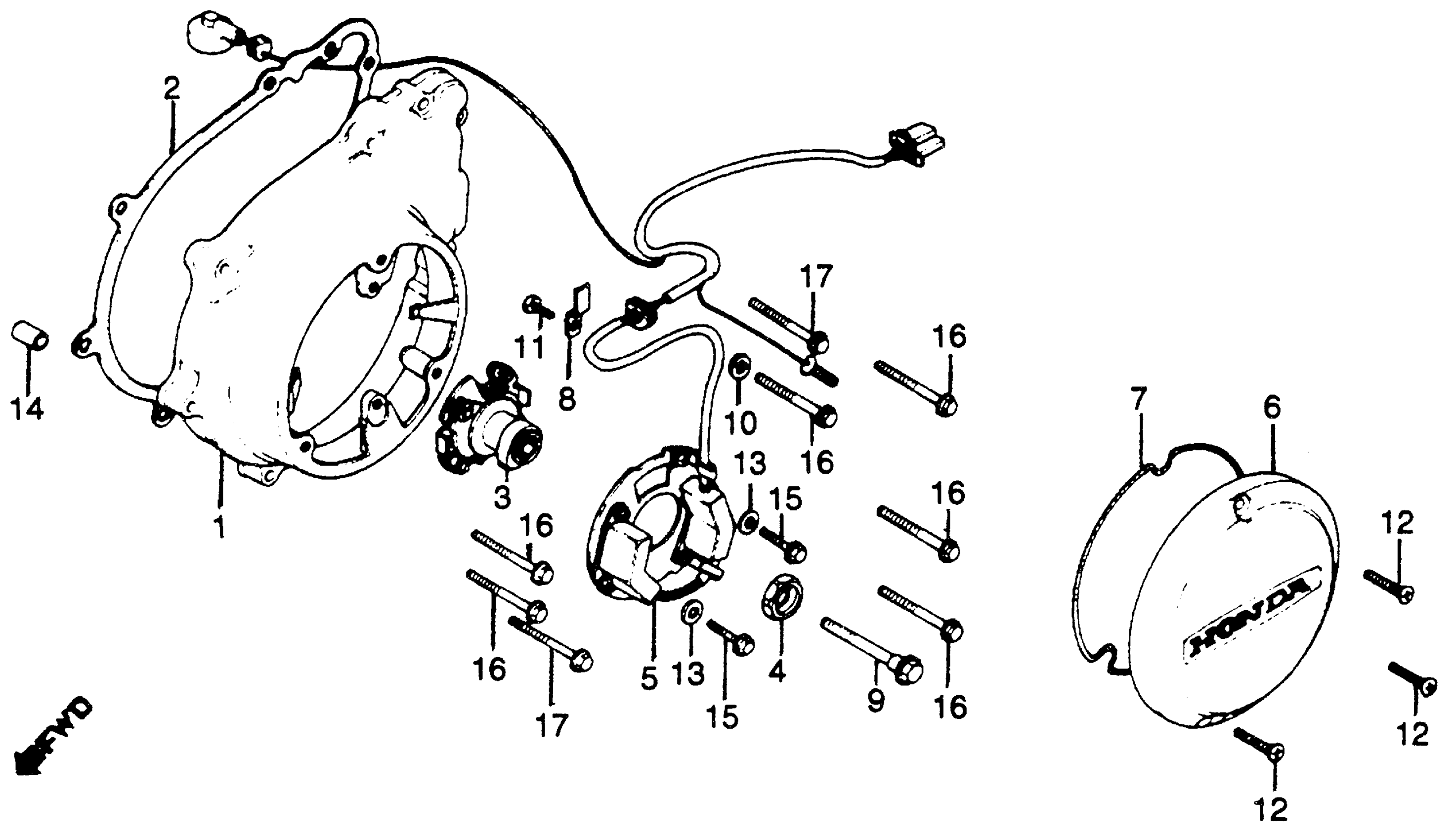

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 LEFT CRANKCASE COVER + SPARK ADVANCER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-425-000

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-425-000.

11395-425-306

$14.62

2

GASKET, L. CRANKCASE COVER

11395-425-306

$14.62

3

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) This part replaces 30220-425-164.

30220-425-174

Unavailable

3

ADVANCER ASSY., SPARK (TOYO)

30220-425-174

Unavailable

4

BOSS, TIMING (NOT AVAILABLE)

30228-425-010

Unavailable

5

GENERATOR, PULSE | Use up to Engine SN 2002806 This part replaces 30300-425-164.

30300-461-405

Unavailable

5

GENERATOR, PULSE | Use up to Engine SN 2002806 This part replaces 30300-425-174.

30300-461-405

Unavailable

5

GENERATOR, PULSE This part replaces 30300-425-174.

30300-461-405

Unavailable

5

GENERATOR, PULSE | Use up to Engine SN 2002806 This part replaces 30300-438-154.

30300-461-405

Unavailable

5

GENERATOR, PULSE This part replaces 30300-438-154.

30300-461-405

Unavailable

5

GENERATOR, PULSE This part replaces 30300-MA3-154.

30300-461-405

Unavailable

5

GENERATOR, PULSE | Use up to Engine SN 2002806 This part replaces 30300-MA3-154.

30300-461-405

Unavailable

5

GENERATOR, PULSE

30300-461-405

Unavailable

5

GENERATOR, PULSE | Use up to Engine SN 2002806

30300-461-405

Unavailable

6

COVER, POINTS This part replaces 30371-425-000.

30371-425-010

Unavailable

6

COVER, POINTS

30371-425-010

Unavailable

7

GASKET, POINTS COVER

30372-425-000

$8.09

8

PLATE, PULSER WIRE SETTING (NOT AVAILABLE)

32116-425-000

Unavailable

9

BOLT, FLANGE (8X62) (NOT AVAILABLE) This part replaces 90052-425-000.

90052-425-010

Unavailable

9

BOLT, FLANGE (8X62) (NOT AVAILABLE)

90052-425-010

Unavailable

11

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

11

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

12

SCREW, OVAL (5X25)

93700-05025-0A

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM)

94101-06800

$1.49

14

PIN A, DOWEL (8X14)

94301-08140

$2.25

15

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

15

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

16

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

16

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

17

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

17

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
