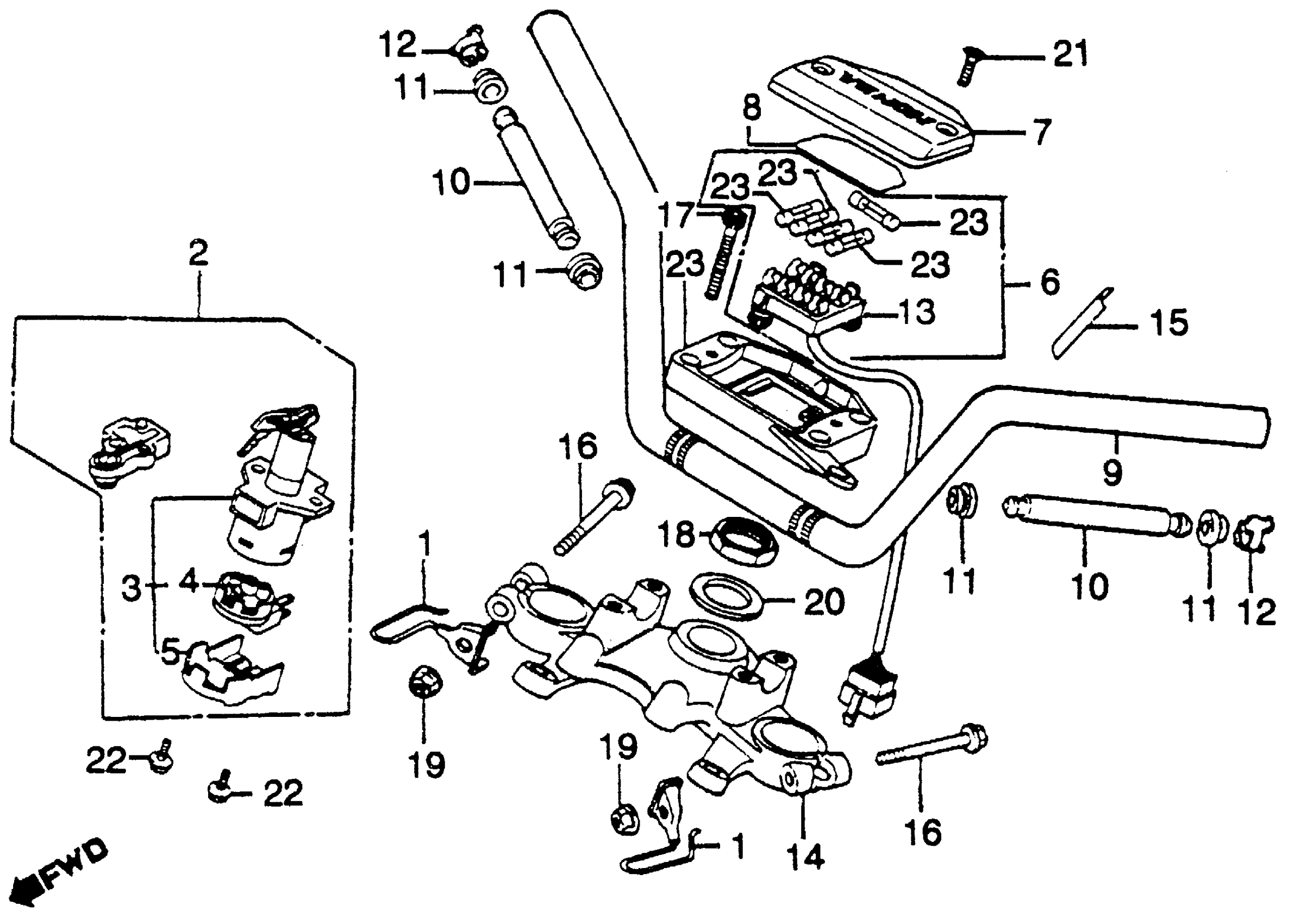

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

GUIDE, CABLE (NOT AVAILABLE)

17908-425-000

Unavailable

2

LOCK SET (NOT AVAILABLE) This part replaces 35010-393-771.

35010-393-772

Unavailable

2

LOCK SET (NOT AVAILABLE)

35010-393-772

Unavailable

3

SWITCH ASSY., COMBINATION & LOCK

35100-422-017

Unavailable

4

BASE, CONTACT

35101-422-007

Unavailable

5

COVER, SWITCH

35102-431-007

Unavailable

6

PLATE ASSY., FUSE This part replaces 38200-425-005.

38200-449-505

Unavailable

7

COVER, FUSE PLATE (NOT AVAILABLE)

38210-425-000

Unavailable

8

LABEL, FUSE (NOT AVAILABLE)

38215-425-000

Unavailable

9

HANDLEBAR (NOT AVAILABLE)

53100-425-010

Unavailable

10

WEIGHT, HANDLEBAR (NOT AVAILABLE)

53105-425-000

Unavailable

11

RUBBER, HANDLEBAR WEIGHT (NOT AVAILABLE)

53107-425-000

Unavailable

12

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

12

RING, HANDLE WEIGHT SNAP This part replaces 53108-415-004.

53108-MK4-000

Unavailable

13

HOLDER, HANDLE (UPPER) This part replaces 53131-425-000.

53131-425-010

Unavailable

13

HOLDER, HANDLE (UPPER)

53131-425-010

Unavailable

14

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-425-000

Unavailable

16

BOLT, FLANGE (7X54)

90155-369-000

$6.01

17

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

18

NUT, STEERING STEM

90304-425-000

$9.69

19

NUT, FLANGE (7MM)

90355-369-000

$4.94

20

WASHER, STEERING STEM

90503-425-000

$4.21

21

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

21

SCREW, OVAL (5X20) This part replaces 93700-05020-1G.

93700-05020-0G

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

FUSE B (10A)

98200-21000

$1.49
