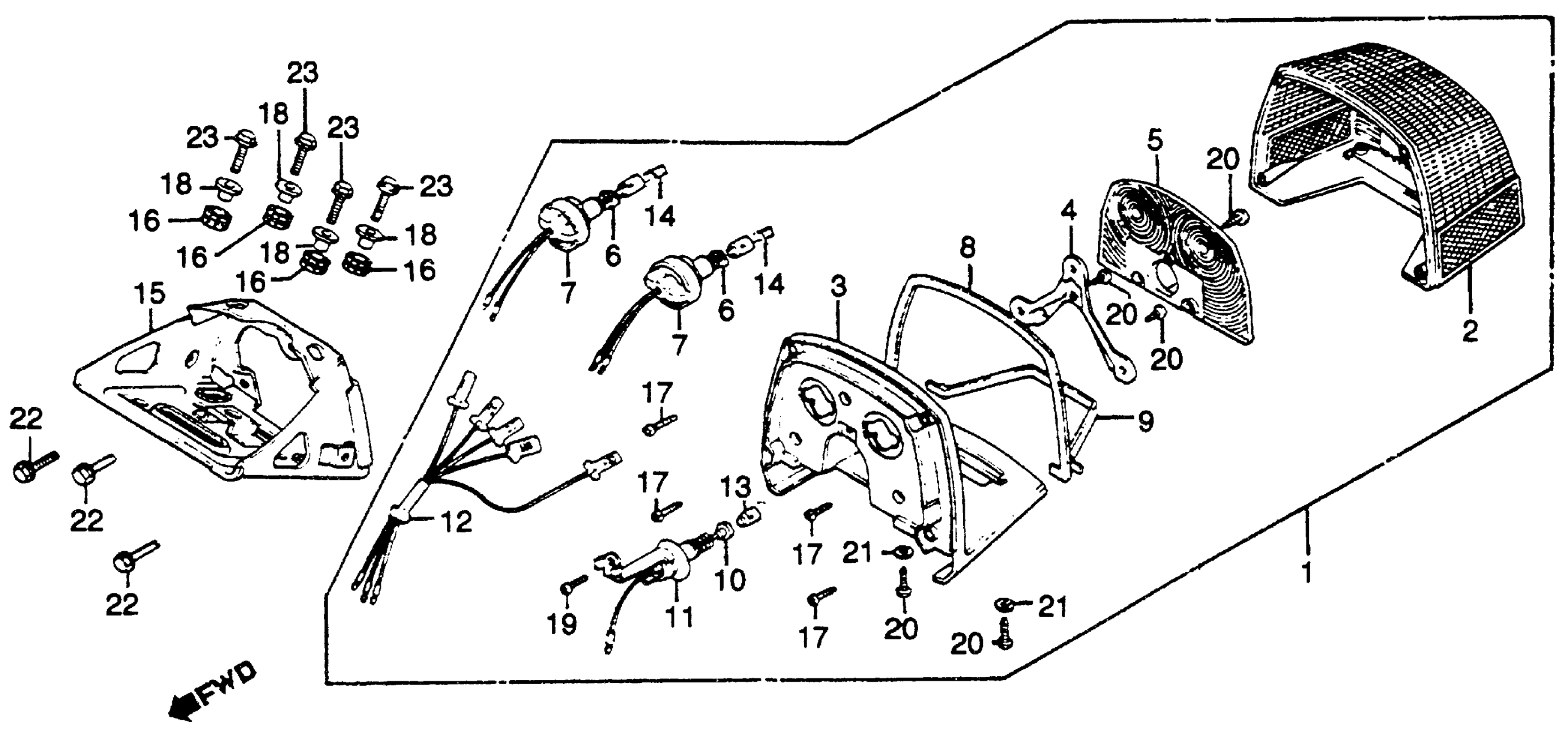

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 CB750K TAILLILGHT 79 Diagram

#

Description
Price

1

TAILLIGHT ASSY. (STANLEY) (NOT AVAILABLE)

33700-415-672

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE)

33702-415-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-415-013

Unavailable

4

STAY, TAILLIGHT (NOT AVAILABLE)

33704-415-003

Unavailable

5

LENS, TAILLIGHT SUB (NOT AVAILABLE)

33705-415-671

Unavailable

6

CABLE, TAILLIGHT

33708-147-003

Unavailable

6

CABLE, TAILLIGHT This part replaces 33708-371-601.

33708-147-003

Unavailable

7

SOCKET, STOP & TAILLIGHT (NOT AVAILABLE)

33710-415-003

Unavailable

8

GASKET A, TAILLIGHT LENS (NOT AVAILABLE)

33711-415-003

Unavailable

9

GASKET B, TAILLIGHT LENS (NOT AVAILABLE)

33712-415-003

Unavailable

10

WIRE, LICENSE LIGHT

33713-415-003

Unavailable

11

SOCKET, LICENSE LIGHT (NOT AVAILABLE)

33715-415-003

Unavailable

12

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33718-415-003

Unavailable

13

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

13

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

14

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

14

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

15

BRACKET, TAILLIGHT (NOT AVAILABLE)

84700-425-000

Unavailable

16

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

17

SCREW, TAPPING (4X18) (NOT AVAILABLE)

90111-415-003

Unavailable

18

COLLAR (6.2X12)

90501-425-000

$4.69

19

SCREW, PAN (4X10)

93500-04010-0A

$1.49

20

SCREW, TAPPING (4X12)

93901-34310

$1.49

21

WASHER, PLAIN (4MM)

94101-04000

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

23

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
