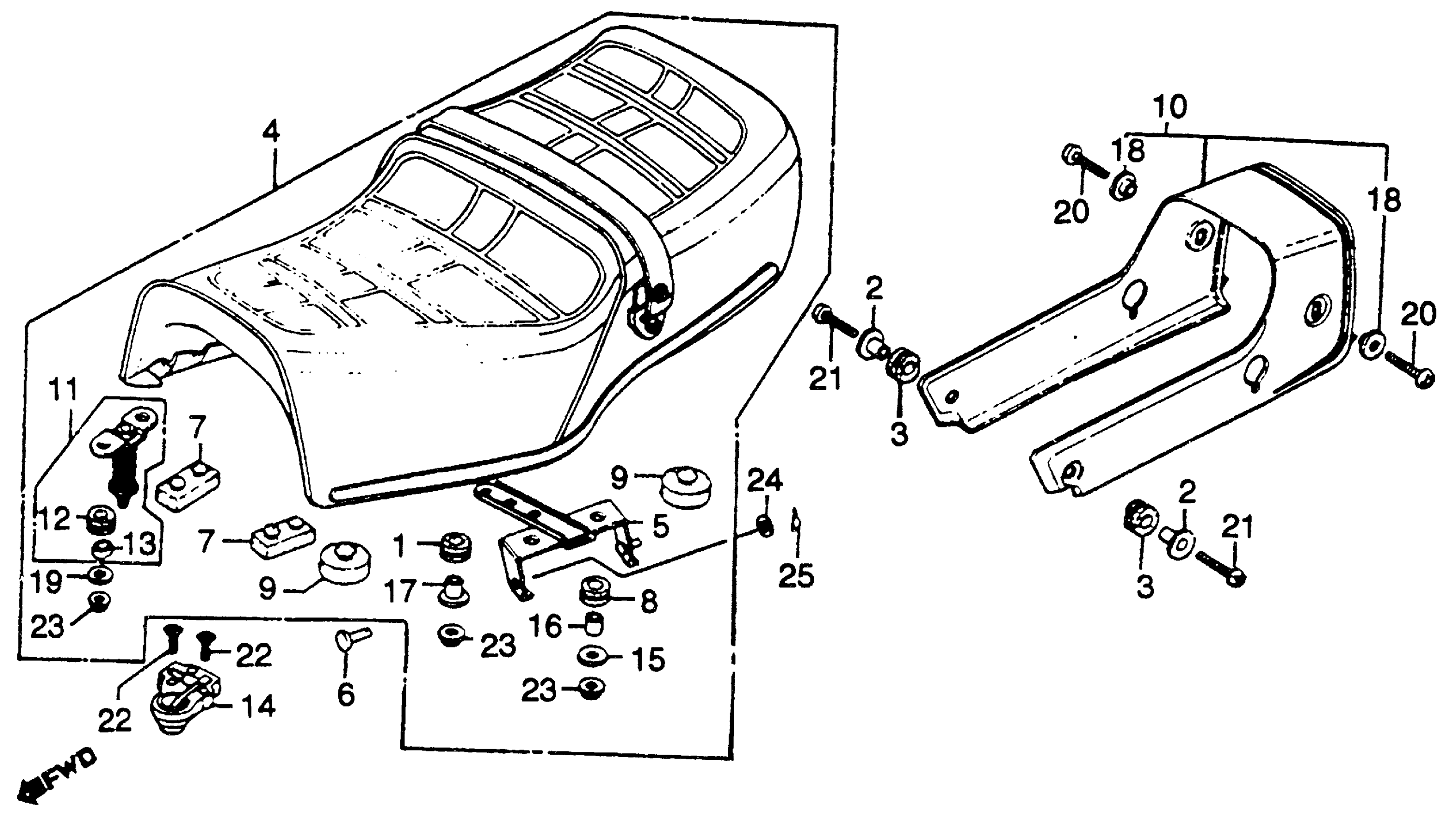

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 CB750K SEAT 79 Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

COLLAR (6.3X13)

50324-425-010

$5.05

3

RUBBER B, BATTERY BOX

50329-425-000

$2.92

4

SEAT (NOT AVAILABLE)

77200-425-010

Unavailable

5

HINGE, SEAT (NOT AVAILABLE)

77202-425-010

Unavailable

6

PIN, SEAT HINGE

77203-425-000

$3.80

7

RUBBER, SEAT SETTING

77204-312-000

$5.05

8

RUBBER A, SEAT MOUNT (NOT AVAILABLE)

77206-375-000

Unavailable

9

RUBBER, SEAT (NOT AVAILABLE)

77206-425-000

Unavailable

10

COVER, RR. SEAT *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

77215-425-000ZA

Unavailable

10

COVER, RR. SEAT *YR106CU* (CANDY BAYARD BROWN-U) (NOT AVAILABLE)

77215-425-000ZB

Unavailable

10

COVER, RR. SEAT *NH1* (BLACK) (NOT AVAILABLE)

77215-425-000ZD

Unavailable

11

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

11

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

11

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

12

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

12

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

12

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

13

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

13

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

13

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

14

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

15

WASHER, SEAT SETTING

77302-124-000

$3.23

16

COLLAR, NUMBER BRACKET

84706-310-000

Unavailable

17

COLLAR (6.2X12)

90501-425-000

$4.69

18

WASHER, RR. COVER

90506-425-000

$2.89

19

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

19

WASHER, PLAIN (6MM)

94103-06800

$1.49

20

SCREW, PAN (6X12)

93500-06012-0G

$1.49

21

SCREW, PAN (6X20)

93500-06020-0G

$1.49

22

SCREW, FLAT (6X16)

93600-06016-0G

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

PIN, LOCK (6MM)

94251-06000

$1.49
