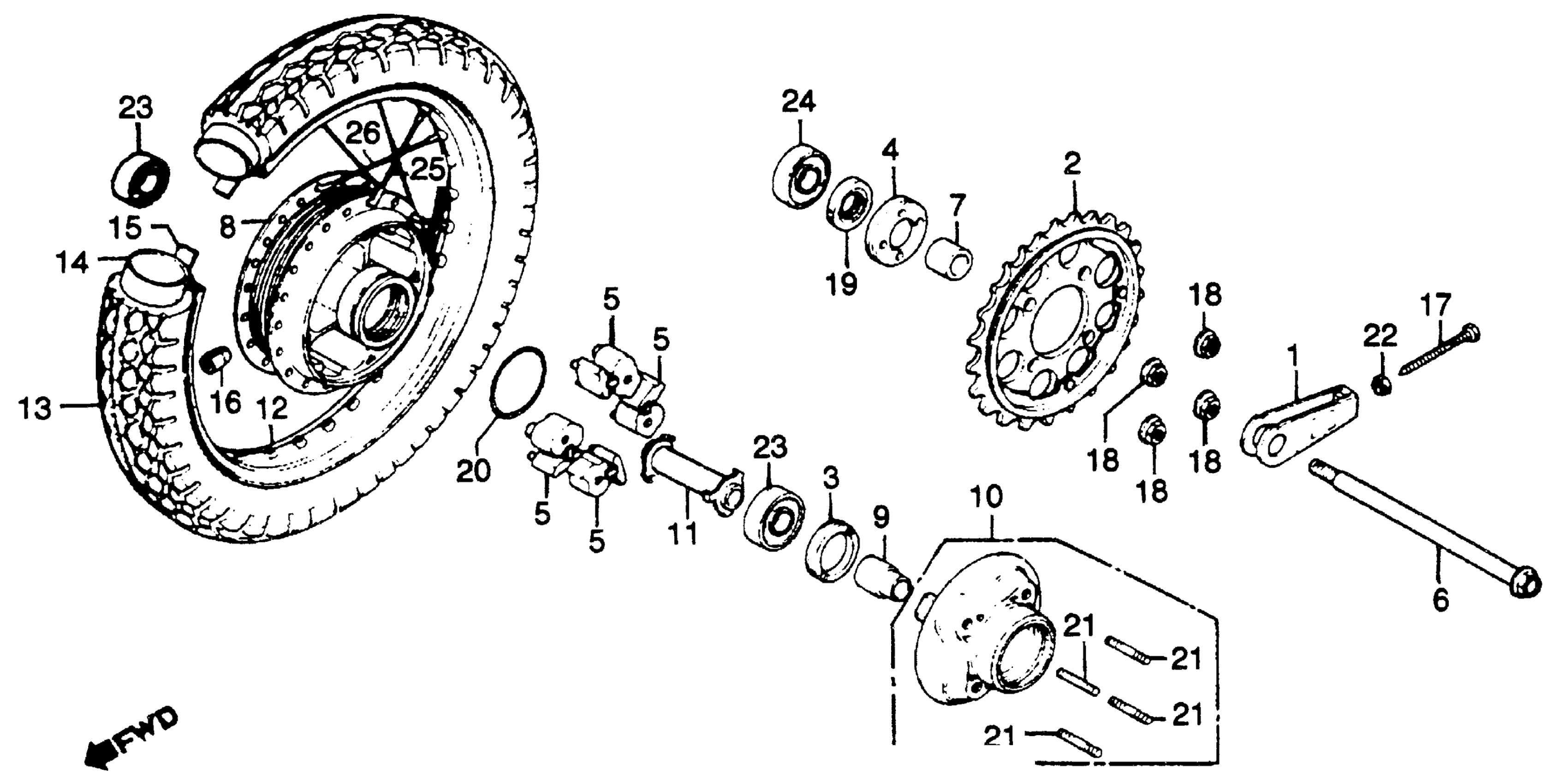

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 CB750K REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-425-000

Unavailable

2

SPROCKET, FINAL DRIVEN (38T)

41200-425-670

Unavailable

3

RETAINER, RR. WHEEL BEARING

41231-300-020

Unavailable

4

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-422-000

Unavailable

5

DAMPER, RR. WHEEL

41241-300-050

$19.38

6

AXLE, RR. WHEEL (NOT AVAILABLE) This part replaces 42301-393-000.

42301-425-870

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-425-870

Unavailable

7

COLLAR, RR. WHEEL SIDE This part replaces 42311-392-000.

42311-425-870

Unavailable

7

COLLAR, RR. WHEEL SIDE

42311-425-870

Unavailable

8

HUB, RR. WHEEL (NOT AVAILABLE)

42601-425-670

Unavailable

9

SLEEVE, RR. AXLE

42605-393-000

Unavailable

10

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-425-000

Unavailable

11

COLLAR, RR. DISTANCE

42620-ME1-405

Unavailable

11

COLLAR, RR. DISTANCE This part replaces 42620-300-010.

42620-ME1-405

Unavailable

12

RIM, RR. WHEEL (DAIDO)

42701-300-013

Unavailable

13

TIRE ASSY., RR. (4.25V18) (4PR) (DUNLOP) (NOT AVAILABLE)

42710-MB7-672

Unavailable

13

TIRE ASSY., RR. (4.25V18) (4PR) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-469-671.

42710-MB7-672

Unavailable

13

TIRE ASSY., RR. (4.25V18) (4PR) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-469-672.

42710-MB7-672

Unavailable

13

TIRE ASSY., RR. (4.25V18) (4PR) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-469-673.

42710-MB7-672

Unavailable

13

TIRE, RR. (4.25H18) (4PR) (BS) (NOT AVAILABLE)

42711-425-671

Unavailable

13

TIRE ASSY., RR. (4.25V18) (4PR) (DUNLOP) (NOT AVAILABLE) This part replaces 42711-425-672.

42710-MB7-672

Unavailable

14

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-300-004.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

14

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

15

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)

42713-300-003

$5.69

15

FLAP, TIRE (2.15-18) (DUNLOP)

42713-300-004

$6.14

16

BALANCER, WHEEL (20G)

44606-283-000

$8.89

16

BALANCER, WHEEL (15G)

44607-283-000

$8.08

16

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

16

BALANCER, WHEEL (5G)

44609-283-000

$3.93

17

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

18

NUT, FLANGE (12MM)

90309-375-003

$8.61

19

OIL SEAL (34X55X9)

90753-283-000

$16.11

20

O-RING (68X2.6)

91258-300-013

$5.84

21

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

24

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

25

SPOKE BS (8X142) (NOT AVAILABLE)

97C07-69124-R0

Unavailable

26

SPOKE (8X142.5)

97313-69125-R0

$4.16
