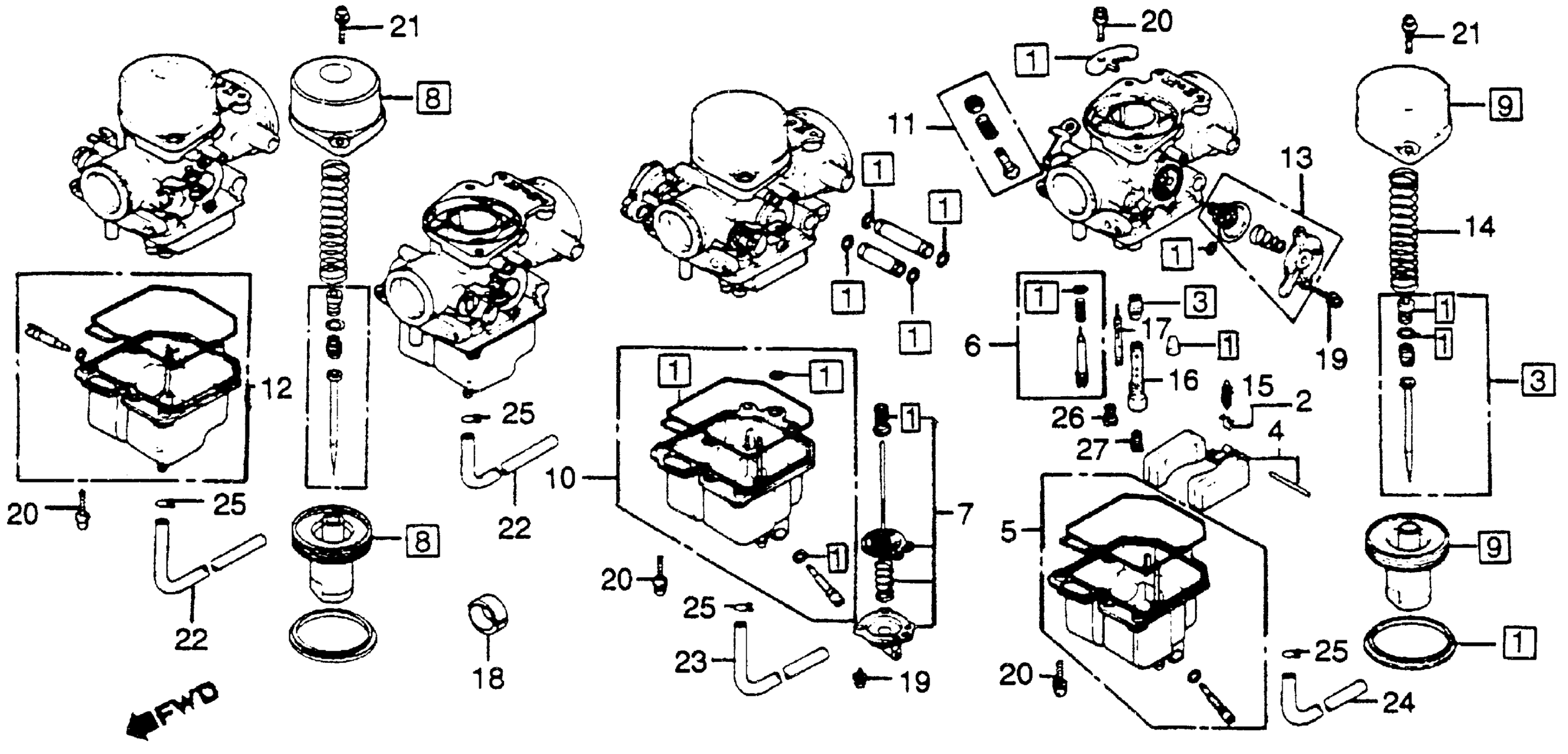

Honda CB750KA (79) LIMITED EDITION, JPN, VIN# RC01-2000001 TO RC01-2025239 CARB. COMPONENT PARTS Diagram

#

Description
Price

1

GASKET SET

16010-425-305

$57.50

1

GASKET SET This part replaces 16010-425-671.

16010-425-305

$57.50

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET

16012-425-671

Unavailable

4

FLOAT SET

16013-679-005

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

5

CHAMBER SET, FLOAT

16015-425-871

Unavailable

6

SCREW SET A

16016-410-601

Unavailable

7

DIAPHRAGM SET, PUMP

16021-679-005

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-413-014.

16022-425-871

Unavailable

9

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-413-014.

16022-425-871

Unavailable

10

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-425-671.

16023-425-871

Unavailable

11

SCREW SET C

16029-PC6-005

Unavailable

11

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

12

CHAMBER SET C, FLOAT (NOT AVAILABLE) This part replaces 16045-425-671.

16045-425-871

Unavailable

13

VALVE SET, AIR CUT This part replaces 16048-425-671.

16048-428-305

Unavailable

13

VALVE SET, AIR CUT

16048-428-305

Unavailable

14

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-443-701

Unavailable

16

HOLDER, NEEDLE JET

16165-422-004

Unavailable

16

HOLDER, NEEDLE JET This part replaces 16165-425-671.

16165-422-004

Unavailable

17

NOZZLE, MAIN

16166-425-671

Unavailable

18

BAND, RUBBER (NOT AVAILABLE)

16291-300-300

Unavailable

19

SCREW-WASHER (4X12)

93892-04012-00

$1.49

20

SCREW-WASHER (4X16)

93892-04016-00

$1.49

21

SCREW-WASHER (5X16)

93892-05016-00

$1.49

22

BULK HOSE, FUEL (3.5X3000) (3.5X480)

95001-35003-60M

$20.85

23

BULK HOSE, FUEL (3.5X3000) (3.5X550)

95001-35003-60M

$20.85

24

BULK HOSE, FUEL (3.5X3000) (3.5X610)

95001-35003-60M

$20.85

25

CLIP, TUBE (B7)

95002-02070

$1.80

26

JET, PRIMARY MAIN (#68)

99101-393-0680

$11.52

27

JET, MAIN (#102)

99101-GHB-1020

$6.40

27

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.40

27

JET, MAIN (#102) This part replaces 99102-393-1020.

99101-GHB-1020

$6.40
