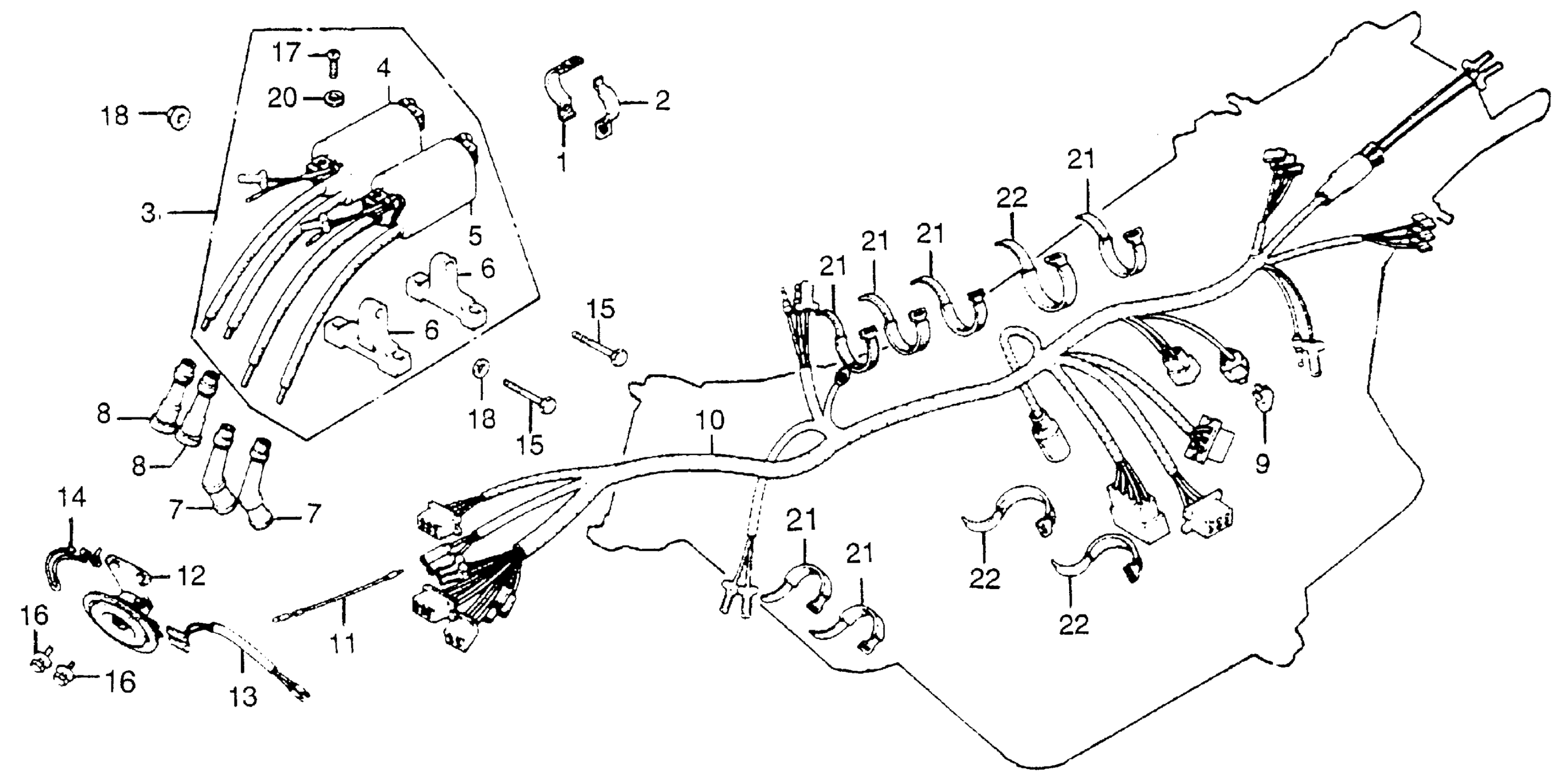

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

BAND A, IGNITION COIL SETTING (NOT AVAILABLE)

30151-300-000

Unavailable

2

BAND B, IGNITION COIL SETTING (NOT AVAILABLE)

30152-300-000

Unavailable

3

COIL ASSY., IGNITION (TOYO)

30500-300-013

$316.46

4

COIL, R. IGNITION (TOYO)

30501-300-003

Unavailable

4

COIL, R. IGNITION (TOYO) This part replaces 30501-300-013.

30501-300-003

Unavailable

5

COIL, L. IGNITION (TOYO)

30502-300-003

Unavailable

6

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

7

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

7

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

7

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

8

CAP ASSY. This part replaces 30700-MW3-000.

30700-MW3-003

$14.34

8

CAP ASSY. This part replaces 30710-405-153.

30700-MW3-003

$14.34

8

CAP ASSY. This part replaces 30710-405-163.

30700-MW3-003

$14.34

9

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

9

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

10

WIRE HARNESS (NOT AVAILABLE)

32100-405-611

Unavailable

11

CABLE, SUB (BROWN/BLUE) (NOT AVAILABLE)

32105-404-670

Unavailable

12

HORN ASSY. (NOT AVAILABLE) This part replaces 38110-392-621.

38100-392-621

Unavailable

13

SUB-WIRE, HORN (NOT AVAILABLE)

38105-369-000

Unavailable

14

CLAMP, TACHOMETER CABLE

50462-323-010

Unavailable

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

BOLT-WASHER (6X16)

93401-06016-00

$1.55

16

BOLT-WASHER (6X16) This part replaces 93411-06016-00.

93401-06016-00

$1.55

16

BOLT-WASHER (6X16) This part replaces 93481-06016-00.

93401-06016-00

$1.55

17

SCREW, PAN (5X20)

93500-05020-0A

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49

21

BAND B1, CABLE

32161-404-000

$2.23

21

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

22

BAND A2, CABLE

95014-61200

$2.33
