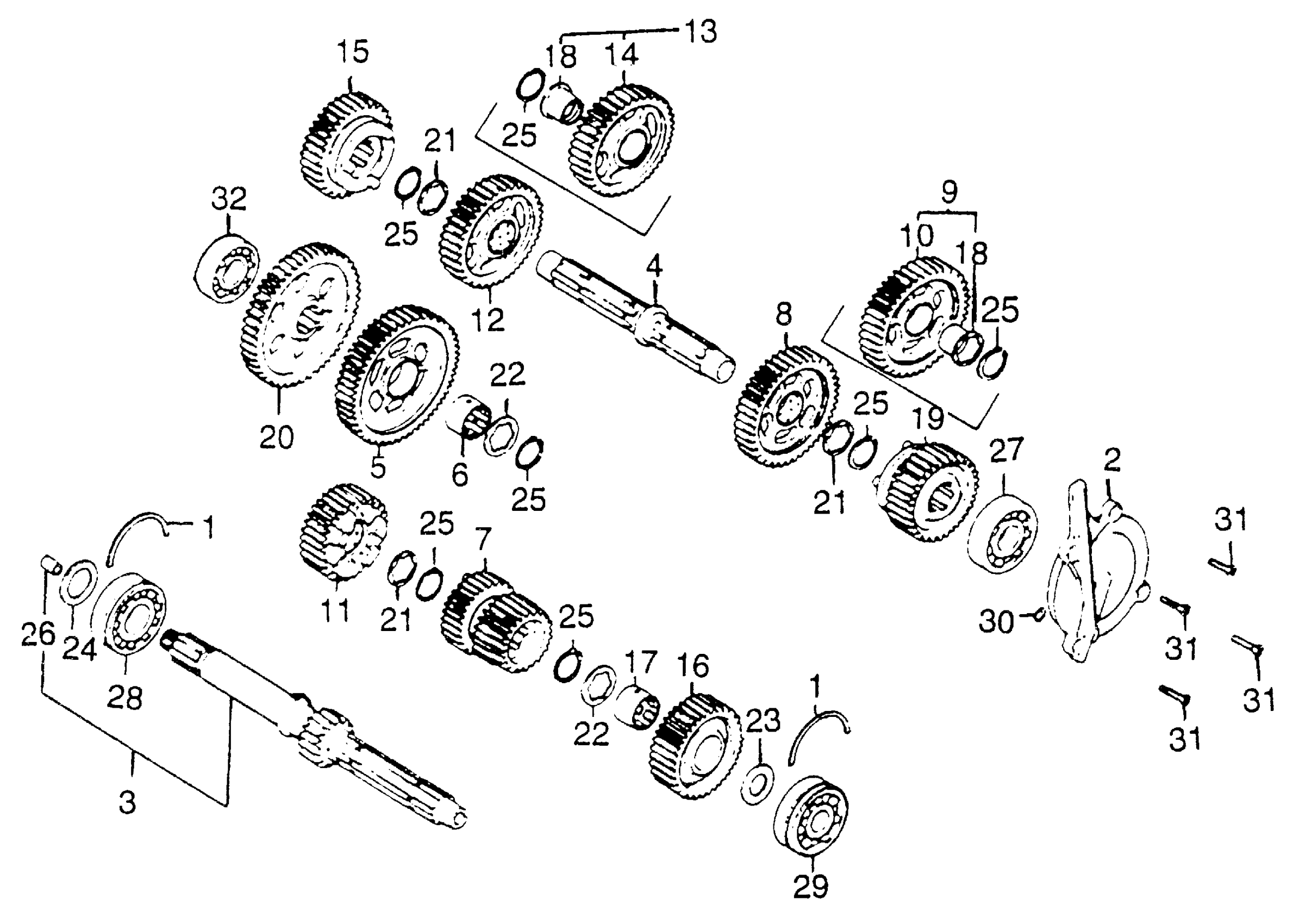

Honda CB750KA (78) 750 FOUR K, JPN, VIN# CB750-2800001 TRANSMISSION Diagram

#

Description
Price

1

RING A, BALL BEARING SETTING (NOT AVAILABLE)

13495-300-000

Unavailable

2

HOLDER, COUNTERSHAFT BEARING (NOT AVAILABLE)

23150-300-010

Unavailable

3

MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)

23210-392-000

Unavailable

4

COUNTERSHAFT, TRANSMISSION

23220-371-000

Unavailable

5

GEAR, COUNTERSHAFT LOW (45T) (NOT AVAILABLE)

23421-300-050

Unavailable

6

BUSH, SPLINE (29MM) (NOT AVAILABLE)

23425-392-000

Unavailable

7

GEAR, MAINSHAFT SECOND & THIRD (24T & 27T)

23431-392-000

Unavailable

10

GEAR, COUNTERSHAFT SECOND (41T)

23441-410-000

Unavailable

11

GEAR, MAINSHAFT FOURTH (30T)

23450-392-000

Unavailable

14

GEAR, COUNTERSHAFT THIRD (36T)

23461-410-000

Unavailable

15

GEAR, COUNTERSHAFT FOURTH (34T)

23471-300-010

Unavailable

16

GEAR, MAINSHAFT TOP (33T)

23481-300-020

Unavailable

17

BUSH, SPLINE (28MM) (NOT AVAILABLE)

23485-392-000

Unavailable

18

BUSH (28MM) (NOT AVAILABLE)

23485-410-003

Unavailable

18

BUSH (28MM) (NOT AVAILABLE) | Use up to Engine SN 3018482 This part replaces 23485-410-010.

23485-410-003

Unavailable

19

GEAR, COUNTERSHAFT TOP (32T)

23491-392-000

Unavailable

20

GEAR, FINAL DRIVE (43T) (NOT AVAILABLE)

23501-392-000

Unavailable

21

WASHER, THRUST (25MM)

90451-MB2-000

Unavailable

21

WASHER, THRUST (25MM) This part replaces 90451-371-000.

90451-MB2-000

Unavailable

22

WASHER, THRUST (25X34)

90452-371-000

$4.82

23

WASHER, THRUST (20MM)

90458-292-000

$3.54

24

WASHER A, THRUST (25MM) (NOT AVAILABLE)

90458-506-810

Unavailable

25

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

26

PLUG, SPECIAL (10X10) (NOT AVAILABLE)

90809-300-300

Unavailable

27

BEARING, RADIAL BALL (6304) This part replaces 91001-035-000.

96100-63040-00

$14.40

27

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

27

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

28

BEARING This part replaces 91002-300-004.

91003-612-004

Unavailable

28

BEARING This part replaces 91002-300-008.

91003-612-004

Unavailable

29

BEARING, BALL (6304HS)

91003-235-000

Unavailable

30

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

30

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

30

O-RING (4.9X2.5)

91301-426-010

$3.60

31

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

31

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

32

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

32

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
